Xinchen Power D20B 126hp 2L China V Diesel Engine
EXW
Export quote
Xinchen Power D Series engine
Main model photos
8 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Xinchen Power D20B 126hp 2L China V Diesel Engine | 126hp / China V | ||
| Xinchen Power ZD25T5 140hp 2.5L China V Diesel Engine | 140hp / China V | ||
| Xinchen Power ZD22TE 102 hp 2.18L China VI Diesel Engine | 102hp / China VI | ||
| Xinchen Power DK5 150 hp 3L China VI diesel engine | 150hp / China VI | ||
| Xinchen Power DK4B 116 hp 2.5L China VI diesel engine | 116hp / China VI |
Xinchen Power ZD25T5 140hp 2.5L China V Diesel Engine
EXW
Export quote

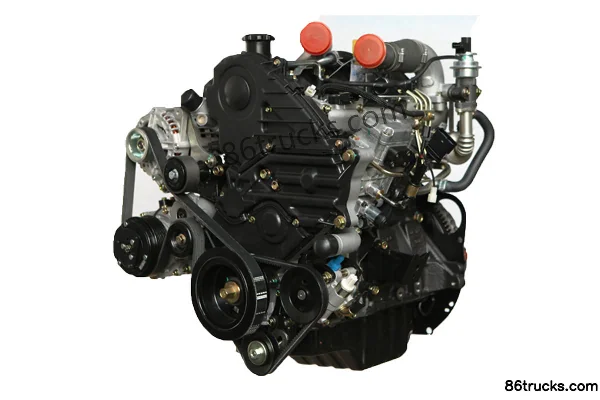

Xinchen Power ZD22TE 102 hp 2.18L China VI Diesel Engine
EXW
Export quote

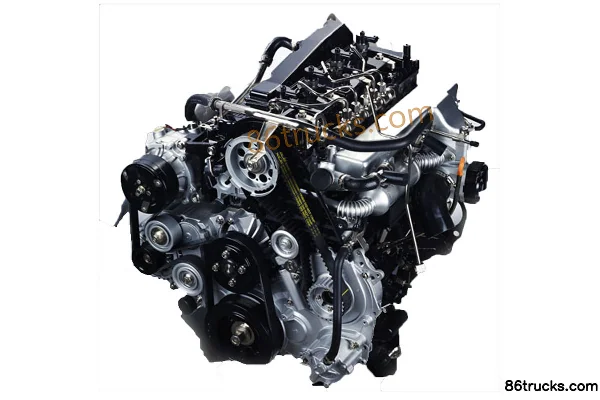

Xinchen Power DK5 150 hp 3L China VI diesel engine
EXW
Export quote
Xinchen Power DK4B 116 hp 2.5L China VI diesel engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: D Series
Engine manufacturer: Xinchen Power Machinery Co., Ltd.
Suitable Range: Pickup, light truck, light bus / high-end pickup truck, van / SUV, pickup, light bus, light truck / Light Truck, Pickup
Intake type: Turbocharged / Charge air cooling, EGR cooling / Water-Cooled / Charge air cooling
Min. fuel consumption at full load: ≤240 / ≤210 / ≤232 / 210 / 240 / 232g/kW.h
Compression ratio: 22:1 / 17.3:1 / 17.35:1 / 18.5:1 / 22：1 / 17.3：1 / 17.35：1 / 22 / 17.35
Bore × Stroke: 86×94 / 96×103 / 92×94 / 86X86mm
Valves per cylinder: 4 / 16 / 2pcs
Engine Brand: Xinchen Power
Engine Model: D20B / ZD25T5 / ZD22TE / DK5 / DK4B / DK5B / Xinchen PowerDK4A / DK4C / D20A / D22A
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.991 / 2.5 / 2.184 / 2.982 / 2.498 / 1.997L
Emission standard: China V / China VI / China III / Euro III / China IV
Max output power: 93 / 103 / 75 / 110 / 85 / 100kW
Max hp: 126 / 140 / 102 / 150 / 116 / 136Horsepower
Max torque: 265 / 305 / 220 / 370 / 280 / 260 / 316N·m
Max torque speed: 1800-2600 / 2200-2600 / 1800 / 1600-2400 / 2000-2600rpm
Rated speed: 4000 / 3800 / 3400 / 3600 / 3600-3800rpm
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, EGR with cooler / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, high-pressure common rail, charge air cooling / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, high-pressure common rail, charge air cooling, EGR with cooler / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, 16V, DOHC, direct injection, high-pressure common rail, turbocharged, charge air cooling, EGR cooler / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, SOHC (single overhead camshaft), 8-valve, electronically controlled VE pump, swirl combustion chamber, EGR with cooler, electronically controlled VE pump / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, 16V, DOHC, direct injection, high-pressure common rail, charge air cooling / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, 16-valve, DOHC (dual overhead camshaft), direct injection, high-pressure common rail, charge air cooling, EGR with cooler / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged, SOHC (single overhead camshaft), 8-valve, electronically controlled VE pump, swirl combustion chamber, EGR with cooler
FAQ
What kind of truck is Xinchen Power Xinchen Power D Series engine?
Xinchen Power Xinchen Power D Series is an export-oriented engine lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Xinchen Power D Series engine cover?
Xinchen Power D Series engine mainly covers: Horsepower: 102 hp / 116 hp / 126 hp / 140 hp / 150 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xinchen Power D Series engine?
For Xinchen Power D Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Xinchen Power D Series engine include?
Xinchen Power D Series engine currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xinchen Power D Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
