SAIC Fiat Powertrain Hongyan N4.180 180hp 4L Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan NEF4 Series engine

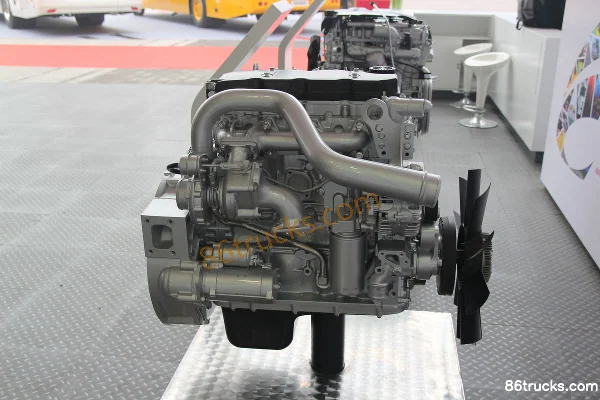

Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Fiat Powertrain Hongyan N4.180 180hp 4L Diesel Engine | 180hp / China III / with SCR can reach China IV / with external EGR+SCR can reach China V | ||
| SAIC Fiat Powertrain Hongyan N4.160 160hp 4L Diesel Engine | 160hp / China III / with SCR can reach China IV / with external EGR+SCR can reach China V | ||
| SAIC Fiat Powertrain Hongyan N4.140 140hp 4L Diesel Engine | 140hp / China III / with SCR can reach China IV / with external EGR+SCR can reach China V | ||
| SAIC Fiat Powertrain Hongyan N4.170 170hp 4L China IV Diesel Engine | 170hp / China IV | ||
| SAIC Fiat Powertrain Hongyan N4.150 150hp 4L China IV Diesel Engine | 150hp / China IV |
SAIC Fiat Powertrain Hongyan N4.160 160hp 4L Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan N4.140 140hp 4L Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan N4.170 170hp 4L China IV Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan N4.150 150hp 4L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: NEF4 Series
Engine manufacturer: SAIC Fiat Powertrain Hongyan
Suitable Range: For Trucks
Intake type: Exhaust turbocharger
Min. fuel consumption at full load: 196 / 195g/kW.h
Engine net weight: 390kg
Engine Dimensions: 850X705X840mm
Bore × Stroke: 102x120mm
Valves per cylinder: 4pcs
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: N4.180 / N4.160 / N4.140 / N4.170 / N4.150 / N4.130
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.9 / 3.91L
Emission standard: China III / with SCR can reach China IV / with external EGR+SCR can reach China V / China IV
Max output power: 132 / 118 / 103 / 125 / 110 / 96kW
Max hp: 180 / 160 / 140 / 170 / 150 / 130Horsepower
Max torque: 610 / 530 / 460 / 570 / 498 / 438N·m
Max torque speed: 1300-2100 / 1200-2100rpm
Rated speed: 2700rpm
Engine Type: Inline 4-cylinder, 4-valve, electronic high-pressure common rail
FAQ
What kind of truck is SAIC Fiat Powertrain Hongyan SAIC Fiat Powertrain Hongyan NEF4 Series engine?
SAIC Fiat Powertrain Hongyan SAIC Fiat Powertrain Hongyan NEF4 Series is an export-oriented engine lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SAIC Fiat Powertrain Hongyan NEF4 Series engine cover?
SAIC Fiat Powertrain Hongyan NEF4 Series engine mainly covers: Horsepower: 140 hp / 150 hp / 160 hp / 170 hp / 180 hp; Emission: China III / with SCR can reach China IV / with external EGR+SCR can reach China V / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Fiat Powertrain Hongyan NEF4 Series engine?
For SAIC Fiat Powertrain Hongyan NEF4 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does SAIC Fiat Powertrain Hongyan NEF4 Series engine include?
SAIC Fiat Powertrain Hongyan NEF4 Series engine currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Fiat Powertrain Hongyan NEF4 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
