Foton Aumark S3 156 hp 4X2(6 wheels) 5.2m Refrigerated Truck (JinSheng Brand)
EXW
From $24,306
Export quote
JinSheng Foton chassis Refrigerated Truck
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aumark S3 156 hp 4X2(6 wheels) 5.2m Refrigerated Truck (JinSheng Brand) | 4x2 / 156hp / China V | From $24,306 | |
| Foton Aumark S3 131 hp 4X2(6 wheels) 4.2m Refrigerated Truck (JinSheng Brand) | 4x2 / 131hp / China V | From $18,333 |

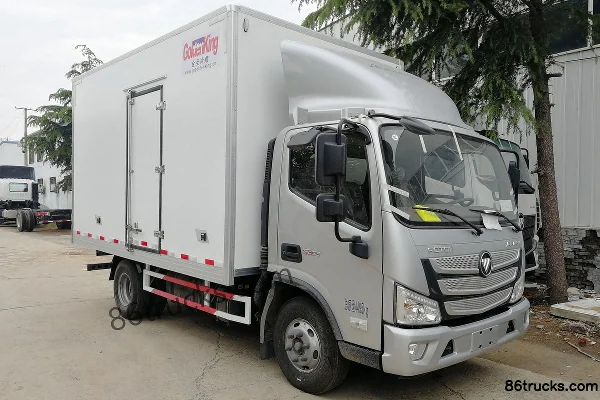

Foton Aumark S3 131 hp 4X2(6 wheels) 4.2m Refrigerated Truck (JinSheng Brand)
EXW
From $18,333
Export quote
Series Specs
Basic Info
Cab dimensions: 7.445×2.45×3.58 / 5.995×2.25×3.23m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Jinan, Shandong
Wheelbase: 4200 / 3360mm
Front track width: 1800 / 1730mm
rear track: 1705 / 1615mm
Curb Weight: 6.805 / 3.2ton
Rated payload: 4.995 / 1.1ton
Max. speed: 100 / 108km/h
Front/rear suspension: 1.13/2.115 / 1.12/1.515m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF3.8s5154 / FotonISF2.8s5129T
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.78L
Emission standard: China V
Max output power: 115 / 96kW
Max hp: 156 / 131Horsepower
Max torque: 491 / 300N·m
Rated speed: 2600 / 2900rpm
Engine Type: Electronically controlled high-pressure common rail / Turbocharged intercooled, Bosch high-pressure common rail, high-pressure direct injection, SCR
Cargo box parameters
Cargo box dimensions: 5.2 / 4.2m
Body Parameters
Body Brand: JinSheng Brand
Chassis Specs
Chassis Brand: Foton
Chassis Series: Auman S3
Chassis Model: BJ1128VGJED-A1 / BJ1048V9JEA-FE
Front axle description: 3.6T / 2.4T
rear axle description: 6.5T / 4.5T
Axle ratio: 4.33 / 4.875
Leaf spring count: 9/8+6 / 3/5+2
Transmission Parameters
Number of gears: 8 / 5Gear
Transmission Model: Fast Gear8JS75C / ZF5S328
Tire
Tire Size: 8.25R20 16PR / 7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is JinSheng JinSheng Foton chassis Refrigerated Truck?
JinSheng JinSheng Foton chassis is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JinSheng Foton chassis Refrigerated Truck?
JinSheng Foton chassis Refrigerated Truck export reference is about $18,333 – $24,306. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JinSheng Foton chassis Refrigerated Truck cover?
JinSheng Foton chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 131 hp / 156 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JinSheng Foton chassis Refrigerated Truck?
For JinSheng Foton chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JinSheng Foton chassis Refrigerated Truck include?
JinSheng Foton chassis Refrigerated Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JinSheng Foton chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
