JAC Lingpao EV3 Pure Electric 4X2(6 wheels) 3.7m Single-row Fence Van Light Truck CATL 41.86kWh
EXW
From $27,750
Export quote

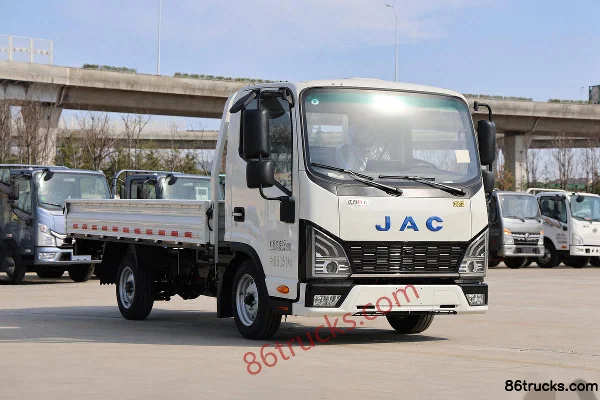

JAC Lingpao EV3 Light Truck electric cargo truck
Main model photos
30 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Lingpao EV3 Pure Electric 4X2(6 wheels) 3.7m Single-row Fence Van Light Truck CATL 41.86kWh | 4x2 | From $27,750 | |
| JAC Lingpao EV3 Pure Electric 4X2(6 wheels) 3.7m Single-row Fence Van Light Truck CATL 41.86kWh | 4x2 | From $27,750 | |
| JAC Lingpao EV3 3.4T 3.7m Single Row Pure Electric Box Light Truck 41.86kWh 4X2(6 wheels) | 4x2 | From $27,750 | |
| JAC Lingpao EV3 4.5T 4.18m single-row pure electric stake truck 63.75kWh 4X2(6 wheels) | 4x2 | From $29,972 | |
| JAC Lingpao EV3 4.5T 4.15m single-row pure electric van light truck 63.75kWh 4X2(6 wheels) | 4x2 | From $29,972 |
JAC Lingpao EV3 Pure Electric 4X2(6 wheels) 3.7m Single-row Fence Van Light Truck CATL 41.86kWh
EXW
From $27,750
Export quote
JAC Lingpao EV3 3.4T 3.7m Single Row Pure Electric Box Light Truck 41.86kWh 4X2(6 wheels)
EXW
From $27,750
Export quote
JAC Lingpao EV3 4.5T 4.18m single-row pure electric stake truck 63.75kWh 4X2(6 wheels)
EXW
From $29,972
Export quote
JAC Lingpao EV3 4.5T 4.15m single-row pure electric van light truck 63.75kWh 4X2(6 wheels)
EXW
From $29,972
Export quote
Series Specs
Basic Info
Model code (announced): HFC5031CCYEV2Q / HFC5031CCYEV1Q / HFC5031XXYEV2Q / HFC5041CCYEV1Q / HFC5041XXYEV1Q / HFC1041EV1Q / HFC5031XXYEV1Q / HFC1031EV1Q
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2850 / 3365mm
Box length class: 3.7 / 4.2m
Cab length: 5.505 / 5.995m
Cab width: 1.91 / 2.11 / 1.75 / 1725m
Cab height: 2.75 / 3 / 2.18 / 2.16m
CLTC range: 230 / 200km
Curb Weight: 1.845 / 2.025 / 1.95 / 2.54 / 2.62 / 2.37 / 1.74ton
Rated payload: 1.175 / 0.995 / 1.27 / 1.825 / 1.745 / 1.995 / 1.28ton
GVWR: 3.15 / 3.35 / 4.495ton
Max. speed: 85 / 110km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Remarks: Electric heated rearview mirrors
electric motor
Motor 1 Brand: JAC Motors / Prestolite
Motor 1 Model: TZ180XSJ100 / TZ180XSWF3-1
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 35 / 50kW
Peak power: 77 / 100kW
total peak torque: 230 / 270N·m
total rated torque: 105 / 100N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86 / 63.75kWh
Battery rated voltage: 334.88 / 318.78V
Energy Density: 140
Cargo box parameters
Cargo box type: Stake type / Van body / stake body
Cargo box length: 3.7 / 4.18 / 4.15m
Cargo box width: 1.81 / 2.01 / 1.65m
Cargo box height: 1.85 / 2.1 / 0.4 / 0.355m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1400 / 1550 / 1500kg
rear axle description: 2.1T
rear axle allowable load: 1750 / 1800 / 2995kg
Tire
Tire Size: 195/70R15LT 10PR / 195/65R16LT 10PR
FAQ
What kind of truck is JAC JAC Lingpao EV3 Light Truck electric cargo truck?
JAC JAC Lingpao EV3 Light Truck is an export-oriented electric cargo truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Lingpao EV3 Light Truck electric cargo truck?
JAC Lingpao EV3 Light Truck electric cargo truck export reference is about $26,361 – $29,972. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Lingpao EV3 Light Truck electric cargo truck cover?
JAC Lingpao EV3 Light Truck electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Lingpao EV3 Light Truck electric cargo truck?
For JAC Lingpao EV3 Light Truck electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JAC Lingpao EV3 Light Truck electric cargo truck include?
JAC Lingpao EV3 Light Truck electric cargo truck currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Lingpao EV3 Light Truck electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
