Qingling Isuzu 4HK1-TCG60 205hp 5.19L China VI Diesel Engine
EXW
Export quote

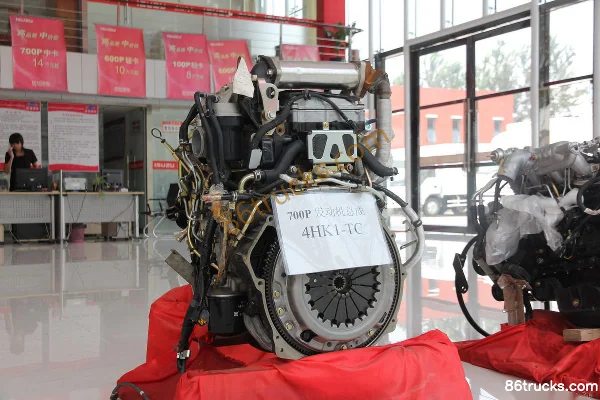

Qingling Isuzu 4H Series engine
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Qingling Isuzu 4HK1-TCG60 205hp 5.19L China VI Diesel Engine | 205hp / China VI | ||
| Qingling Isuzu 4HK1-TCG61 189hp 5.19L China VI Diesel Engine | 189hp / China VI | ||
| Qingling Isuzu 4HK1-TC50 205 hp 5.19L China V diesel engine | 205hp / China V | ||
| Qingling Isuzu 4HK1-TC51 190 hp 5.19L China V Diesel Engine | 190hp / China V | ||
| Qingling Isuzu 4HK1-TCG40 189hp 5.19L China IV Diesel Engine | 189hp / China IV |
Qingling Isuzu 4HK1-TCG61 189hp 5.19L China VI Diesel Engine
EXW
Export quote
Qingling Isuzu 4HK1-TC50 205 hp 5.19L China V diesel engine
EXW
Export quote
Qingling Isuzu 4HK1-TC51 190 hp 5.19L China V Diesel Engine
EXW
Export quote
Qingling Isuzu 4HK1-TCG40 189hp 5.19L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 4H Series
Engine manufacturer: Qingling Isuzu (Chongqing) Engine Co., Ltd. / Qingling
Intake type: Turbocharged Air-to-Air Intercooling / Inline 4-cylinder, turbocharged intercooled
Min. fuel consumption at full load: ≤210g/kW.h
Engine Dimensions: 926×784×883mm
Bore × Stroke: φ115×125mm
Valves per cylinder: 4pcs
Engine Brand: Qingling Isuzu
Engine Model: 4HK1-TCG60 / 4HK1-TCG61 / 4HK1-TC50 / 4HK1-TC51 / 4HK1-TCG40 / 4HK1-TC
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.193L
Emission standard: China VI / China V / China IV / China III / Euro III
Max output power: 151 / 139 / 141 / 129kW
Max hp: 205 / 189 / 190 / 175Horsepower
Max torque: 647 / 507 / 650 / 510 / 500N·m
Max torque speed: 1600 / 1600-2600rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail / Denso 1800bar high-pressure common rail, DOC (Diesel Oxidation Catalyst) / High-pressure common rail, precision electronic control, multi-stage injection, optimized combustion and exhaust gas recirculation, dual-stage fuel filtration
FAQ
What kind of truck is Qingling Isuzu Qingling Isuzu 4H Series engine?
Qingling Isuzu Qingling Isuzu 4H Series is an export-oriented engine lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Qingling Isuzu 4H Series engine cover?
Qingling Isuzu 4H Series engine mainly covers: Horsepower: 189 hp / 190 hp / 205 hp; Emission: China IV / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Qingling Isuzu 4H Series engine?
For Qingling Isuzu 4H Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Qingling Isuzu 4H Series engine include?
Qingling Isuzu 4H Series engine currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Qingling Isuzu 4H Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
