JAC Weiling II 120 hp 4X2(6 wheels) Refrigerated Truck
EXW
Export quote
JAC medium truck Refrigerated Truck
Main model photos
85 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Weiling II 120 hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 120hp / China III / Euro III | ||
| JAC Weiling 103hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 103hp / China III / Euro III | From $16,389 | |
| JAC Weiling 140hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 140hp / China III / Euro III |

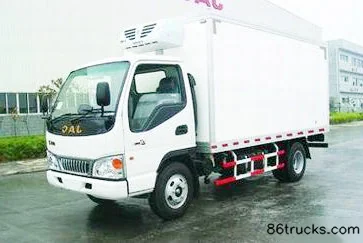

JAC Weiling 103hp 4X2(6 wheels) Refrigerated Truck
EXW
From $16,389
Export quote

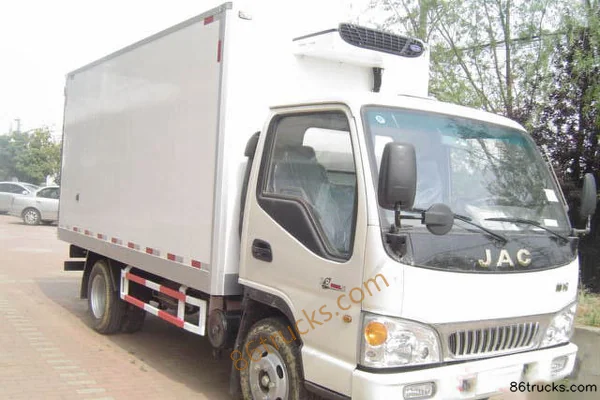

JAC Weiling 140hp 4X2(6 wheels) Refrigerated Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×1.91×2.9 / 8.39×2.2×3.38m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3360 / 3.3 / 4700mm
Vehicle origin: Anhui / Hefei
Front track width: 1440 / 1580 / 1660mm
rear track: 1425 / 1395 / 1680mm
Curb Weight: 2.69 / 4.49 / 6ton
Rated payload: 1.61 / 2.6 / 5.82ton
Max. speed: 95 / 98km/h
Front/rear suspension: 1.105/1.53 / 1.105/1.547 / 1.125/2.256m
Energy Type: Diesel
Engine parameters
Engine Model: JACHFC4DA1-2C / DachaiCA4DC2-10E3 / YuchaiYC4E140-30
Number of cylinders: 4cylinder
Displacement: 2.771 / 3.168 / 4.25L
Emission standard: China III / Euro III
Max output power: 88 / 76 / 105kW
Max hp: 120 / 103 / 140Horsepower
Max torque: 250 / 320 / 500N·m
Rated speed: 2500rpm
Engine Type: Mechanical / Vertical, inline, water-cooled, four-stroke, direct injection
Cargo box parameters
Box volume: 14 / 30m³
Cargo box dimensions: 4.1×1.75×1.7 / 4.2×1.75×1.8 / 6.2×2.1×2.15m
Cargo box width: 1.75 / 2.1m
Cargo box height: 1.7 / 1.8 / 2.15m
Body Parameters
Vehicle certification code: HFC5040XLCKZ / HFC5045XLCK103 / HFC5121XLCK1R1T
Body Brand: JAC
Refrigeration unit:
Others: Top closed, non-openable; side guard material Q235A bolted; rear guard material Q235A bolted to longitudinal beam, section dimension (height×width) 100mm×50mm, rear guard ground clearance 350mm / Top closed, non-openable
Refrigeration temperature: -10 / 20°C
Chassis Specs
Chassis Brand: JAC
Chassis Series: Weiling
Chassis Model: HFC1041P83K1C3 / HFC1045K25 / HFC1121K1R1T
Front axle description: 2T
rear axle description: 5T
Leaf spring count: 7/4+5,8/4+5 / 8/9+5，6/8+4 / 8/10+10
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: LC5T28 / Eaton, six-tooth
Tire
Tire Size: 7.00-168PR / 7.00-16，6.50-16 / 8.25-16/8.25R16/8.25-20
Number of tires: 6pcs
FAQ
What kind of truck is JAC JAC medium truck Refrigerated Truck?
JAC JAC medium truck is an export-oriented Refrigerated Truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC medium truck Refrigerated Truck?
JAC medium truck Refrigerated Truck export reference is about From $16,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC medium truck Refrigerated Truck cover?
JAC medium truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 103 hp / 120 hp / 140 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC medium truck Refrigerated Truck?
For JAC medium truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC medium truck Refrigerated Truck include?
JAC medium truck Refrigerated Truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC medium truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
