Dachai CA4DH1-14E51 140hp 3.8L China V Diesel Engine
EXW
Export quote
Dachai CA4DH1 Series engine
Main model photos
11 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dachai CA4DH1-14E51 140hp 3.8L China V Diesel Engine | 140hp / China V | ||
| Dachai CA4DH1-16E51 160hp 3.8L China V Diesel Engine | 165hp / China V | ||
| Dachai CA4DH1-16E6 160 hp 3.8L China VI Diesel Engine | 160hp / China VI | ||
| Dachai CA4DH1-14E5 140 hp 3.8L China V diesel engine | 140hp / China V | ||
| Dachai CA4DH1-13E5 130 hp 3.8L China V diesel engine | 130hp / China V |
Dachai CA4DH1-16E51 160hp 3.8L China V Diesel Engine
EXW
Export quote
Dachai CA4DH1-16E6 160 hp 3.8L China VI Diesel Engine
EXW
Export quote
Dachai CA4DH1-14E5 140 hp 3.8L China V diesel engine
EXW
Export quote

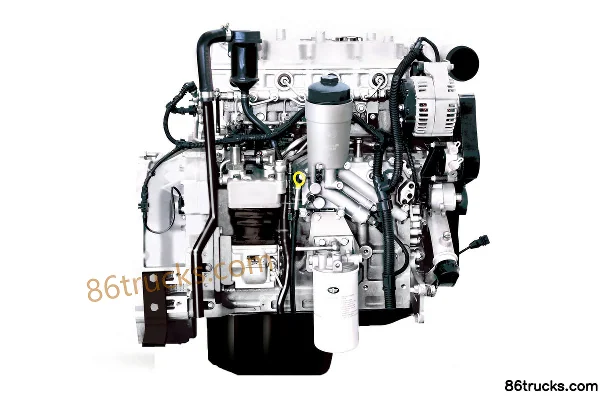

Dachai CA4DH1-13E5 130 hp 3.8L China V diesel engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: CA4DH1 Series
Engine manufacturer: FAW Group Corporation
Suitable Range: 3.3-4.7m wheelbase cargo & dump truck, 7-8m bus / Light Truck, Medium Truck, Medium Bus
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 195 / ≤195g/kW.h
Engine net weight: 399 / 400 / 410kg
Engine Dimensions: 846×676×879mm
noise at 1m: ≤93dB
Bore × Stroke: 98×126mm
Valves per cylinder: 4pcs
Engine Brand: Dachai
Engine Model: CA4DH1-14E51 / CA4DH1-16E51 / CA4DH1-16E6 / CA4DH1-14E5 / CA4DH1-13E5 / CA4DH1-18E5 / CA4DH1-16E5 / CA4DH1-18E6 / CA4DH1-16E5-30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.8L
Emission standard: China V / China VI
Max output power: 103 / 121 / 118 / 106 / 95 / 135 / 132kW
Max hp: 140 / 165 / 160 / 130 / 180Horsepower
Max torque: 550 / 600 / 450 / 650 / 560N·m
Max torque speed: 1200-1800 / 1500 / 1200-1700 / 1300-1700rpm
Rated speed: 2500rpm
Engine Type: SCR / High-pressure common rail + EGR + DOC + DPF + SCR + ASC
FAQ
What kind of truck is Dachai Dachai CA4DH1 Series engine?
Dachai Dachai CA4DH1 Series is an export-oriented engine lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dachai CA4DH1 Series engine cover?
Dachai CA4DH1 Series engine mainly covers: Horsepower: 130 hp / 140 hp / 160 hp / 165 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dachai CA4DH1 Series engine?
For Dachai CA4DH1 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Dachai CA4DH1 Series engine include?
Dachai CA4DH1 Series engine currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dachai CA4DH1 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
