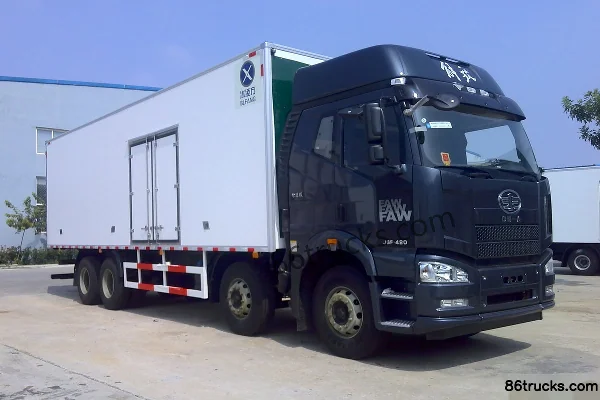

FAW Jiefang J6P 460hp 8X4(12 wheels) 9.55m Refrigerated Truck (Binglingfang)
EXW
From $44,861
Export quote
Binglingfang FAW Jiefang chassis Refrigerated Truck
Main model photos
40 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6P 460hp 8X4(12 wheels) 9.55m Refrigerated Truck (Binglingfang) | 8x4 / 460hp / China VI | From $44,861 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 260 hp 6X2(8 wheels) 7.7m Refrigerated Truck (Binglingfang) | 6x2 / 260hp / China VI | ||
| FAW Jiefang J6L 260 hp 6X2(8 wheels) 9.6m Refrigerated Truck (Binglingfang) | 6x2 / 260hp / China VI | ||
| FAW Jiefang J6P 460hp 8X4(12 wheels) 9.33m Refrigerated Truck (Binglingfang) | 8x4 / 460hp / China VI | From $46,111 | |
| FAW Jiefang J6P 420hp 8X4(12 wheels) 9.3m Refrigerated Truck (Binglingfang) | 8x4 / 420hp / China VI | From $45,139 | |
| FAW Jiefang J6P 500hp 8X4(12 wheels) 9.33m Refrigerated Truck (Binglingfang) | 8x4 / 500hp / China VI | From $46,944 |
FAW Jiefang J6L 260 hp 6X2(8 wheels) 7.7m Refrigerated Truck (Binglingfang)
EXW
Export quote
FAW Jiefang J6L 260 hp 6X2(8 wheels) 9.6m Refrigerated Truck (Binglingfang)
EXW
Export quote
FAW Jiefang J6P 460hp 8X4(12 wheels) 9.33m Refrigerated Truck (Binglingfang)
EXW
From $46,111
Export quote
FAW Jiefang J6P 420hp 8X4(12 wheels) 9.3m Refrigerated Truck (Binglingfang)
EXW
From $45,139
Export quote
FAW Jiefang J6P 500hp 8X4(12 wheels) 9.33m Refrigerated Truck (Binglingfang)
EXW
From $46,944
Export quote
Series Specs
Basic Info
Cab dimensions: 10.06×2.6×4 / 11.96×2.6×4 / 12×2.6×3.998 / 12×2.6×4 / 11.998×2.55×3.998 / 12×2.55×4 / 9.26×2.55×3.86 / 11.15×2.55×4 / 11.998×2.6×3.998 / 10×2.55×3.9 / 9.4×2.33×2.4 / 10.998×2.534×3.8m
Truck Type: Refrigerated Truck
Drive type: 6X2 / 8X4 / 4X2
Vehicle origin: Changchun, Qingdao, Chengdu / Pingdu, Shandong / Qingdao, Shandong / Changchun, Jilin / Qingdao
Wheelbase: 1900+4300 / 2100+4500+1350 / 1900+4700+1350 / 2100+4700+1350 / 1950+5600 / 1900+4500+1350 / 5300 / 1900+4700 / 5800mm
Front track width: 1943/1943 / 1960/1960 / 2072/2072 / 2050/2050 / 1950/1950 / 1800,1900,1827 / 1800/1800 / 1800mm
rear track: 1878 / 1900 / 1847/1847 / 1847 / 1800,1860 / 1860 / 1878/1878 / 1800 / 1860/1860mm
Curb Weight: 10.37 / 11.07 / 13.2 / 12.7 / 12.98 / 10.955 / 13.9 / 6.97 / 9.48 / 7.36 / 12.09 / 10.305ton
Rated payload: 13.7 / 14.4 / 17.67 / 18.17 / 17.825 / 13.915 / 16.97 / 8.63 / 15.325 / 17.89 / 8.24 / 18.715 / 14.5ton
Max. speed: 96 / 105 / 107 / 98 / 90 / 93km/h
Front/rear suspension: 1.4/2.96 / 1.5/2.55 / 1.47/2.378 / 1.4/3.05 / 1.47/2.38 / 1.47/2.578 / 1.4/2.56 / 1.4/3.15 / 1.4/2.8 / 1.375/2.87 / 1.582/2.816m
Energy Type: LNG (liquefied natural gas) / Diesel
Engine parameters
Injection System: Common Rail
Engine Model: XichaiCA6SL-26E6N / XichaiCA6DM2-46E6 / XichaiCA6DM2-42E6 / XichaiCA6DM3-50E6 / XichaiCA6DM2-46E52 / DachaiCA6DK1-28E5 / XichaiCA6DM2-42E51 / XichaiCA6DL2-35E5 / DachaiCA4DK1-18E51 / DachaiCA4DK1-22E51 / DachaiBF6M2012-18E5 / DachaiCA6DK1-24E5 / XichaiCA6DL1-26E3F / XichaiCA6DF3-18E3
Number of cylinders: 6 / 4cylinder
Displacement: 7.4 / 11.05 / 12.52 / 7.146 / 8.6 / 4.76 / 4.764 / 8.57 / 6.06 / 7.7 / 6.7L
Emission standard: China VI / China V / China III / Euro III
Max output power: 191 / 341 / 309 / 365 / 342 / 209 / 312 / 258 / 139 / 165 / 261 / 180 / 192 / 143kW
Max hp: 260 / 460 / 420 / 500 / 280 / 350 / 180 / 220 / 240Horsepower
Max torque: 1000 / 2300 / 2200 / 1100 / 1900 / 1500 / 720 / 820 / 680N·m
Rated speed: 2100 / 1800 / 1900 / 2300 / 2500rpm
Engine Type: 6-cylinder, inline, turbocharged intercooled / 4-cylinder, inline, turbocharged with intercooler / 6-cylinder inline, 4-valve, overhead camshaft, turbocharged intercooled, electronic common-rail / FCRI+SCR air-assisted / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled / 4-cylinder, inline, turbocharged with intercooler, high-pressure common rail, SCR / Electronically controlled / 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR / 4-stroke, inline, water-cooled, turbocharged with intercooling
Cargo box parameters
Cargo box dimensions: 7.7×2.42×2.45 / 9.6×2.42×2.45 / 9.33×2.434×2.47 / 9.3×2.434×2.47 / 9.55×2.44×2.45 / 9.434×2.378×2.484 / 9.6×2.35×2.45 / 9.6×2.29×2.5 / 6.8×2.378×2.36 / 8.7×2.378×2.44 / 7.6×2.378×2.4 / 9.28×2.378×2.484 / 8.6×2.35×2.35 / 8.55×2.3×2.3m
Cargo box width: 2.42 / 2.434 / 2.44 / 2.378 / 2.35 / 2.29 / 2.3m
Cargo box height: 2.45 / 2.47 / 2.484 / 2.5 / 2.36 / 2.44 / 2.4 / 2.35 / 2.3m
Body Parameters
Vehicle certification code: CA5250XLCP62M2L6T3E6 / QYK5321XLC6 / QYK5310XLC6 / CA5310XLCP66K24L7T4E6 / QYK5310XLC5 / CA5250XLCP63K1L6T3E5 / QYK5162XLC5 / QYK5250XLC5 / QYK5160XLC5 / QYK5310XLC / QYK5251XLC
Body Brand: Binglingfang
Others: Green Pass Edition / Cold Region Edition / Fruits, vegetables & frozen goods refrigerated transport / Optional ratio: 5.571 / Compartment roof sealed, non-openable. Optional side door. / Cargo box top sealed, non-openable. This product can have one or more side doors on both sides; optional refrigeration unit of equivalent power from other manufacturers; follow chassis to choose flat roof, modified front lamps and front cab; this vehicle shall have reflective markings on side and rear.
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J6L / J6P / FAW JiefangJ6P / FAW JiefangJ6M / FAW JiefangJ6L / Junwei J5K
Chassis Model: CA1250P62M2L6T3E6 / CA5310XLCP66K24L7T4E6 / CA1310P66K2L7T4E5 / CA1250P63K1L6T3A1E5 / CA1160P62K1L4A2E5 / CA1250P62K1L7T3E5 / CA5160XXYP62K1L5A3E5 / CA1311P1K2L7T4EA80 / CA1250PK2L6T3EA80
rear axle description: 457 stamped-welded axle
Axle ratio: 3.727 / 4.111 / 5.571 / 4.875 / 6.166 / 4.444
Leaf spring count: 11/11/13+7 / 2/2/4 / 10/10/12,9/9/10 / 3/3/10+9 / 10/10/12 / 10/12+8,7/7+6 / 10/10/12,9/9/10,3/3/10,3/3/4 / 12/12/10,3/3/-,12/12/- / 11/11/13+7,10/10/12+7
Transmission Parameters
Number of gears: 9 / 12 / 10 / 6 / 7 / 8Gear
Transmission Model: 9-Speed Transmission / FAW JiefangCA12TAX210M / FAW JiefangCA12TAX230M / FAWCA12TA / FAWCA10TAX / FAWCA12TAX / FAWCA6T138 / FAWCA7T156 / Fast Gear8JS85E / Fast Gear 9JS119A
Cab parameters
Cab: High roof / Flat roof
Tire
Tire Size: 11.00R20 / 12R22.5 / 295/80R22.5 / 11.00R20 16PR / 11.00R20,12R22.5 / 12.00R20 18PR / 9.00R20,10.00R20,10R22.5 / 11.00R20,12R22.5,295/80R22.5 / 12R22.5 18PR / 9.00-20/9.00R20/10.00-20/10.00R20
Number of tires: 8 / 12 / 6pcs
FAQ
What kind of truck is Binglingfang Binglingfang FAW Jiefang chassis Refrigerated Truck?
Binglingfang Binglingfang FAW Jiefang chassis is an export-oriented Refrigerated Truck lineup with about 20 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Binglingfang FAW Jiefang chassis Refrigerated Truck?
Binglingfang FAW Jiefang chassis Refrigerated Truck export reference is about $21,944 – $46,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Binglingfang FAW Jiefang chassis Refrigerated Truck cover?
Binglingfang FAW Jiefang chassis Refrigerated Truck mainly covers: Drive: 6x2 / 8x4; Horsepower: 260 hp / 420 hp / 460 hp / 500 hp; Emission: China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Binglingfang FAW Jiefang chassis Refrigerated Truck?
For Binglingfang FAW Jiefang chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Binglingfang FAW Jiefang chassis Refrigerated Truck include?
Binglingfang FAW Jiefang chassis Refrigerated Truck currently lists about 20 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Binglingfang FAW Jiefang chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
