Foton Auhang R-Series 220hp 4X2(6 wheels) 7.85m Chick Transport Truck (Binglingfang Brand)
EXW
From $41,667
Export quote
Binglingfang Foton chassis Refrigerated Truck
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auhang R-Series 220hp 4X2(6 wheels) 7.85m Chick Transport Truck (Binglingfang Brand) | 4x2 / 220hp / China VI | From $41,667 | |
| Foton Auman R Series 220hp 4X2(6 wheels) 7.6m Chick Transport Truck (Binglingfang Brand) | 4x2 / 220hp / China VI | From $113,889 | |
| Foton Auman R-Series 210 hp 4X2(6 wheels) 6.6m Refrigerated Truck (Binglingfang) | 4x2 / 210hp / China V (Beijing) | From $20,139 | |
| Foton Auman R-Series 210hp 4X2(6 wheels) 5.8m Refrigerated Truck (Binglingfang) | 4x2 / 210hp / China V (Beijing) | From $26,389 |

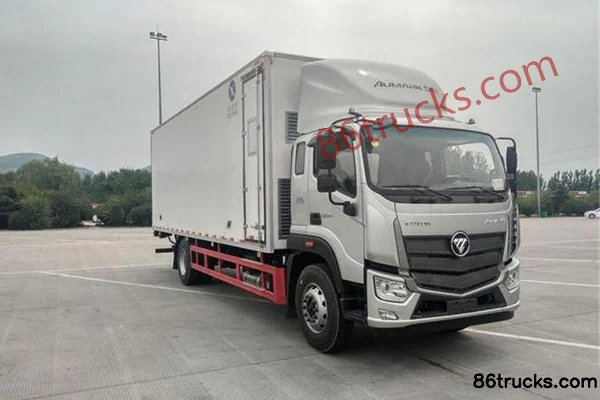

Foton Auman R Series 220hp 4X2(6 wheels) 7.6m Chick Transport Truck (Binglingfang Brand)
EXW
From $113,889
Export quote
Foton Auman R-Series 210 hp 4X2(6 wheels) 6.6m Refrigerated Truck (Binglingfang)
EXW
From $20,139
Export quote

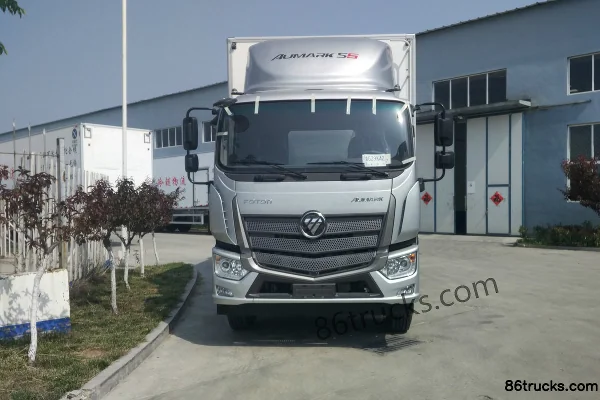

Foton Auman R-Series 210hp 4X2(6 wheels) 5.8m Refrigerated Truck (Binglingfang)
EXW
From $26,389
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman R Series 220 hp 4X2(6 wheels) 7.8m refrigerated truck (Binglingfang brand) | 4x2 / 220hp / China VI | From $33,056 |
Foton Auman R Series 220 hp 4X2(6 wheels) 7.8m refrigerated truck (Binglingfang brand)
EXW
From $33,056
Export quote
Series Specs
Basic Info
Cab dimensions: 10.14×2.47×3.95 / 10.176×2.55×4.0 / 10.106×2.55×3.995 / 8.995×2.6×3.85 / 7.995×2.6×3.85m
Truck Type: Refrigerated Truck / Poultry transport truck
Drive type: 4X2
Wheelbase: 5750 / 5150 / 4500mm
Vehicle origin: Pingdu, Shandong / Beijing
Front track width: 1922 / 1995 / 1914mm
rear track: 1800 / 1840mm
Curb Weight: 7.85 / 8.25 / 8.9 / 7.875ton
Rated payload: 10.02 / 9.62 / 8.97 / 7.995ton
Max. speed: 100 / 105km/h
Front/rear suspension: 1.27/3.156 / 1.27/3.086 / 1.27/2.575 / 1.27/2.225m
Energy Type: Diesel
Engine parameters
Engine Model: FotonF4.5NS6B220 / FotonISF4.5S5210
Number of cylinders: 4cylinder
Displacement: 4.5 / 4.46L
Emission standard: China VI / China V (Beijing)
Max output power: 162 / 154kW
Max hp: 220 / 210Horsepower
Max torque: 820 / 760N·m
Rated speed: 2300 / 2500rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
Cargo box parameters
Cargo box dimensions: 7.8×2.3×2.25 / 7.85×2.424×2.48 / 6.6×2.45×2.5 / 5.8×2.45×2.5m
Cargo box width: 2.3 / 2.424 / 2.45m
Cargo box height: 2.25 / 2.48 / 2.5m
Body Parameters
Vehicle certification code: QYK5181XLC6 / QYK5182XCQ / QYK5181XCQ
Body Brand: Binglingfang
Chassis Specs
Chassis Brand: Foton
Chassis Series: Auman S5 / Auman S5 Series
Chassis Model: BJ1186VKPFK-4K / BJ5186XXY-1A / BJ1166VKPFK-A3
Axle ratio: 4.875
Leaf spring count: 3/4+3,10/10+8,10/8+8 / 3/4+3,10/10+8 / 10/10+8
Transmission Parameters
Number of gears: 8 / 7Gear
Transmission Model: 8-speed gearbox / Fast Gear8JS85T / DachiDC7J80T
Tire
Tire Size: 10.00R20 18PR / 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR / 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Binglingfang Binglingfang Foton chassis Refrigerated Truck?
Binglingfang Binglingfang Foton chassis is an export-oriented Refrigerated Truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Binglingfang Foton chassis Refrigerated Truck?
Binglingfang Foton chassis Refrigerated Truck export reference is about $20,139 – $113,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Binglingfang Foton chassis Refrigerated Truck cover?
Binglingfang Foton chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 210 hp / 220 hp; Emission: China V (Beijing) / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Binglingfang Foton chassis Refrigerated Truck?
For Binglingfang Foton chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Binglingfang Foton chassis Refrigerated Truck include?
Binglingfang Foton chassis Refrigerated Truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Binglingfang Foton chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
