Dongfeng Chenglong H7 Heavy Truck livestock

Main model photos

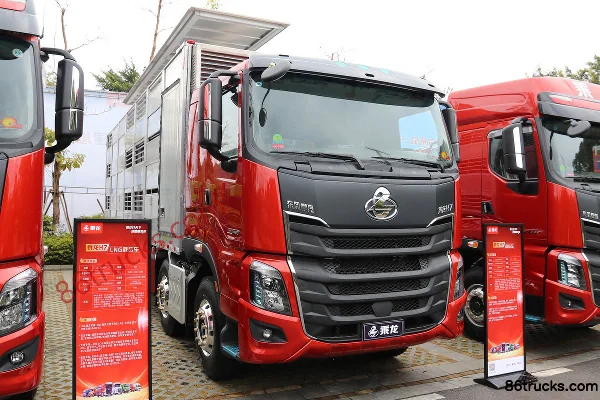

Dongfeng Liuqi Chenglong H7 320 hp 6X2(8 wheels) 9.47m Livestock Transport Truck Exterior Dongfeng Liuqi Chenglong H7 400 hp 8X4(12 wheels) livestock transport truck Exterior

1,421 photos

Models

Series Specs

Basic Info
Cab dimensions: 10.3×2.55×4 / 12×2.55×4 / 11.1×2.55×4m
Drive type: 6X2 / 8X4
Wheelbase: 2050+4050 / 2050+4400+1350 / 2050+5350 / 2050+4450mm
Vehicle origin: Liuzhou, Guangxi
Front track width: 2040/2040mm
rear track: 1860 / 1860/1860mm
Curb Weight: 10.78 / 12.9 / 14.01 / 12.57ton
Rated payload: 14.09 / 17.97 / 17.86 / 19.3ton
Max. speed: 89km/h
Front/rear suspension: 1.445/2.755 / 1.512/2.688 / 1.512/3.088m
Energy Type: Diesel
Cargo box parameters
Cargo box length: 7.8 / 9.47 / 8.6 / 9.5m
Cargo box dimensions: 7.8×2.46 / 9.47×2.46 / 8.6×2.46 / 9.5×2.46m
Cargo box type: Stake type
Cargo box width: 2.46m
Engine parameters
Engine Model: YuchaiYCK08350-60 / DongfengZ12NS6B500F / YuchaiYCK08330-60 / YuchaiYCK08330-61A / WeichaiWP10.5H460E62 / YuchaiYCK11460-60 / YuchaiYCK11500-60 / DongfengD6.7NS6B320
Number of cylinders: 6cylinder
Displacement: 7.7 / 12.5 / 7.698 / 10.5 / 10.98 / 6.7L
Emission standard: China VI
Max output power: 257 / 368 / 243 / 338 / 339 / 232kW
Max hp: 350 / 500 / 330 / 460 / 320Horsepower
Rated speed: 2200 / 1900 / 2300rpm
Body Parameters
Vehicle certification code: LZ5251CCQH5CC1 / LZ5310CCQH7FC1 / LZ5321CCQH7FC2 / LZ5321CCQH7FC1 / LZ1310H7FC1T
Body Brand: Dongfeng
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: ChenglongH7
Chassis Model: LZ1251H5CCT / LZ1310H7FCT / LZ1321H7FCT
Front axle description: 2*5.5T / 2*5.5T/ConMet
Frame Dimensions: 282(8) / 282(8+4)mm
rear axle description: 440 rear axle / 2*400/ConMet / 2*440/oil lubrication / 2*400
Steering gear: Domestic
Axle ratio: 3.7
Leaf spring count: 3/3/12+9 / 3/3/10 / 11/11/12+9 / 3/3/-/- / 1/11/10 / 3/3/4+3
clutch: Ф430
Transmission Parameters
Number of gears: 9 / 12 / 8 / 14Gear
Transmission Model: Fast Gear9JS150TA-B / Fast GearF12JZ22A / Fast Gear9JS135TB / Fast GearF8JZ130AM / DongfengDT1420 / Fast Gear9JS119TA / Fast Gear12JSD200TA-B
Cab parameters
Cab: H73S / H73D
Tire
Tire Size: 12R22.5 18PR / 12R22.5
Number of tires: 8 / 12pcs

FAQ

What kind of truck is Dongfeng Dongfeng Chenglong H7 Heavy Truck livestock transport truck?

Dongfeng Dongfeng Chenglong H7 Heavy Truck is an export-oriented livestock transport truck lineup with about 21 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Dongfeng Chenglong H7 Heavy Truck livestock?

Dongfeng Chenglong H7 Heavy Truck livestock export reference is about $38,528 – $59,292. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Dongfeng Chenglong H7 Heavy Truck livestock cover?

Dongfeng Chenglong H7 Heavy Truck livestock mainly covers: Drive: 6x2 / 8x4; Horsepower: 330 hp / 350 hp / 500 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Dongfeng Chenglong H7 Heavy Truck livestock?

For Dongfeng Chenglong H7 Heavy Truck livestock: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is livestock transport truck typically used for?

livestock transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does Dongfeng Chenglong H7 Heavy Truck livestock include?

Dongfeng Chenglong H7 Heavy Truck livestock currently lists about 21 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Dongfeng Chenglong H7 Heavy Truck livestock?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
