Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI)
EXW
From $18,028
Export quote
Foton Struggle Edition Light Truck Cargo Trucks
Main model photos
2 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.17m Single Row Stake Truck (China VI) | 4x2 / 132hp / China VI | From $18,028 | |
| Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI) | 4x2 / 132hp / China VI | From $18,028 | |
| Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.17m Single Row Flatbed Light Truck (China VI) | 4x2 / 132hp / China VI | From $17,194 |
Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.14m Single Row Van Light Truck (China VI)
EXW
From $18,028
Export quote

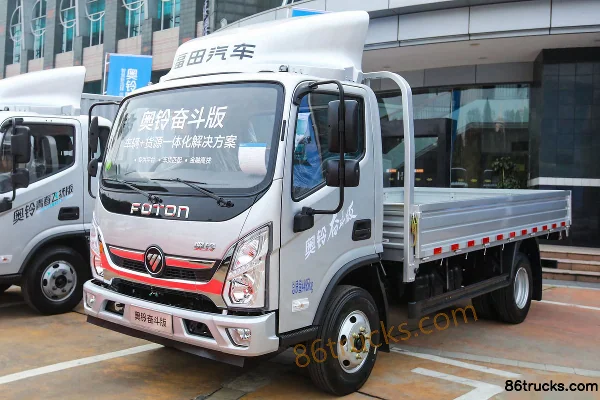

Foton Aoling Fendou Edition 132hp 4X2(6 wheels) 4.17m Single Row Flatbed Light Truck (China VI)
EXW
From $17,194
Export quote
Series Specs
Basic Info
Model code (announced): BJ5041CCY9JBA-AB1 / BJ5041XXY9JBA-AB1 / BJ1041V9JBA-AB1
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Engine Model: QuanchaiQ23-132E60
Transmission Model: WLYWLY5TS32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2 / 2.24 / 1880m
Cab height: 3.105 / 3.15 / 2.32m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.715 / 2.8 / 2.56ton
Rated payload: 1.64 / 1.555 / 1.795ton
GVWR: 4.485ton
Max. speed: 110km/h
Origin: Beijing Changping
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Standard: manual heater, maintenance-free battery, steel rim; Optional: mechanical damping driver seat, cargo box accessories, steel side guard, welcome light
Front/rear suspension: 1.11/1.525m
Version: Struggle Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 320N·m
Rated speed: 3000rpm
Engine Type: Common Rail
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
FAQ
What kind of truck is Foton Foton Struggle Edition Light Truck Cargo Trucks?
Foton Foton Struggle Edition Light Truck is an export-oriented Cargo Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Struggle Edition Light Truck Cargo Trucks?
Foton Struggle Edition Light Truck Cargo Trucks export reference is about $17,194 – $18,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Struggle Edition Light Truck Cargo Trucks cover?
Foton Struggle Edition Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 132 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Struggle Edition Light Truck Cargo Trucks?
For Foton Struggle Edition Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Struggle Edition Light Truck Cargo Trucks include?
Foton Struggle Edition Light Truck Cargo Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Struggle Edition Light Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
