Dongfeng Commercial Vehicle Tianjin KC Sky Edition 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 12-speed 5.4m Sleeper Cab Dump Truck
EXW
Export quote
Dongfeng Commercial Vehicle Dongfeng Tianjin KC
Main model photos
89 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin KC Sky Edition 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 12-speed 5.4m Sleeper Cab Dump Truck | 4x2 / 300hp | ||
| Dongfeng Commercial Vehicle Tianjin KC 245 hp Fast Gear 10-speed 6X2(8 wheels) 4.5m Dump Truck | 6x2 / 245hp / China VI | From $32,347 | |
| Dongfeng Commercial Vehicle Tianjin KC 270 hp Fast Gear 10-speed 6X2(8 wheels) 4.5m Dump Truck | 6x2 / 270hp / China VI | From $33,861 | |
| Dongfeng Commercial Vehicle Tianjin KC 270hp 4X2(6 wheels) Fast Gear 10-speed 5.4m Dump Truck | 4x2 / 270hp / China VI | From $32,819 | |
| Dongfeng Commercial Vehicle Tianjin KC 270 hp 4X2(6 wheels) Fast Gear 10-speed 5m Dump Truck | 4x2 / 270hp / China VI | From $32,236 |

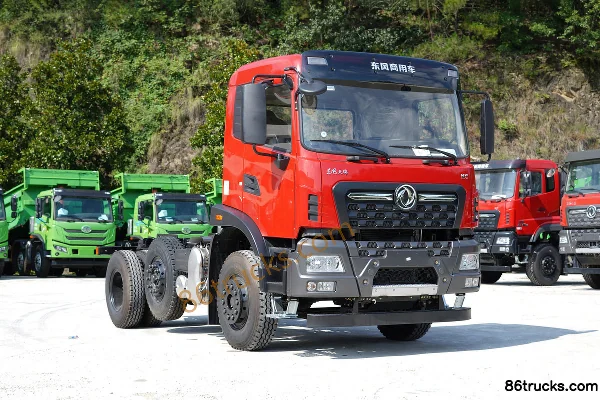

Dongfeng Commercial Vehicle Tianjin KC 245 hp Fast Gear 10-speed 6X2(8 wheels) 4.5m Dump Truck
EXW
From $32,347
Export quote

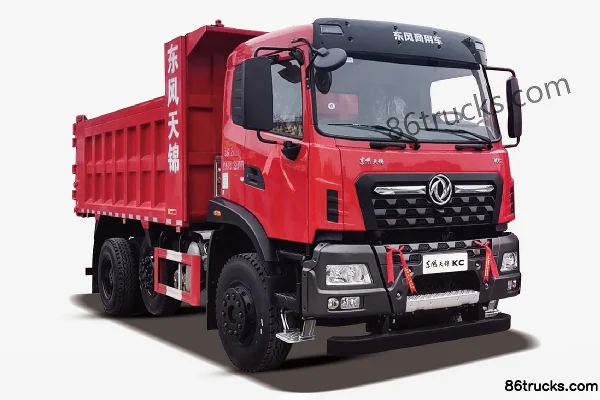

Dongfeng Commercial Vehicle Tianjin KC 270 hp Fast Gear 10-speed 6X2(8 wheels) 4.5m Dump Truck
EXW
From $33,861
Export quote
Dongfeng Commercial Vehicle Tianjin KC 270hp 4X2(6 wheels) Fast Gear 10-speed 5.4m Dump Truck
EXW
From $32,819
Export quote
Dongfeng Commercial Vehicle Tianjin KC 270 hp 4X2(6 wheels) Fast Gear 10-speed 5m Dump Truck
EXW
From $32,236
Export quote
Series Specs
Basic Info
Model code (announced): DFH3180B5 / DFH3250BX5 / DFH3310A21 / DFH3310A22 / DFH3310A20 / DFH3310E
Drive type: 4X2 / 6X2 / 8X4
Wheelbase: 4500 / 2600+1300 / 4200 / 3800 / 1995+2350+1350 / 1995+2950+1350 / 2050+2350+1350 / 1995+2800+1350 / 1995+2650+1350mm
Engine Model: YuchaiYCS07L300-66 / YuchaiYCS06245-60 / YuchaiYCS06270-60 / DongfengDDi75E340-60 / DongfengDDi90E385-60 / DongfengDDi90E350-60 / YCS07L300-66 / YCS06245-60 / YCS06270-60
Transmission Model: Fast Gear12JS / Fast Gear10JS90A-B / Fast Gear10JSD120B / Fast Gear10JSD120T / Fast Gear10JSD140TB 0D / Fast Gear12JS180TA 0D / Fast Gear12JSD180TA 0D / Fast Gear12JS160TA 0D / 10JS90A-B / 10JSD120B / 10JSD120T
Rear Axle Ratio: 5.92 / 5.143 / 5.571
Cab length: 8.025 / 7.425 / 7.725 / 7.36 / 8.875 / 9.75 / 8.775 / 9.575 / 9.175m
Cab width: 2.54 / 2.55 / 2400m
Cab height: 3.22 / 3.3 / 3.6 / 3.39 / 3.27m
Front track width: 1920 / 2010/2010 / 2040/2040 / 1934/1934mm
rear track: 1880 / 1880/1880 / 1860/1860mm
Curb Weight: 9 / 9.1 / 13 / 13.6 / 15.5 / 11.28ton
Rated payload: 8.87 / 15.705 / 8.805 / 17.87 / 17.27 / 15.37 / 19.59ton
GVWR: 18 / 31ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 18 / 16.5 / 15 / 16°
departure angle: 16 / 25 / 18°
Remarks: 7-inch large screen, high-end seat (with ventilation) / Standard: Premium seat (integrated seatbelt), direct push, AEBS / Standard: straight push + disconnect link plate, smart cockpit (12.3-inch LCD instrument + 10-inch large screen + four-way camera) / Standard: straight push + disconnect link plate / Standard: Premium seat (ventilated), direct push / Standard: V-rod + disconnected balance suspension
Version: Qingtian Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Dongfeng
Number of cylinders: 6cylinder
Displacement: 6.442 / 6.23 / 7.5 / 8.9L
Emission standard: China VI
Max output power: 221 / 180 / 199 / 250 / 283 / 257kW
Max hp: 300 / 245 / 270 / 340 / 385 / 350Horsepower
Max torque: 850 / 1050 / 1700N·m
Max torque speed: 1200-1700 / 1100-1500rpm
Rated speed: 2300 / 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Cooled EGR + DOC + DPF + SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.4 / 4.5 / 5 / 5.8 / 6.8 / 6.5 / 6.2m
Cargo box width: 2.34 / 2.35m
Cargo box height: 0.8 / 1.5m
Cab parameters
Cab: D560 Tianjin KC / D530+
FAQ
What kind of truck is Dongfeng Commercial Vehicle Dongfeng Tianjin KC heavy-duty truck Dump Trucks?
Dongfeng Commercial Vehicle Dongfeng Tianjin KC heavy-duty truck is an export-oriented Dump Trucks lineup with about 14 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Commercial Vehicle Dongfeng Tianjin KC?
Dongfeng Commercial Vehicle Dongfeng Tianjin KC export reference is about $31,806 – $43,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Commercial Vehicle Dongfeng Tianjin KC cover?
Dongfeng Commercial Vehicle Dongfeng Tianjin KC mainly covers: Drive: 4x2 / 6x2; Horsepower: 245 hp / 270 hp / 300 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Commercial Vehicle Dongfeng Tianjin KC?
For Dongfeng Commercial Vehicle Dongfeng Tianjin KC: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Commercial Vehicle Dongfeng Tianjin KC include?
Dongfeng Commercial Vehicle Dongfeng Tianjin KC currently lists about 14 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Commercial Vehicle Dongfeng Tianjin KC?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
