Jiangte Dongfeng Commercial Vehicle chassis Tow

Main model photos

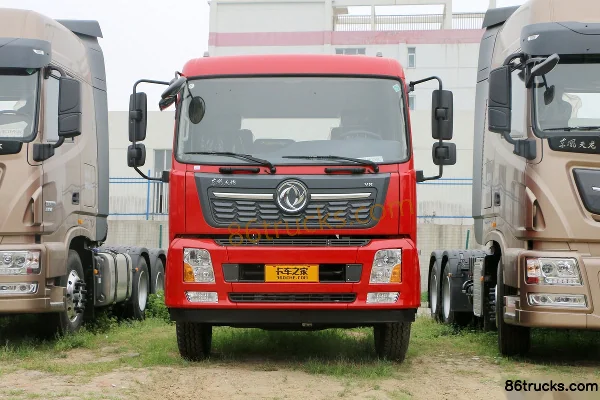

Dongfeng Commercial Vehicle Tianjin 210hp 4X2(6 wheels) Wrecker (Jiangte Brand) Exterior Dongfeng Commercial Vehicle Tianjin VR 180hp 4X2(6 wheels) Wrecker (Jiangte Brand) Exterior

88 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) wrecker (Jiangte brand) 4x2 / 180hp / China V From $29,931
Dongfeng Commercial Vehicle Tianjin 210hp 4X2(6 wheels) Wrecker (Jiangte Brand) 4x2 / 210hp / China V From $34,722
Dongfeng Commercial Vehicle Tianjin VR 180hp 4X2(6 wheels) Wrecker (Jiangte Brand) 4x2 / 180hp / China V From $45,389

Inventory

Model Drive / HP / Emission EXW Export quote
Dongfeng Commercial Vehicle 153 Series 170 hp 4X2(6 wheels) Wrecker (Jiangte Brand) 4x2 / 170hp / China III / Euro III
Dongfeng Commercial Vehicle 145 Series 180 hp 4X2(6 wheels) Wrecker (Jiangte Brand) 4x2 / 180hp / China III / Euro III
Dongfeng Commercial Vehicle Tianjin 140 hp 4X2(6 wheels) Wrecker (Jiangte Brand) 4x2 / 140hp / China III / Euro III
Dongfeng Commercial Vehicle Tianlong 260 hp 6X4(10 wheels) Wrecker Truck (Jiangte Brand) 6x4 / 260hp / China III / Euro III
Dongfeng Commercial Vehicle Tianjin 190 hp 4X2(6 wheels) Wrecker Truck (Jiangte Brand) 4x2 / 190hp / China III / Euro III

Series Specs

Basic Info
Cab dimensions: 9.48×2.55×2.84 / 10.08×2.55×2.84 / 9.5×2.5×3.62 / 7.8×2.498×2.96 / 9×2.47×3.8 / 8.32×2.32×2.75 / 9.1×2.48×3.6,3.69 / 7.85×2.498×2.98 / 6.37×2.46×2.5m
Type: Tow truck (towing one vehicle) / Tow truck (towing two vehicles)
Drive type: 4X2 / 6X4
Front/rear track width: Front: 1900mm; Rear: 1820 / Front track: 1940, Rear track: 1860 / Front track: 1900, Rear track: 800 / Front track: 1800/1680mm; Rear track: 1800mm / Front track: 1986, Rear track: 1860/1860 / Front track: 1880, Rear track: 1800/1860 / Front track: 1810mm; Rear track: 1800mm
Wheelbase: 5000 / 5600 / 4700,5100 / 5100 / 4500 / 4350+1300,4350+1350 / 5000,4700 / 3950,4200mm
GVWR (Gross Vehicle Weight Rating): 9.8 / 10.5 / 11.205 / 8.655 / 5.915 / 19.305 / 11.975 / 7.455ton
GVWR: 15.8 / 12.495 / 15.7 / 12.45 / 8.49 / 25 / 16 / 10.45ton
Max. speed: 98 / 85 / 90 / 95km/h
Front/rear suspension: 1.43/3.05 / 1.44/3.06 / 1.245/1.455,1.245/1.655 / 1.250/2.65 / 1.365/2.455 / 1.46/1.99 / 1.43/1.42 / 1.065/1.355m
Energy Type: Diesel
Body Parameters
Lifting capacity: 5870 / 1800 / 4300 / 5000 / 2380 / 5500 / 3830 / 2800kg
Vehicle certification code: JDF5160TQZDFL5 / JDF5121TQZDFL5 / JDF5161TQZG / JDF5121TQZG / JDF5080TQZDFL / JDF5250TQZDFL / JDF5160TQZDFL / JDF5100TQZK
Body Brand: Jiangte Brand
Others: Lifting capacity: 4300kg; optional split tow-lift upper body, corresponding overall dimensions length 8000mm, rear overhang 1655mm; split tow-lift upper body causes curb weight variation within 3%. / Lifting capacity: 2380kg. / Lifting capacity: 5500kg; optional high-roof cab; high-roof cab roof air horn optional, corresponding overall height 3690mm. / Lifting capacity: 3830kg; optional split tow-lift upper body, corresponding overall dimensions length 8050mm, rear overhang 1620mm; split tow-lift upper body causes curb weight variation within 3%. / Payload: 2800kg; only uses YC4E140-31 engine.
Engine parameters
Engine Model: DongfengISB180 50 / DongfengISB210 50 / Dongfeng B170 33 / Yuchai YC6J180-31 / Dongfeng EQH140-33 / Dongfeng C260 33 / Dongfeng B190 33 / Yuchai YC4E140-31
Displacement: 5.9 / 6.5 / 4.752 / 8.3L
Emission standard: China V / China III / Euro III
Max output power: 132 / 155 / 125 / 105 / 191 / 140 / 103kW
Max hp: 180 / 210 / 170 / 140 / 260 / 190Horsepower
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin / Tianjin VR / Dongfeng153 / Dongfeng145 / Dongfeng Tianlong / Dongfeng140
Chassis Model: DFL1160BX1V / DFL1120B21 / EQ5161GFJ6 / EQ1120GLJ / DFL1080B / DFL1250A8 / DFL1160BX / EQ1100FKJ
rear axle description: 10
Leaf spring count: 8/10+8 / 9/14+10 / 8/9+7 / 8/9,8/10 / 7/9+6,8/10+8 / 9/11+8
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: Fast Gear 8-speed / Fast Gear8JS85E / Datong
Number of Reverse Gears: 2 / 1pcs
Tire
Tire Size: 9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 14PR,10.00R20 16PR,10.00R20 18PR,10R22.5 16PR,275/80R22.5,275/70R22.5 16PR,275/70R22.5 18PR,295/80R22.5 / 10.00R20 / 9.00R20 16PR / 9.00-20,9.00R20,10.00-20,10.00R20 / 9.00-20 / 8.25-16,8.25R16 / 10.00-20,10.00R20,11.00-20,11.00R20 / 9.00-20,9.00R20
Number of tires: 6 / 10pcs

FAQ

What kind of truck is Jiangte Jiangte Dongfeng Commercial Vehicle chassis Tow Truck?

Jiangte Jiangte Dongfeng Commercial Vehicle chassis is an export-oriented Tow Truck lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Jiangte Dongfeng Commercial Vehicle chassis Tow?

Jiangte Dongfeng Commercial Vehicle chassis Tow export reference is about $29,931 – $45,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Jiangte Dongfeng Commercial Vehicle chassis Tow cover?

Jiangte Dongfeng Commercial Vehicle chassis Tow mainly covers: Drive: 4x2 / 6x4; Horsepower: 140 hp / 170 hp / 180 hp / 190 hp / 210 hp / 260 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Jiangte Dongfeng Commercial Vehicle chassis Tow?

For Jiangte Dongfeng Commercial Vehicle chassis Tow: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is Tow Truck typically used for?

Tow Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does Jiangte Dongfeng Commercial Vehicle chassis Tow include?

Jiangte Dongfeng Commercial Vehicle chassis Tow currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Jiangte Dongfeng Commercial Vehicle chassis Tow?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.

Related series

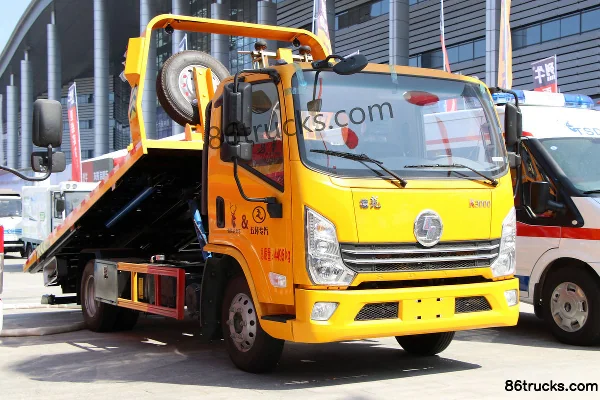

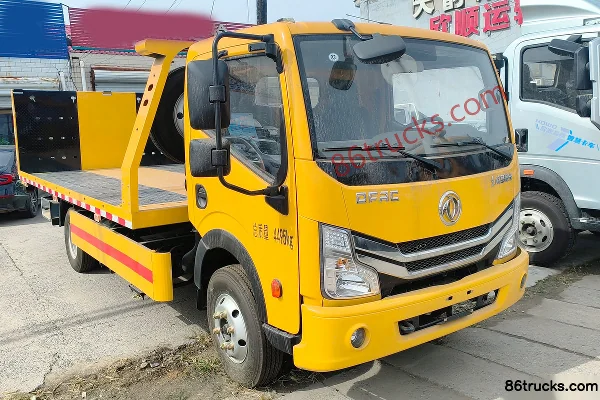

Dongfeng Dongfeng D6 Light Truck Tow Truck Dongfeng D6 Light Truck Tow Truck Dongfeng · 1 models Huatong Huatong SHACMAN Light Truck chassis Tow Truck Huatong SHACMAN Light Truck chassis Tow Truck Huatong · 1 models Chusheng Chusheng JAC chassis Tow Truck Chusheng JAC chassis Tow Truck Chusheng · 1 models Pafeite Pafeite Dongfeng Commercial Vehicle Chassis Tow Truck Pafeite Dongfeng Commercial Vehicle Chassis Tow Truck Pafeite · 11 models
