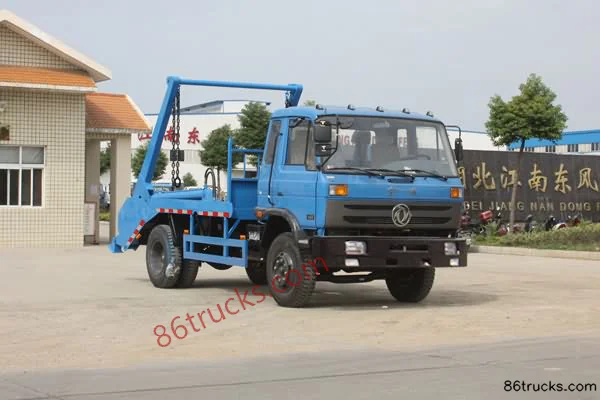

Dongfeng 145 Series 160 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand)
EXW
Export quote
Jiangte Dongfeng Commercial Vehicle chassis garbage
Main model photos
88 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 145 Series 160 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand) | 4x2 / 160hp / China III / Euro III | ||
| Dongfeng 145 Series 160 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand) | 4x2 / 160hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 170 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand) | 4x2 / 170hp / China III / Euro III | ||
| Dongfeng 140 Series 140hp 4X2(6 wheels) Garbage Truck (Jiangte Brand) | 4x2 / 140hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 210hp 4X2(6 wheels) Garbage Truck (Jiangte Brand) | 4x2 / 210hp / China III / Euro III |
Dongfeng 145 Series 160 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand)
EXW
Export quote

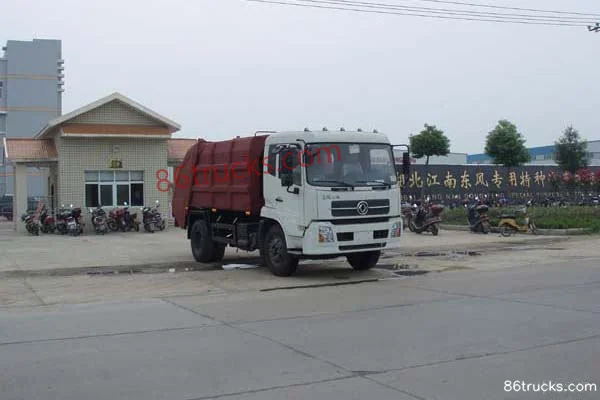

Dongfeng Commercial Vehicle Tianjin 170 hp 4X2(6 wheels) Garbage Truck (Jiangte Brand)
EXW
Export quote
Dongfeng 140 Series 140hp 4X2(6 wheels) Garbage Truck (Jiangte Brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 210hp 4X2(6 wheels) Garbage Truck (Jiangte Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.76×2.48×2.92 / 7.35×2.48×3.35 / 7.7×2.4×2.9 / 6.97×2.46×2.99 / 8.78×2.495×3.1m
Type: garbage truck
Drive type: 4X2
Wheelbase: 3950 / 3800 / 4500mm
Front/rear track width: Front track: 1900mm; Rear track: 1800mm / Front track: 1880, Rear track: 1800 / 1810 / Front track: 1880, Rear track: 1860
Rated mass: 4.6 / 4.9 / 4.49 / 4 / 4.8ton
GVWR: 12.45 / 12.49 / 9.95 / 16ton
Front/rear suspension: 1.250/1.820 / 1.25/2.15 / 1.43/2.47 / 1.065/1.87 / 1.43/2.85m
Energy Type: Diesel
Engine parameters
Engine Model: Yuchai YC6J160-31 / Dongfeng B170-33 / Yuchai YC4E140-30 / Dongfeng SDe210 40
Displacement: 6.5 / 5.9 / 4.26 / 6.7L
Emission standard: China III / Euro III
Max output power: 118 / 125 / 105 / 155kW
Max hp: 160 / 170 / 140 / 210Horsepower
Rated speed: 2500rpm
Cargo box parameters
Box volume: 8 / 7m³
Body Parameters
Vehicle certification code: JDF5120ZYSK / JDF5120ZBLK / JDF5120ZYSDFL / JDF5100ZBL / JDF5161ZYSDFL4
Body Brand: Jiangte Brand
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng145 / Dongfeng Tianjin / Dongfeng140
Chassis Model: EQ1121GKJ / EQ1121KGJ / DFL1120B1 / EQ1120FLJ5 / DFL1160BX4
rear axle description: 3-ton / 9-ton rear axle / 10
Leaf spring count: 8/10+8 / 7/9+6 / 9/12+9
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: Dongfeng 6-Speed
Tire
Tire Size: 9.00-20 / 9.00-16 / 9.00-20,10.00-20 / 900-16 / 10.00-20
Number of tires: 6pcs
FAQ
What kind of truck is Jiangte Jiangte Dongfeng Commercial Vehicle chassis garbage truck?
Jiangte Jiangte Dongfeng Commercial Vehicle chassis is an export-oriented garbage truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Jiangte Dongfeng Commercial Vehicle chassis garbage cover?
Jiangte Dongfeng Commercial Vehicle chassis garbage mainly covers: Drive: 4x2; Horsepower: 140 hp / 160 hp / 170 hp / 210 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiangte Dongfeng Commercial Vehicle chassis garbage?
For Jiangte Dongfeng Commercial Vehicle chassis garbage: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jiangte Dongfeng Commercial Vehicle chassis garbage include?
Jiangte Dongfeng Commercial Vehicle chassis garbage currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiangte Dongfeng Commercial Vehicle chassis garbage?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
