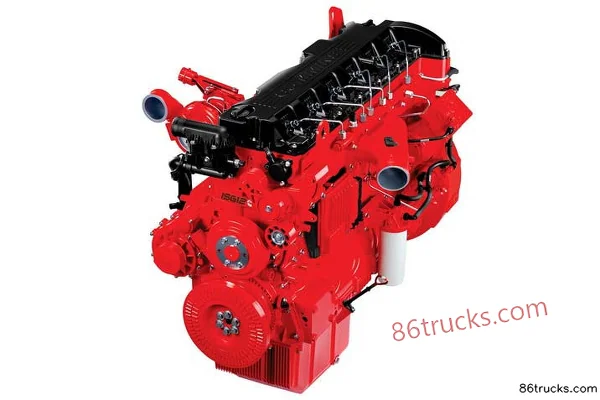

Foton ISGe5-340 340 hp 11L China V Diesel Engine
EXW
Export quote
Foton ISG11 Series engine
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton ISGe5-340 340 hp 11L China V Diesel Engine | 340hp / China V | ||
| Foton ISGe5-300 300 hp 11L China V Diesel Engine | 300hp / China V | ||
| Foton ISGe5-280 280 hp 11L China V Diesel Engine | 280hp / China V | ||
| Foton ISGe5-320 320 hp 11L China V Diesel Engine | 320hp / China V | ||
| Foton ISGe4 350 350 hp 11L China IV Diesel Engine | 350hp / China IV |
Foton ISGe5-300 300 hp 11L China V Diesel Engine
EXW
Export quote
Foton ISGe5-280 280 hp 11L China V Diesel Engine
EXW
Export quote
Foton ISGe5-320 320 hp 11L China V Diesel Engine
EXW
Export quote
Foton ISGe4 350 350 hp 11L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: ISG11 Series
Engine manufacturer: Foton Engine Co., Ltd., Beijing
Engine net weight: 792 / 831kg
Engine Dimensions: 1460X895X1050mm
Bore × Stroke: 132X144 / 132X128mm
Valves per cylinder: 1-5-3-6-2-4pcs
Engine Brand: Foton
Engine Model: ISGe5-340 / ISGe5-300 / ISGe5-280 / ISGe5-320 / ISGe4 350 / ISGe4 330 / ISGe4 310 / ISG11
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.5L
Emission standard: China V / China IV
Max output power: 250 / 220 / 205 / 235 / 257 / 243 / 228kW
Max hp: 340 / 300 / 280 / 320 / 350 / 330 / 310 / 400Horsepower
Max torque: 1800 / 1420 / 1700 / 1400N·m
Max torque speed: 1000-1300 / 900-1400 / 900-1300 / 1000rpm
Rated speed: 1900rpm
Engine Type: Electronically controlled high-pressure common rail / Common Rail SCR / Cummins XPI Ultra-High Pressure Fuel System
FAQ
What kind of truck is Foton Foton ISG11 Series engine?
Foton Foton ISG11 Series is an export-oriented engine lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Foton ISG11 Series engine cover?
Foton ISG11 Series engine mainly covers: Horsepower: 280 hp / 300 hp / 320 hp / 340 hp / 350 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ISG11 Series engine?
For Foton ISG11 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Foton ISG11 Series engine include?
Foton ISG11 Series engine currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ISG11 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
