SHACMAN Delong M3000E Super Edition 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 281.91kWh
EXW
From $95,653
Export quote

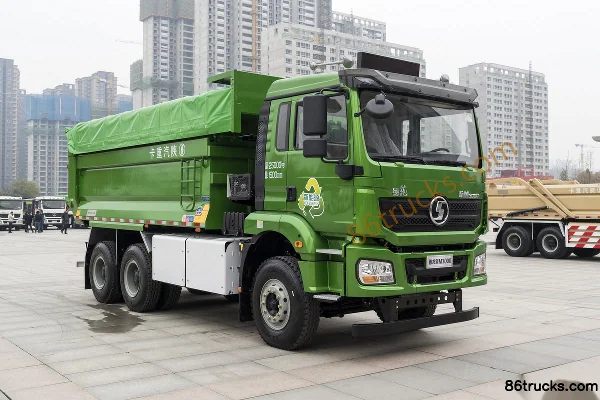

SHACMAN Delong New M3000 Heavy Truck electric dump
Main model photos
1,020 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong M3000E Super Edition 8X4(12 wheels) 7.8m Battery Swap Electric Dump Truck 281.91kWh | 8x4 | From $95,653 | |
| SHACMAN Delong M3000E Lightweight 8X4(12 wheels) 6.2m Battery Swap Electric Dump Truck 281.91kWh | 8x4 | From $88,708 | |
| SHACMAN Delong M3000E Mining Enhanced Edition 8X4(12 wheels) 6.5m Swappable Electric Dump Truck 281.91kWh | 8x4 | From $93,708 | |
| SHACMAN Delong M3000E 8X4(12 wheels) 6.5m electric dump truck 422.87kWh | 8x4 | From $77,889 | |
| SHACMAN Delong M3000E Urban Standard Edition 8X4(12 wheels) 6m electric dump truck 422.87kWh | 8x4 | From $106,958 |
SHACMAN Delong M3000E Lightweight 8X4(12 wheels) 6.2m Battery Swap Electric Dump Truck 281.91kWh
EXW
From $88,708
Export quote
SHACMAN Delong M3000E Mining Enhanced Edition 8X4(12 wheels) 6.5m Swappable Electric Dump Truck 281.91kWh
EXW
From $93,708
Export quote
SHACMAN Delong M3000E 8X4(12 wheels) 6.5m electric dump truck 422.87kWh
EXW
From $77,889
Export quote
SHACMAN Delong M3000E Urban Standard Edition 8X4(12 wheels) 6m electric dump truck 422.87kWh
EXW
From $106,958
Export quote
Inventory
SHACMAN Delong New M3000 8X4(12 wheels) 8m Electric Dump Truck 282kWh
EXW
Export quote
SHACMAN Delong New M3000 6X4(10 wheels) 5.6m Electric Dump Truck 350kWh
EXW
Export quote
SHACMAN Delong New M3000 8X4(12 wheels) 6.5m Electric Dump Truck 374kWh
EXW
Export quote
SHACMAN Delong New M3000 8X4(12 wheels) 5.6m pure electric dump truck 422kWh
EXW
Export quote
SHACMAN Delong New M3000 8X4(12 wheels) 6.5m Pure Electric Dump Truck 374.65kWh
EXW
From $180,556
Export quote
Series Specs
Basic Info
Model code (announced): SX3317MF526SEV / SX3317MF426SEV1 / SX3317MF406BEV3 / SX3317MF306BEV1 / SX3317MF326BEV / SX3257MF404BEV1 / SX3317MF406BEV2 / SX3317MF406BEV / SX3317MF286BEV1 / SX3317M4406EV
Drive type: 8X4 / 6X4
Wheelbase: 1800+4975+1400 / 1800+3575+1400 / 1800+3975+1400 / 1800+3375+1400 / 1800+5175+1400 / 1800+4775+1400 / 1800+3775+1400 / 3975+1400 / 1800+2975+1400 / 1800+2775+1400mm
Cab length: 11.7 / 10 / 10.25 / 9.6 / 11.8 / 11.5 / 11.4 / 11.2 / 10.4 / 8.6 / 9.8 / 9.2 / 10.77 / 9.35m
Cab width: 2.55 / 2.52m
Cab height: 3.5 / 3.25 / 3.6 / 3.515m
CLTC range: 310 / 200 / 300 / 120 / 250 / 210 / 110km
Curb Weight: 22.4 / 16 / 21.4 / 19.9 / 18.3 / 23.5 / 19.3 / 17 / 19.5 / 21.5 / 20.825 / 18.2 / 19.01ton
Rated payload: 9.405 / 14.87 / 9.47 / 10.97 / 12.57 / 7.37 / 12.505 / 7.87 / 11.57 / 9.37 / 10.045 / 12.67 / 11.86ton
GVWR: 31 / 25ton
Max. speed: 89 / 80km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhide / Xi'an Zhide / Zhonglian Nengchuang
Motor 1 Model: TZ380XS010 / TZ400XS033 / TZ420XSC1TB1 / TZ420XS360K01
Motor Type: Permanent magnet synchronous motor
total rated power: 250 / 270 / 210kW
Peak power: 410 / 250 / 360kW
total peak torque: 2800 / 3800N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281.91 / 422.87 / 350.07 / 282 / 350 / 374 / 422 / 374.65 / 234.16kWh
Battery rated voltage: 579.6V
Energy Density: 157.57 / 141.5 / 140.7
Battery Model: CB240 / MFH3L8
Transmission Parameters
Number of gears: 6 / 4 / 10Gear
shift type: Manual / AT automatic
Transmission Model: Fast GearS06ADQ / H04ADQ / Fast Gear 6-speed / Eaton 10-speed / EatonF0-16E308LL-VCS
Transmission Brand: Fast Gear / Eaton
Cargo box parameters
Cargo box type: Dump type / Rear-dump body
Cargo box length: 7.8 / 6.2 / 6.5 / 6 / 8 / 7.6 / 5.6 / 5.8m
Cargo box width: 2.3 / 2.35m
Cargo box height: 1.5 / 1.2 / 0.9m
Cab parameters
Cab: M3000E standard cab without deflector
seating capacity: 2 / 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500 / 7000 / 6500/6500kg
rear axle description: drum drive axle / 16T MAN double reduction / 13T MAN dual-reduction / Hande 16T MAN-technology double reduction cast axle
rear axle allowable load: 18000 (tandem axle group)kg
FAQ
What kind of truck is SHACMAN SHACMAN Delong New M3000 Heavy Truck electric dump truck?
SHACMAN SHACMAN Delong New M3000 Heavy Truck is an export-oriented electric dump truck lineup with about 24 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong New M3000 Heavy Truck electric dump?
SHACMAN Delong New M3000 Heavy Truck electric dump export reference is about $77,889 – $180,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong New M3000 Heavy Truck electric dump cover?
SHACMAN Delong New M3000 Heavy Truck electric dump mainly covers: Drive: 6x4 / 8x4. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong New M3000 Heavy Truck electric dump?
For SHACMAN Delong New M3000 Heavy Truck electric dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong New M3000 Heavy Truck electric dump include?
SHACMAN Delong New M3000 Heavy Truck electric dump currently lists about 24 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong New M3000 Heavy Truck electric dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
