SHACMAN Delong New M3000 Heavy Truck fuel tanker

Main model photos

SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck Exterior

1,020 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
SHACMAN Delong New M3000 340 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck 8x4 / 340hp / China V From $47,792
SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Aluminum Alloy Oil Tank Truck 8x4 / 336hp / China V From $50,764
SHACMAN Delong New M3000 Enhanced Edition 336 hp 8X4(12 wheels) Oil Tanker Truck 8x4 / 336hp / China V From $47,458
SHACMAN Delong New M3000 Enhanced Edition 300 hp 8X4(12 wheels) Oil Tanker Truck 8x4 / 300hp / China V From $43,708
SHACMAN Delong New M3000 Enhanced Edition 336 hp 8X4(12 wheels) Oil Tanker Truck 8x4 / 336hp / China V From $47,458

Inventory

Model Drive / HP / Emission EXW Export quote
SHACMAN Delong New M3000 300 hp 6X4(10 wheels) Oil Tank Truck 6x4 / 300hp / China V
SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Oil Tank Truck 8x4 / 336hp / China V
SHACMAN Delong New M3000 300 hp 8X4(12 wheels) Oil Tank Truck 8x4 / 300hp / China V
SHACMAN Delong New M3000 336 hp 8X4(12 wheels) Oil Tank Truck 8x4 / 336hp / China IV From $45,208
SHACMAN Delong New M3000 300 hp 8X4(12 wheels) Oil Tank Truck 8x4 / 300hp / China IV From $43,181

Series Specs

Basic Info
Cab dimensions: 11.88×2.55×3.52 / 11.925×2.55×3.36 / 11.925×2.49×3.36 / 10.125×2.49×3.36 / 11.7×2.55×3.36 / 11.7×2.55×3.4 / 9.705×2.49×3.3 / 11.935x2.49x3.66 / 9.926×2.49×3.36m
Truck Type: aluminum fuel tanker truck / Fuel tanker truck / Flammable liquid tanker truck
Drive type: 8X4 / 6X4 / 8X2 / 6X2
Vehicle origin: Huainan, Anhui
Wheelbase: 1800+4575+1350 / 4575+1350 / 1800+4575+1400 / 1800+4600 / 4375+1350mm
Front track width: 2070/2070 / 2011/2011 / 2011 / 2036/2036 / 2050/2050 / 1939mm
rear track: 1860/1860 / 1860/2080 / 1860mm
Curb Weight: 10.75 / 16.32 / 14.5 / 13.3 / 13.08 / 12.76 / 10.8 / 10.52 / 10.56 / 10.82 / 10.5 / 12 / 11.64ton
Rated payload: 21.12 / 14.55 / 16.37 / 17.57 / 11.725 / 12.045 / 14.005 / 21.285 / 21.245 / 14.05 / 14.37 / 18.87ton
Max. speed: 80 / 78 / 92km/h
Front/rear suspension: 1.525/2.63 / 1.525/2.675 / 1.525/2.6 / 1.485/1.82 / 1.485/2.725m
Energy Type: Diesel
Body Parameters
Tank Size: 2.531×1.761×9.15 / 8.75×2.35×1.6 / 8.5×2.35×1.65 / 9.1×2.48×1.8 / 6.8×2.3×1.48 / 6.45×2.3×1.48 / 7×2.4×1.65 / 8.85×2.45×1.596 / 8.85×2.47×1.862 / 6.9×2.296×1.596 / 7.4×2.35×1.65 / 9.2X2.48X1.85m
Tank Volume: 31.67 / 21.7 / 24 / 26.2 / 17.5 / 15.8 / 21 / 26.9 / 31.9 / 17.6 / 20.4 / 27.5m3
Transport medium: gasoline / crude oil / Diesel, gasoline, kerosene
Medium Density: 0.7 / 0.8ton/cubic meter
Vehicle certification code: SHN5320GYYMB6316 / SHN5310GYYMB6217 / SHN5310GYYMB456 / SHN5310GYYMB4561 / SHN5250GYYMB434 / SHN5250GRYMB434 / SHN5250GYYMB4341 / SHN5320GYYMCBA4 / SHN5320GYYMCBA3 / SHN5251GYYLJ469 / SHN5250GYYLJ469 / SX5316GYYGM456 / SX5256GYYMN434
Body Brand: SHACMAN
Others: Extended semi-high roof (H), cab hydraulic suspension, air driver seat, electric AC, electric power windows, front exhaust with flame arrestor, metal bumper, two-step entry, domestic clutch, hazardous material sign, desert air filter, domestic 4-channel ABS, 165Ah maintenance-free battery, spare tire carrier, Tianxingjian Zhiya BD onboard terminal, hazardous material placard, front disc brake, ECU speed limiter, 2Kg fire extinguisher, electromagnetic master switch, aluminum fuel tank, QH50 flange PTO / Extended semi-high roof (H), cab hydraulic suspension, air driver seat, manual tilt, metal bumper, three-step entry, electric AC, electric power windows, domestic clutch, domestic 6-channel ABS, tubular front exhaust with flame arrestor (WP9H: box-type aftertreatment with front exhaust), 165Ah maintenance-free battery, spare tire carrier, aluminum air tanks, Tianxingjian Zhiya BD onboard terminal, hazardous material placard, front disc brake, ECU speed limiter, 2Kg fire extinguisher, electromagnetic master switch, aluminum fuel tank, aluminum housing transmission, rear 5-bag air suspension, lightweight steel rims, QH50 flange PTO / Extended semi-high roof (H), cab hydraulic suspension, air driver seat, manual tilt, metal bumper, three-step entry, electric AC, electric power windows, domestic clutch, domestic 4-channel ABS, tubular front exhaust with flame arrestor (WP9H: box-type aftertreatment with front exhaust), 165Ah maintenance-free battery, spare tire carrier, aluminum air tanks, Tianxingjian Zhiya BD onboard terminal, hazardous material placard, front disc brake, ECU speed limiter, 2Kg fire extinguisher, electromagnetic master switch, aluminum fuel tank, aluminum housing transmission, lightweight steel rims, QH50 flange PTO / Standard cab (M), hydraulic cab suspension, air suspension driver seat, manual tilt, metal bumper, three-step entry, electric AC, electric windows, domestic clutch, domestic four-channel ABS, tubular front exhaust with spark arrestor, 165Ah maintenance-free battery, spare tire carrier, aluminum air tank, Tianxingjian Zhiya Edition BD onboard terminal, hazardous material placard, front disc brake, ECU speed limiter, 2kg fire extinguisher, electromagnetic master switch, aluminum fuel tank, lightweight steel wheel rim, WP6 model standard QD40J flange PTO / Cab hydraulic suspension; air driver seat; electric air conditioning; power windows; highway bumper; domestic steering gear; Φ430 clutch; front-mounted exhaust pipe (with flame arrestor); hazardous material placard; domestic ABS (four-channel); 165Ah standard battery (WP7 engine standard 135Ah battery); electromagnetic master power switch; ECU speed limiter; spare tire carrier; rear underrun guard; Tianxingjian Zhiya Edition BD onboard terminal; 2Kg fire extinguisher; front axle disc brake; QH50 PTO / Cab hydraulic suspension; air driver seat; electric air conditioning; power windows; highway bumper; domestic steering gear; Φ430 clutch; front-mounted exhaust pipe (with flame arrestor); hazardous material placard; domestic ABS (four-channel); electromagnetic master power switch; ECU speed limiter; spare tire carrier; rear underrun guard; Tianxingjian Zhiya Edition BD onboard terminal; 2Kg fire extinguisher; front axle disc brake; QH50 PTO Extended flat-top cab; metal bumper; central locking (with remote); 400L aluminum fuel tank; delete QH50 PTO; 8JS118T-B+MAN 11.5T dual reduction 4.625
Engine parameters
Injection System: Common Rail (China IV)
Engine Brand: Weichai
Engine Model: WeichaiWP8.340E51 / WeichaiWP9H336E50 / WeichaiWP7.300E51 / WeichaiWP6.220E50 / WeichaiWP10.336E53 / WeichaiWP10.336E40 / WeichaiWP7.300E40 / WeichaiWP7.270E40 / WeichaiWP10.300E40 / WeichaiWP10.270E40 / WeichaiWP10.290E40
Number of cylinders: 6cylinder
Displacement: 7.8 / 8.8 / 7.47 / 6.75 / 9.7 / 7.14 / 9.726L
Emission standard: China V / China IV
Max output power: 250 / 247 / 220 / 162 / 221 / 199 / 213kW
Max hp: 340 / 336 / 300 / 220 / 270 / 290Horsepower
Max torque: 1400 / 1600 / 1250 / 850 / 1550 / 1500 / 1100 / 1390 / 1270 / 1420N·m
Max torque speed: 1200-1700 / 1000-1400 / 1200-1600 / 1200-1500 / 1300-1600rpm
Rated speed: 2100 / 1900 / 2300rpm
Engine Type: High-pressure common rail+EGR / Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronic high-pressure common rail, SCR
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000 / SHACMAN Delong
Chassis Model: SX5320GYYMB6 / SX5310GYYMB6 / SX5250GYYMB4 / SHN5320GYYMCBA3 / SX5256GYYMJ469 / SX1316GM466 / SX1256MM434
Front axle description: 7.5T / 5.5T / MAN5.5T
Frame Dimensions: 850×270(8) / 850×300(8+5) / 850×270×(8+4) / 870×250×(7+4) / 850×270mm
Steering gear: Domestic
Transmission Parameters
Number of gears: 10 / 12 / 9 / 8Gear
Transmission Model: Fast Gear10JSD140TB / Fast Gear12JSD160TA / Fast GearRTD11509C / Fast Gear9JS135 / Fast Gear9JSD135 / Fast Gear12JSD160T / Fast Gear8JS85E-C / Fast Gear8JS118
Cab parameters
Cab: Extended semi-high roof (H) / Standard Cab (M) / Extended high roof / Narrow flat roof

FAQ

What kind of truck is SHACMAN SHACMAN Delong New M3000 Heavy Truck fuel tanker truck?

SHACMAN SHACMAN Delong New M3000 Heavy Truck is an export-oriented fuel tanker truck lineup with about 31 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for SHACMAN Delong New M3000 Heavy Truck fuel tanker?

SHACMAN Delong New M3000 Heavy Truck fuel tanker export reference is about $36,569 – $50,764. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does SHACMAN Delong New M3000 Heavy Truck fuel tanker cover?

SHACMAN Delong New M3000 Heavy Truck fuel tanker mainly covers: Drive: 6x4 / 8x4; Horsepower: 300 hp / 336 hp / 340 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in SHACMAN Delong New M3000 Heavy Truck fuel tanker?

For SHACMAN Delong New M3000 Heavy Truck fuel tanker: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is fuel tanker truck typically used for?

fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does SHACMAN Delong New M3000 Heavy Truck fuel tanker include?

SHACMAN Delong New M3000 Heavy Truck fuel tanker currently lists about 31 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for SHACMAN Delong New M3000 Heavy Truck fuel tanker?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.

Related series

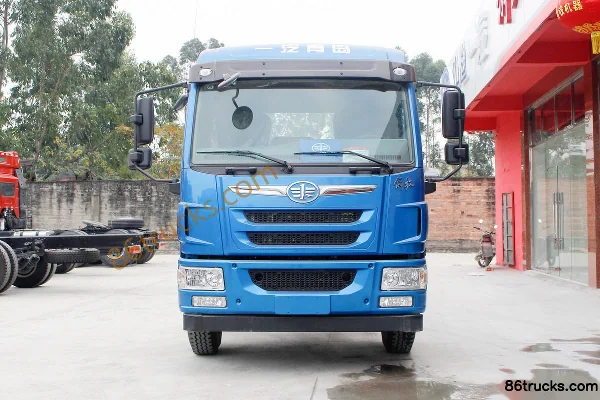

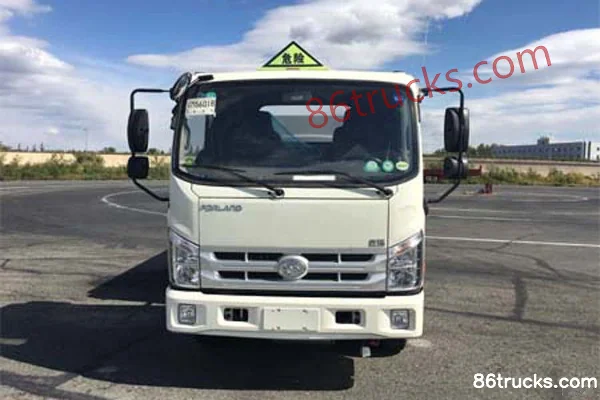

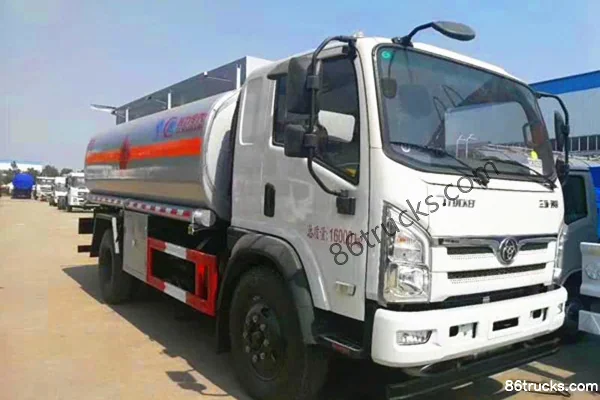

Luping Machine Luping Machine Foton Shidai Chassis fuel tanker truck Luping Machine Foton Shidai Chassis fuel tanker truck Luping Machine · 1 models Xiyu Xiyu FAW Jiefang Qingdao chassis fuel tanker truck Xiyu FAW Jiefang Qingdao chassis fuel tanker truck Xiyu · 2 models Chengliwei Chengliwei Sanhuan Shitong Chassis fuel tanker truck Chengliwei Sanhuan Shitong Chassis fuel tanker truck Chengliwei · 1 models JAC Gallop JAC Gallop K3 Heavy Truck fuel tanker truck JAC Gallop K3 Heavy Truck fuel tanker truck JAC Gallop · 2 models

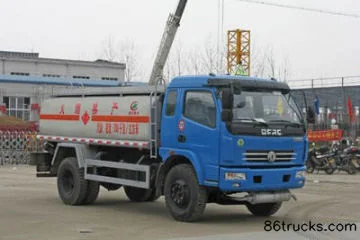

Chengliwei Chengliwei Dongfeng Chassis fuel tanker truck Chengliwei Dongfeng Chassis fuel tanker truck Chengliwei · 2 models
