Dongfeng Lituo 4108 130 hp 4X2(6 wheels) 4.2m dump truck (Φ160 engineering top)
EXW
Export quote
Dongfeng4108 light truck Dump Trucks
Main model photos
31 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Lituo 4108 130 hp 4X2(6 wheels) 4.2m dump truck (Φ160 engineering top) | 4x2 / 130hp / China IV | ||
| Dongfeng Lituo 4108 130hp 4X2(6 wheels) 3.75m Dump Truck (Φ110 Dual Lift) | 4x2 / 130hp / China IV | ||
| Dongfeng Lituo 130hp 4X2(6 wheels) 3.85m Dump Truck | 4x2 / 130hp / China III / Euro III | ||
| Dongfeng Lituo 130 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 130hp / China III / Euro III |

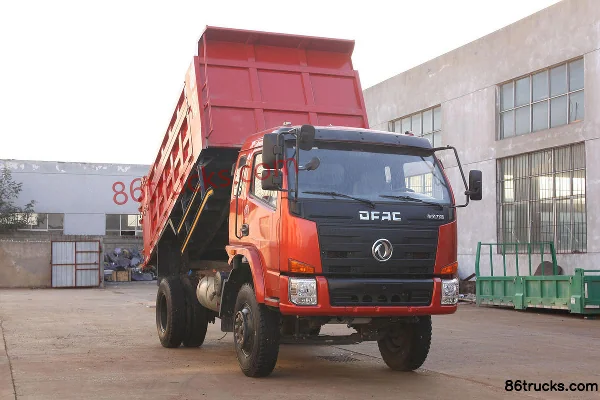

Dongfeng Lituo 4108 130hp 4X2(6 wheels) 3.75m Dump Truck (Φ110 Dual Lift)
EXW
Export quote

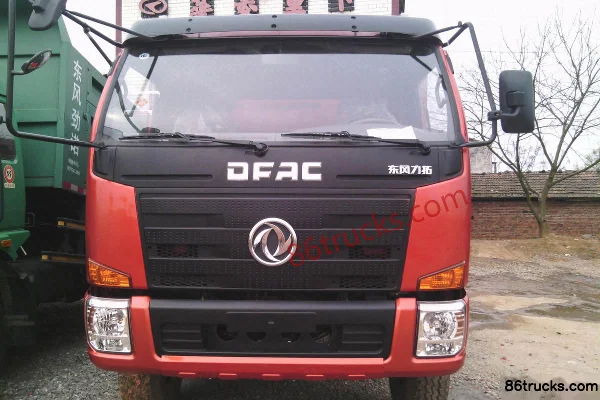

Dongfeng Lituo 130hp 4X2(6 wheels) 3.85m Dump Truck
EXW
Export quote
Dongfeng Lituo 130 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3042GDAC / EQ3048GD4AC / EQ3054GD4AC
Drive type: 4X2
Wheelbase: 3700 / 3400mm
Engine Model: YuchaiYC4D130-45 / YuchaiYC4D130-33 / YuchaiYC4D130-30
Transmission Model: WLYWLY653H / WLYWLY8D60 / Jiangkai 653 auxiliary rear
Rear Axle Ratio: 6.833 / 6.5
Cab length: 5.998 / 5.975 / 5.98 / 6.55m
Cab width: 2.25 / 2.36 / 2.42m
Cab height: 2.68 / 2.84m
Front track width: 1640 / 1910/1779mm
rear track: 1650 / 1800/1725mm
Curb Weight: 2.7 / 2.585 / 3.3ton
Rated payload: 1.6 / 7.99 / 1.49 / 1.95ton
GVWR: 4.495 / 4.27 / 5.445ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 31 / 30°
departure angle: 16 / 14°
Remarks: Φ160 engineering top; differentiated option; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V / Φ110 dual lift; optional differential; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.214L
Emission standard: China IV / China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump EGR + POC + DOC / Vertical, inline, water-cooled, four-stroke, direct injection
Technology route: Unit pump DOC POC
Transmission Parameters
Transmission Brand: WLY / Jiangkai
shift method: Manual
Forward gears: 6 / 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 4.2 / 3.75 / 3.85m
Cargo box width: 2.2m
Cargo box height: 1.2 / 0.8m
fuel tank
Fuel tank capacity: 140L
FAQ
What kind of truck is Dongfeng Dongfeng4108 light truck Dump Trucks?
Dongfeng Dongfeng4108 light truck is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng4108 light truck Dump Trucks cover?
Dongfeng4108 light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng4108 light truck Dump Trucks?
For Dongfeng4108 light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng4108 light truck Dump Trucks include?
Dongfeng4108 light truck Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng4108 light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
