Meizhou NRZM10010 10-ton drum center-axle trailer axle
EXW
Export quote
BPW Trailer Axle
Main model photos
49 photos
Models
On sale
Meizhou HZM10010 10-ton drum center-axle trailer axle
EXW
Export quote
Meizhou HSM10010 10-ton drum center-axle trailer axle
EXW
Export quote

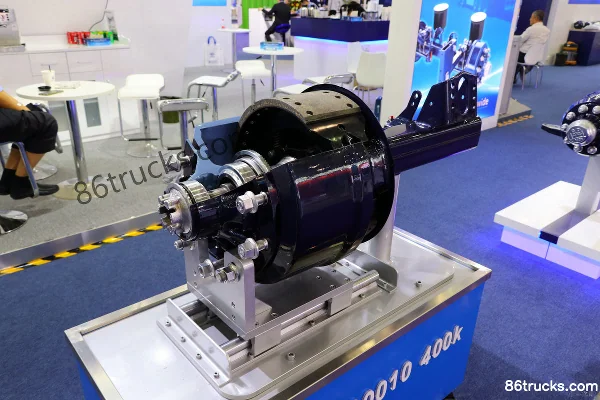

Meizhou HSM10010 Trailer Axle (Self Weight 330kg)
EXW
Export quote

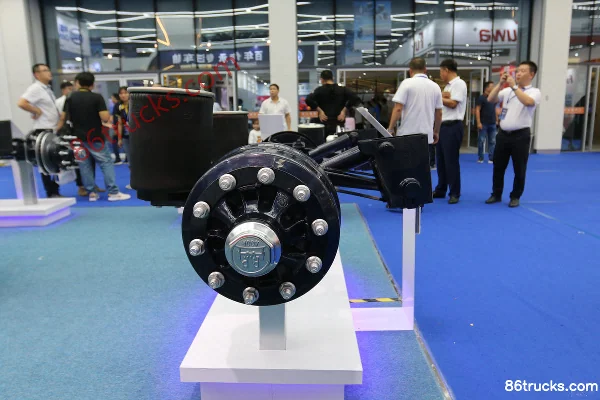

Meizhou HZM10010 Trailer Axle (Self Weight 320kg)
EXW
Export quote
Series Specs
Basic Info
Axle Model: NRZM10010 / HZM10010 / HSM10010 / Meizhou HSM10010 / KHSM10008 / KHZM10008 / SHSM10010 400K / SHZM10010 400K / SHSM12010 400K / SHZM12010 400K / Meizhou SHSM9010 ECO-P3 / NRSM10010 / NRSM12010 / HZM13010 / HZM18010 / HZM20010 / SHSF-9010-15 ECO Plus2 / HZM14010-1 / Meizhou NRZM12010 / Meizhou NRZM10010 / Meizhou HZM20010 / Meizhou HZM16010 / Meizhou HZM10010 / Meizhou HZM14010 / Meizhou HZM13010 / Meizhou HZM12010
Axle Type: Trailer axle
Application Scope: For trailers used in transporting boxed bulk cargo, large items, and car carriers. / Express logistics large-volume box truck, center-axle box truck, and side-curtain truck, etc. / For leaf spring suspension / For leaf spring suspension. / For leaf spring suspension; to prevent interference between lightweight brake drums and 20" steel rims, 10t axles must not be fitted with size 20
Applicable Tire: 235/75R17.5 / 11R22.5 / 425/65R22.5 / 11R22.5;12R22.5 / 285/70R19.5;445/45R19.5 / 12R22.5 / 10R22.5/11R22.5 / 235/75R17.5;265/70R19.5;445/45R19.5 / 11.0-20；12.0-20；11R20/22.5;12R20 / 12R20 / 12.00-20 12R20/22.5 13R20 / 12.00-20，1R20/22.5，13R22.5 / 12.0-20 12R20/22.5 13R20
Front/rear track width: 2000 / 1880 / 2100 / 2040 / 1820 / 1840 / 1950mm
Rated axle load: 10000 / 12000 / 9000 / 13000 / 18000 / 20000 / 14000 / 16000ton
Brake: Drum Type / Single tire brake; SN4218 / Twin-tire brake;SN4218 / Single tire brake; SN3620 / Twin-tire brake;SN3620 / Single disc brake; TSB4309 / Single disc brake; TSB4312 / Twin-plate brake;TSB4309 / Twin-plate brake;TSB4312 / Disc brake / drum brake / SN4220 / SN4218
Brake size: SN3020 / SN4218 / Φ430mm×45mm / Φ430X45 / SN4220 / SN4222 / Brake chamber center distance: 368mm / Brake chamber center distance: 367mm; SN4220 / Brake chamber center distance: 417mm
curb weight: 330 / 320 / 335 / 325 / 317 / 328 / 307 / 318 / 342 / 327 / 340 / 350 / 303 / 313 / 385 / 488 / 315 / 305 / 422 / 476 / 310 / 298 / 443 / 434 / 372 / 355kg
Rim Used: 17.5/19.5/15 / 22.5 / 19.5 / 17.5/19.5 / 20/22.5 / 20 / 20-inch, 22.5
Wheel Bolts: 10xM22x1.5 / 8×M22×1.5 / Φ335-10×M22×1.5 / 10×M24×1.5 / Φ280.8-10×M24×1.5 / 10xM44x1.5 / 10XM22X1.5/10XM24X1.5mm
Remarks: Recommended suspension center distance: 1200mm; Axle length: 2389mm; Brake chamber center distance GM: 597mm; Inner length: 1555 / Recommended suspension center distance: 900mm; Axle length: 2149mm; Brake chamber center distance GM: 463mm; Inner length: 1315 / Recommended suspension center distance: 1200mm; Brake chamber center distance: 549mm / Recommended suspension center distance: 900mm; Brake chamber center distance: 415mm / Recommended suspension center distance: 900/1200mm; Axle length: 2389mm / Recommended suspension center distance: 900/1200mm; Axle length: 2169mm / Recommended suspension center distance: 900-950mm; Recommended spring width: ≥90; Axle length: 2149mm / Recommended suspension center distance: 1200mm; Recommended spring width: ≥90; Axle length: 2389mm / Recommended suspension center distance: 900mm; Recommended spring width: ≥90; Axle length: 2149mm / Recommended suspension center distance: 900mm; Recommended spring width: ≥90; Axle length: 2252mm / Recommended suspension center distance: 900/1200mm; Recommended spring width: ≥90; Axle length: 2389mm / Recommended suspension center distance: 900mm; Recommended spring width: ≥90; Axle length: 2169mm / Air chamber center distance: 366mm; axle length: 2177mm / Advantages of low-platform axle: 1. Light weight: over 70 kg lighter than standard axle, ideal for lightweight requirements. 2. Low height: lower cargo platform height, compatible with 15 / 1. The square axle beam uses European standard high-quality steel and is manufactured with special processes, providing stronger load capacity. The axle beam load capacity is 1.8 times that of a 13t axle. 2. The hub system uses heavy-duty tapered roller bearings, offering longer service life and stronger load capacity under heavy loads. 3. After rigorous bench testing and repeated vehicle trials, the axle can operate efficiently for long periods on heavy-duty vehicles. 4. The brake drum's unique heat dissipation rib design, combined with BPW-specific brake shoes, provides strong and stable braking force, low thermal fade, and good braking feel, ensuring safe and reliable braking performance. 5. BPW-specific brake shoes have a long service life, more than twice that of other brake shoes under the same conditions. 6. BPW-specific grease maintains good consistency and lubrication effect from -30°C to 150°C, extending bearing life by over 20%. / 1. Compared to standard axles, BPW 10t lightweight axles reduce weight by 30-50kg per axle. When paired with a lightweight suspension and lightweight frame, they achieve even greater weight reduction. Under the conditions of new national traffic regulations, this effectively improves vehicle load capacity. 2. Optional ECO wheel hub system. 3. Brake shoes made with BPW's proprietary formula perfectly match the brake drum, ensuring excellent braking performance. 4. BPW axles feature a unique 1° camber design, effectively reducing tire wear and lowering fuel consumption. Longer maintenance intervals save labor, material costs, and vehicle downtime. / 1. Integrated axle hub cap, easy to install and remove, convenient for maintenance, also serves as oil reservoir. 2. High load capacity, long life, low rolling resistance bearings, compact and lightweight structure. 3. Axle designed with 1° camber for better tire load distribution. 4. Special lubricant maintains good film uniformity and lubrication effect under all climate conditions. 5. Bearing seal uses floating oil slinger ring design for easy installation and reliable sealing. 6. Soft non-asbestos long-life brake linings provide smooth braking, high friction, and good thermal stability. 7. Bayonet connection between brake shoe and anchor pin for easy installation, automatic compensation, and quick release. 8. Locally reinforced square axle beam with high torsional and bending section modulus for strong torsional and bending resistance.
