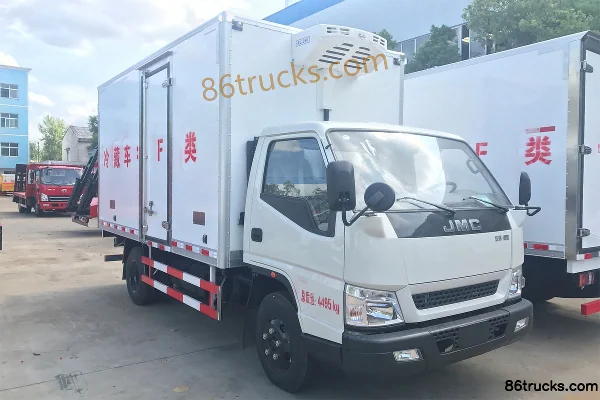

JMC Kairui 800H 152hp 4X2(6 wheels) 5.15m Refrigerated Truck (Jiangte Brand)
EXW
From $17,778
Export quote
Jiangte JMC chassis Refrigerated Truck
Main model photos
24 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Kairui 800H 152hp 4X2(6 wheels) 5.15m Refrigerated Truck (Jiangte Brand) | 4x2 / 152hp / China V | From $17,778 | |
| JMC Xinshunda 116hp 4X2(6 wheels) 4.1m Refrigerated Truck (Jiangte Brand) | 4x2 / 116hp / China V | From $12,333 | |
| JMC Shunda 116hp 4X2(6 wheels) 4.05m Refrigerated Truck (Jiangte Brand) | 4x2 / 116hp / China V | From $27,333 | |
| JMC Shunda 116hp 4X2(6 wheels) Refrigerated Truck (Jiangte Brand) | 4x2 / 116hp / China III / Euro III | From $19,028 |
JMC Xinshunda 116hp 4X2(6 wheels) 4.1m Refrigerated Truck (Jiangte Brand)
EXW
From $12,333
Export quote
JMC Shunda 116hp 4X2(6 wheels) 4.05m Refrigerated Truck (Jiangte Brand)
EXW
From $27,333
Export quote
JMC Shunda 116hp 4X2(6 wheels) Refrigerated Truck (Jiangte Brand)
EXW
From $19,028
Export quote
Series Specs
Basic Info
Cab dimensions: 7.22×2.39×3.17 / 5.995×2.02×2.98 / 5.995×2.28×3.15 / 5.995×1.95×2.9m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei / Hubei
Wheelbase: 3815 / 3360mm
Front track width: 1680 / 1385mm
rear track: 1640 / 1425 / 1570mm
Curb Weight: 4.07 / 2.92 / 3.2 / 3.16ton
Rated payload: 3.945 / 1.445 / 1.1 / 2.5ton
Max. speed: 100 / 95km/h
Front/rear suspension: 1.155/2.25 / 1.065/1.53 / 1.14/1.495 / 1.015/1.45m
Energy Type: Diesel
Engine parameters
Engine Model: Nanchang JMC JX4D30A5H / Nanchang JMC JX493ZLQ5 / JMCJX493ZLQ5A / JMCJX493ZLQ3
Number of cylinders: 4cylinder
Displacement: 2.892 / 2.771L
Emission standard: China V / China III / Euro III
Max output power: 112 / 85kW
Max hp: 152 / 116Horsepower
Max torque: 382 / 285 / 278N·m
Rated speed: 2800 / 3800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Inline
Cargo box parameters
Box volume: 14m³
Cargo box dimensions: 5.15×2.13×2 / 4.1×1.85×1.83 / 4.05×2.06×2.01 / 4.1×1.7×1.7m
Cargo box width: 2.13 / 1.85 / 2.06 / 1.7m
Cargo box height: 2 / 1.83 / 2.01 / 1.7m
Body Parameters
Vehicle certification code: JDF5080XLCJ5 / JDF5040XLCJ5 / JDF5041XLCJ5 / JDF5060XLCJ
Body Brand: Jiangte Brand
Refrigeration unit:
Refrigeration temperature: -15°C
Chassis Specs
Chassis Brand: JMC
Chassis Series: Kairui 800 / New Shunda / Shunda Wide Body / Shunda
Chassis Model: JX1083TK25 / JX1041TG25 / JX1042TG25 / JX1060TG23
Front axle description: Payload 2950kg / Payload 1855kg / 2T
rear axle description: Payload 5260kg / Payload 2640kg / 5T
Axle ratio: 5.125
Leaf spring count: 8/7+7,9/9+8 / 7/4+6,7/5+6 / 7/5+6 / 8/9+5
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: Getrag 6-speed / JMCJC528 / Jiangchi JC526
Tire
Tire Size: 7.50R16LT 14PR / 7.00R16LT 8PR / 7.00-16，6.50-16
Number of tires: 6pcs
FAQ
What kind of truck is Jiangte Jiangte JMC chassis Refrigerated Truck?
Jiangte Jiangte JMC chassis is an export-oriented Refrigerated Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Jiangte JMC chassis Refrigerated Truck?
Jiangte JMC chassis Refrigerated Truck export reference is about $12,333 – $27,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Jiangte JMC chassis Refrigerated Truck cover?
Jiangte JMC chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 116 hp / 152 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiangte JMC chassis Refrigerated Truck?
For Jiangte JMC chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Jiangte JMC chassis Refrigerated Truck include?
Jiangte JMC chassis Refrigerated Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiangte JMC chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
