FAW Jiefang Tiger 6G Standard Load Single Cab Pure Electric Container Swap Light Truck CATL 100.464kWh 4X2(6 wheels)
EXW
From $34,139
Export quote
FAW Jiefang Hu 6G electric cargo truck
Main model photos
788 photos
Models
On sale
FAW Jiefang Tiger 6G Standard Load Single Cab Pure Electric Container Swap Light Truck FinDreams 96.25kWh 4X2(6 wheels)
EXW
From $32,472
Export quote

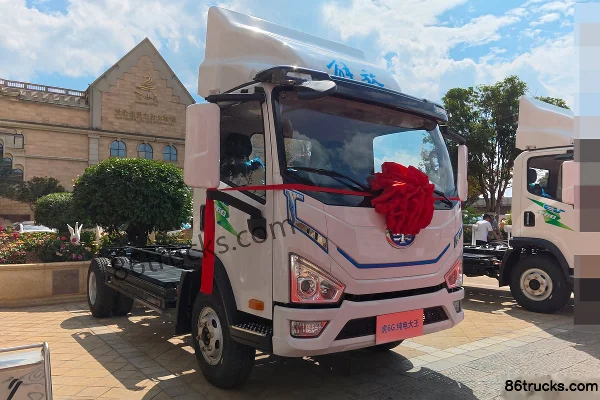

FAW Jiefang Hu 6G Heavy-Duty Edition Air Brake 4.16m Single Row Pure Electric Fence Box Light Truck Fudi 150.834kWh 4X2(6 wheels)
EXW
From $38,306
Export quote

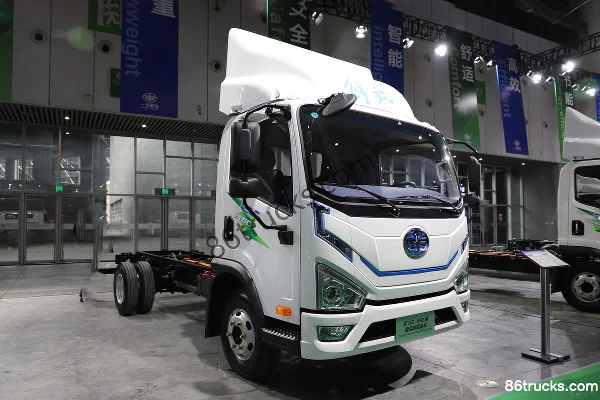

FAW Jiefang Hu 6G Composite Edition 4.16m Single Row Pure Electric Van Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $35,667
Export quote
FAW Jiefang Tiger 6G Standard Load Edition 4.16m Single Row Pure Electric Van Light Truck CATL 120.27kWh 4X2(6 wheels)
EXW
From $33,167
Export quote
Series Specs
Basic Info
Model code (announced): CA5048ZKXP40L2BEVA85 / CA5044ZKXP40L3BEVA84 / CA5110CCYP40L3BEVA84 / CA5090XXYP40L2BEVA84 / CA5090CCYP40L2BEVA84 / CA5049CCYP40L3BEVA85 / CA5048CCYP40L2BEVA85 / CA5047XXYP40L3BEVA85 / CA5047CCYP40L3BEVA85 / CA1090P40L2BEVA84 / CA1049P40L3BEVA85 / CA1048P40L2BEVA85 / CA1047P40L3BEVA85 / CA5110XXYP40L3BEVA84 / CA5096XXYP40L2BEVA85 / CA5096CCYP40L2BEVA85 / CA5049XXYP40L3BEVA84 / CA5049CCYP40L3BEVA84 / CA5046XXYP40L3BEVA85 / CA5046CCYP40L3BEVA85 / CA5044XXYP40L3BEVA84 / CA5044CCYP40L3BEVA84 / CA1096P40L2BEVA85 / CA1046P40L3BEVA85 / CA1049P40L3BEVA84 / CA1044P40L3BEVA84 / CA5040XXYP40L4BEVA84 / CA5040CCYP40L4BEVA84 / CA1040P40L4BEVA84 / CA5049ZKXP40L3BEVA85 / CA5047ZKXP40L3BEVA85 / CA5040XXYP40K1L2E6PHEVA84 / CA5049XXYP40L3BEVA85 / CA5048XXYP40L2BEVA85
Type: hooklift cargo truck / stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3400 / 3300 / 3600mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.17 / 2.2 / 2.22 / 2010 / 1895m
Cab height: 2.34 / 3.22 / 3.17 / 3.37 / 3.4 / 2.45 / 3.32 / 3.2 / 3.1 / 3.3 / 3.31 / 2.41 / 2.38 / 3.12m
CLTC range: 350 / 480km
Curb Weight: 2.77 / 4.6 / 3.91 / 3.4 / 3.15 / 3.3 / 2.94 / 3.95 / 3.12 / 2.95 / 3.64ton
Rated payload: 1.53 / 6.405 / 4.495 / 0.965 / 1.15 / 0.9 / 1.065 / 1.36 / 1 / 4.955 / 1.18 / 1.415 / 0.66ton
GVWR: 4.495 / 11.2 / 9.1ton
Max. speed: 90 / 95km/h
Origin: Qingdao, Shandong / Qingdao
tonnage class: Light Truck
Version: Standard Load Plate / Standard Load Edition / Heavy-duty version / composite version
Energy Type: Electric / Hybrid
electric motor
Motor 1 Brand: FAW Jiefang / Tebest
Motor 1 Model: CAM230PT52 / TZ380XSTPG67 / CAM270PT52 / CAM230PT54 / TZ310XS-LKM0371
Motor Type: Permanent magnet synchronous motor
total rated power: 68 / 120 / 80 / 30kW
Peak power: 147 / 185 / 180 / 65kW
total peak torque: 350N·m
Electronic Control
ECU Brand: FAW vehicle controller
Battery/Charging
Charging method: Dual-gun 2C fast charging / Fast Charge
Battery Brand: CATL / FinDreams
Battery type: Lithium Iron Phosphate Battery / Lithium manganate battery
Battery capacity: 100.464 / 96.25 / 150.834 / 140.41 / 120.27 / 100.07 / 131.98 / 100.224 / 177.56 / 165.158 / 14.02 / 82.13kWh
Engine parameters
Engine Model: CA4DT2-18E68
Number of cylinders: 4cylinder
Displacement: 2.44L
Emission standard: China VI
Max output power: 129kW
Max hp: 180Horsepower
Transmission Parameters
Transmission Model: Tebest TS-0412
shift method: AT automatic
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box volume: 20m³
Cargo box type: Van body / Stake type / stake body
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Hu 6G electric cargo truck?
FAW Jiefang FAW Jiefang Hu 6G is an export-oriented electric cargo truck lineup with about 104 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Hu 6G electric cargo truck?
FAW Jiefang Hu 6G electric cargo truck export reference is about $15,250 – $41,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Hu 6G electric cargo truck cover?
FAW Jiefang Hu 6G electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Hu 6G electric cargo truck?
For FAW Jiefang Hu 6G electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does FAW Jiefang Hu 6G electric cargo truck include?
FAW Jiefang Hu 6G electric cargo truck currently lists about 104 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Hu 6G electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
