SAIC Hongyan Jieka 350hp 8X4(12 wheels) 7.6m dump truck
EXW
From $45,833
Export quote
SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks

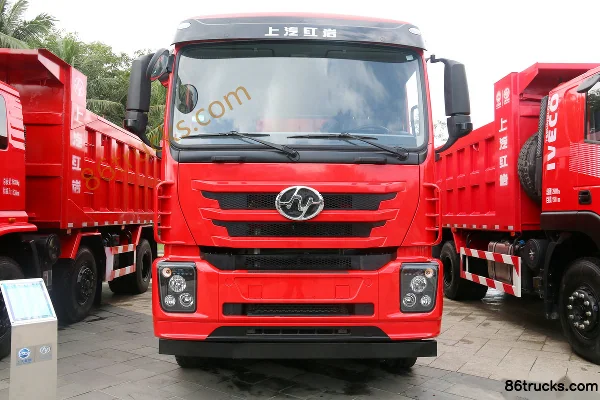

Main model photos
87 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jieka 350hp 8X4(12 wheels) 7.6m dump truck | 8x4 / 350hp / China V | From $45,833 | |
| SAIC Hongyan Jieka C500 Standard Load Edition 390 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 390hp / China V | From $43,361 | |
| SAIC Hongyan Jieka C500 Standard Load Edition 350 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 350hp / China V | From $42,181 | |
| SAIC Hongyan Jieka C500 Standard Load Edition 320 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 320hp / China V | From $41,556 | |
| SAIC Hongyan Jieka C500 Standard Load Edition 290 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 290hp / China V | From $41,347 |
SAIC Hongyan Jieka C500 Standard Load Edition 390 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $43,361
Export quote
SAIC Hongyan Jieka C500 Standard Load Edition 350 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $42,181
Export quote
SAIC Hongyan Jieka C500 Standard Load Edition 320 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $41,556
Export quote
SAIC Hongyan Jieka C500 Standard Load Edition 290 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $41,347
Export quote
Series Specs
Basic Info
Model code (announced): CQ3316ZTVG396 / CQ5316ZLJZTVG336 / CQ5316ZLJZTVG306
Drive type: 8X4
Wheelbase: 1800+3900+1400 / 1800+3000+1400 / 1800+3300+1400mm
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611B*L / SAIC Fiat Powertrain HongyanF2CCE611A*L / SAIC Fiat Powertrain HongyanF2CCE611C*L / SAIC Fiat Powertrain HongyanF2CCE611D*L
Transmission Model: Fast Gear12JSD180T / Fast Gear12JSD160TA / Fast Gear12JSD180T-AL
Rear Axle Ratio: 4.677 / 4.625
Cab length: 10.635 / 9.57 / 9.27 / 9.87m
Cab width: 2.55m
Cab height: 3.55m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 15.5 / 14.5 / 13.2ton
Rated payload: 15.37 / 17.67ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 15 / 17 / 21°
Remarks: Desert air filter, electronic fuel pump, 165Ah battery, Henglong steering gear, metal front bumper, standard telematics, optional anti-corrosion wiring harness, intercooler guard
Version: Standard Load Edition / Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Number of cylinders: 6cylinder
Displacement: 8.709L
Emission standard: China V
Max output power: 257 / 287 / 235 / 215kW
Max hp: 350 / 390 / 320 / 290Horsepower
Max torque: 1500 / 1600 / 1400N·m
Max torque speed: 1100-1500rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, turbocharged, high-pressure common rail / Electronic high-pressure common rail system
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.6 / 6.5 / 6 / 6.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks?
SAIC Hongyan SAIC Hongyan Jieka Medium-heavy Truck is an export-oriented Dump Trucks lineup with about 15 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks?
SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks export reference is about $41,208 – $45,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks cover?
SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 290 hp / 320 hp / 350 hp / 390 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks?
For SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks include?
SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks currently lists about 15 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Jieka Medium-heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
