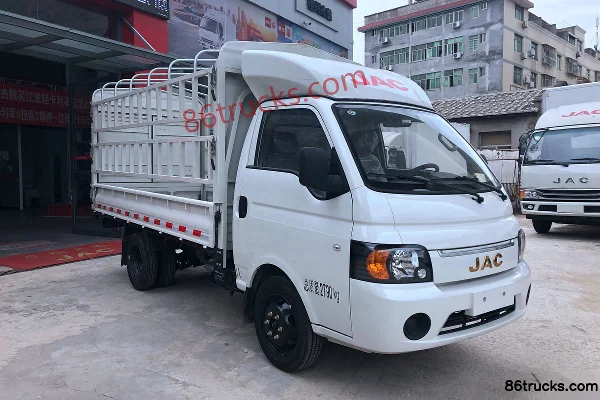

JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.5m Single Row Stake Van Mini Truck
EXW
From $9,722
Export quote
JACX5 Mini Truck Cargo Trucks
Main model photos
724 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.5m Single Row Stake Van Mini Truck | 4x2 / 82hp / China VI | From $9,722 | |
| JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Stake Van Mini Truck | 4x2 / 82hp / China VI | From $10,139 | |
| JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Stake Van Mini Truck | 4x2 / 82hp / China VI | From $10,139 | |
| JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.5m Single Row Box Van Mini Truck | 4x2 / 82hp / China VI | From $9,722 | |
| JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Box Van Mini Truck | 4x2 / 82hp / China VI | From $10,139 |
JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Stake Van Mini Truck
EXW
From $10,139
Export quote
JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Stake Van Mini Truck
EXW
From $10,139
Export quote
JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.5m Single Row Box Van Mini Truck
EXW
From $9,722
Export quote
JAC X5 2.3L Diesel 82 hp 4X2(6 wheels) Xingrui 5-speed Hydraulic Brake 3.8m Single Row Box Van Mini Truck
EXW
From $10,139
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kaida X5 1.6L 120hp 4X2(6 wheels) Gasoline 3.11m Single Row Flatbed Mini Truck (China VI) | 4x2 / 120hp / China VI | ||
| JAC Kaida X5 68hp 4X2(6 wheels) 3.5m Single Row Van Light Truck | 4x2 / 68hp / China V | From $12,500 | |
| JAC Kaida X5 68 hp 4X2(6 wheels) 3.5 m single-row van micro truck | 4x2 / 68hp / China V | From $9,444 | |
| JAC Kaida X5 68 hp 4X2(6 wheels) 3.5 m single-row van micro truck | 4x2 / 68hp / China V | From $11,806 | |
| JAC Kaida X5 68 hp 4X2(6 wheels) 3.5m Single Row Flatbed Mini Truck | 4x2 / 68hp / China V | From $10,417 |
JAC Kaida X5 1.6L 120hp 4X2(6 wheels) Gasoline 3.11m Single Row Flatbed Mini Truck (China VI)
EXW
Export quote
JAC Kaida X5 68hp 4X2(6 wheels) 3.5m Single Row Van Light Truck
EXW
From $12,500
Export quote
JAC Kaida X5 68 hp 4X2(6 wheels) 3.5 m single-row van micro truck
EXW
From $9,444
Export quote
JAC Kaida X5 68 hp 4X2(6 wheels) 3.5 m single-row van micro truck
EXW
From $11,806
Export quote
JAC Kaida X5 68 hp 4X2(6 wheels) 3.5m Single Row Flatbed Mini Truck
EXW
From $10,417
Export quote
Series Specs
Basic Info
Model code (announced): HFC5040CCYPV3K2C1S / HFC5040CCYPV3K1C1S / HFC5040XXYPV3K2C1S / HFC1040PV3K2C1S / HFC1040PV3K1C1S / HFC5040XXYPV3K1C1S / HFC5030XLJSZ / HFC5036XXYPV3E6C1S-2 / HFC5036XXYPV3E5C1S-2 / HFC5036XXYPV3E4C1S-3 / HFC5036XXYPV3E4C1S-2 / HFC5036CCYPV3E4C1S-3 / HFC5036XXYPV3E8B3S / HFC5036CCYPV3E8B3S / HFC1036PV3E4C1S-3 / HFC1030PV4E6B4S-2 / HFC1036PV3E8B3S / HFC5030XYKPV4E6B4S-2 / HFC5036XXYPV3E3C1S-2 / HFC1036PV3E2B4S-2 / HFC1036PV3E2B4S / HFC1036PV3E1B4S / HFC5036XXYPV3E2B4S-2 / HFC5036XXYPV3E2B4S / HFC5036XXYPV3E1B4S-2 / HFC5036XXYPV3E1B4S / HFC5036CCYPV3E2B4S-2 / HFC5036CCYPV3E2B4S / HFC1040PV4K2B4S / HFC1030PV4E6B4S / HFC1040PV4K1B4S / HFC1030PV4E5B4S-2 / HFC5040XXYPV4K2B4S / HFC5040XXYPV4K1B4S / HFC1030PV4E5B4S / HFC1030PV4E4B3S / HFC1030PV4E3B4S-2 / HFC5036XYKPV3E2B4S
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2850 / 2600 / 3100mm
Box length class: 3.5 / 3.8 / 3.1m
Engine Model: QuanchaiQ23-95E60 / JACHFC4GB3-3E / Yunnei PowerG16MPI / DonganDAM16KL / QuanchaiG18-135E60 / QuanchaiQ23A-82E60
Transmission Model: Xingrui LC5T28 / LandaiLD516AR / JACML515A / DonganDAT18R / 5-speed gearbox / Xingrui LC5T18
Rear Axle Ratio: 4.875 / 5.375
Cab length: 5.875 / 5.57 / 5.72 / 5.18 / 5.575 / 5.8 / 5.87m
Cab width: 1.88 / 1.885 / 1.98 / 1.865 / 1.85 / 1.71 / 1.765 / 1.965 / 1.815 / 1.87 / 1.875 / 1.86 / 1626m
Cab height: 2.35 / 2.65 / 2.07 / 2.63 / 2.93 / 2.75 / 2.7 / 2.6m
Front track width: 1375 / 1350 / 1370mm
rear track: 1402 / 1405 / 1330 / 1332 / 1335mm
Curb Weight: 2.175 / 2.2 / 1.925 / 2.215 / 2.75 / 1.75 / 1.98 / 1.89 / 2.015 / 1.74 / 1.73 / 1.57 / 1.84 / 1.665 / 1.95 / 1.97 / 1.87 / 1.885 / 1.595 / 2.135ton
Rated payload: 1.495 / 1.835 / 1.249 / 1.995 / 1.795 / 0.745 / 0.995 / 1.475 / 1.05 / 1.625 / 1.635 / 1.7 / 1.4 / 1.415 / 1.095 / 1.245ton
GVWR: 3.8 / 4.14 / 3.579 / 3.55 / 4.05 / 3.495 / 2.625 / 3.105 / 3.195 / 3.465 / 3.51 / 2.72ton
Max. speed: 100 / 105km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 21 / 19 / 20 / 18 / 19.6 / 19.5°
departure angle: 19 / 16 / 15 / 14.8 / 16.5 / 17.6°
Remarks: Optional: metallic paint, leather seats; / Optional: metallic paint, leather seats
Front/rear suspension: 1.185/1.535 / 1.185/1.59 / 1.185/1.705 / 1.185/1.685 / 1.185/1.395 / 1.185/1.54 / 1.21/1.59 / 1.21/1.565 / 1.185/1.345m
Version: Dream Edition / Youth version
Energy Type: Diesel / gasoline
Engine parameters
Engine Brand: Quanchai / JAC / Yunnei Power / Dongan
Engine info: Quanchai2.3L / RuiJete 1.6L / Yunnei 4-cylinder / Dongan gasoline 1.6L / Quanchai1.8L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.3 / 1.59 / 1.597 / 1.793L
Emission standard: China VI
Max output power: 60 / 88 / 90 / 96 / 70kW
Max hp: 82 / 120 / 122 / 130 / 95Horsepower
Max torque: 240 / 155 / 153 / 158 / 182N·m
Max torque speed: 2000 / 3500-4500 / 4400 / 4000rpm
Rated speed: 2800 / 6000 / 5600 / 3000rpm
Engine Oil Change Interval: 10,000 km after first service
Transmission Parameters
Transmission Brand: Xingrui / Landai / JAC / Dongan
shift method: Manual / AT automatic
Forward gears: 5Gear
FAQ
What kind of truck is JAC JACX5 Mini Truck Cargo Trucks?
JAC JACX5 Mini Truck is an export-oriented Cargo Trucks lineup with about 297 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACX5 Mini Truck Cargo Trucks?
JACX5 Mini Truck Cargo Trucks export reference is about $4,444 – $21,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACX5 Mini Truck Cargo Trucks cover?
JACX5 Mini Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 68 hp / 82 hp / 120 hp; Emission: China V / China VI; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACX5 Mini Truck Cargo Trucks?
For JACX5 Mini Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JACX5 Mini Truck Cargo Trucks include?
JACX5 Mini Truck Cargo Trucks currently lists about 297 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACX5 Mini Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
