SAIC Fiat Powertrain Hongyan F1C.145 145hp 3L China V Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan F1C Series engine
Main model photos
10 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Fiat Powertrain Hongyan F1C.145 145hp 3L China V Diesel Engine | 145hp / China V | ||
| SAIC Fiat Powertrain Hongyan F4AE3481E*P 140 hp 3.92L China IV Diesel Engine | 140hp / China IV | ||
| SAIC Fiat Powertrain Hongyan F1CE0481P 146 hp 3L Diesel Engine | 146hp / China III / Euro III | ||
| SAIC Fiat Powertrain Hongyan F1C.170 170hp 3L China V Diesel Engine | 170hp / China V | ||
| SAIC Fiat Powertrain Hongyan F1C.180 180hp 3L Diesel Engine | 180hp / China III / Euro III |
SAIC Fiat Powertrain Hongyan F4AE3481E*P 140 hp 3.92L China IV Diesel Engine
EXW
Export quote
SAIC Fiat Powertrain Hongyan F1CE0481P 146 hp 3L Diesel Engine
EXW
Export quote

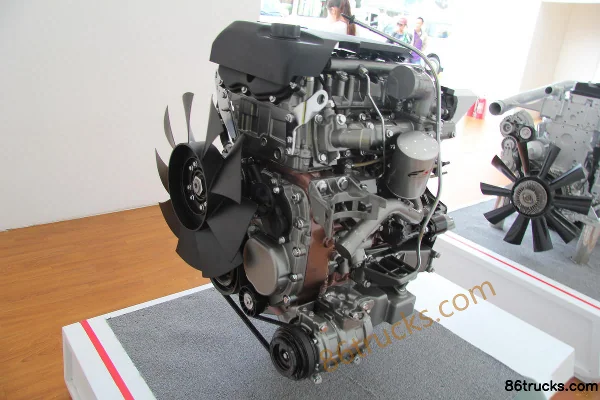

SAIC Fiat Powertrain Hongyan F1C.170 170hp 3L China V Diesel Engine
EXW
Export quote

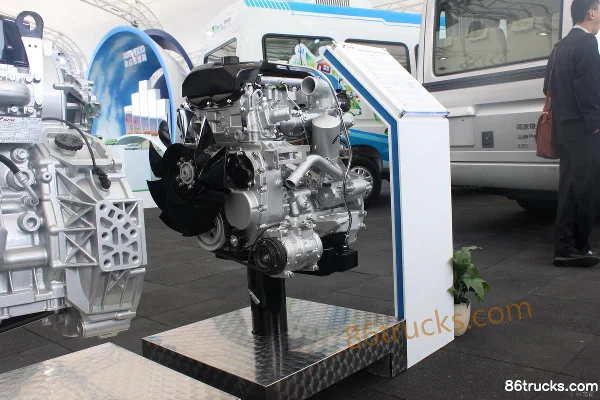

SAIC Fiat Powertrain Hongyan F1C.180 180hp 3L Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: SAIC Fiat Powertrain Hongyan F1C Series
Engine manufacturer: SAIC Fiat Hongyan Powertrain Co., Ltd.
Suitable Range: For Trucks
Intake type: Electronically controlled variable geometry turbocharger / Variable geometry turbocharger / Exhaust turbocharger
Min. fuel consumption at full load: 205g/kW.h
Engine net weight: 250 / 247kg
Engine Dimensions: 718×725×809 / 700X655X800mm
noise at 1m: 94dB
Bore × Stroke: 95.8x104mm
Valves per cylinder: 4pcs
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: F1C.145 / F4AE3481E*P / F1CE0481P / F1C.170 / F1C.180 / F1C.150
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3 / 3.92 / 2.998L
Emission standard: China V / China IV / China III / Euro III
Max output power: 107 / 103 / 125 / 132 / 112kW
Max hp: 145 / 140 / 146 / 170 / 180 / 150Horsepower
Max torque: 370 / 400 / 350N·m
Max torque speed: 1500-2800 / 1450-3100 / 1500 / 1400-2800rpm
Rated speed: 3500rpm
Engine Type: Inline 4-cylinder, 4-valve, electronic high-pressure common rail
FAQ
What kind of truck is SAIC Fiat Powertrain Hongyan SAIC Fiat Powertrain Hongyan F1C Series engine?
SAIC Fiat Powertrain Hongyan SAIC Fiat Powertrain Hongyan F1C Series is an export-oriented engine lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SAIC Fiat Powertrain Hongyan F1C Series engine cover?
SAIC Fiat Powertrain Hongyan F1C Series engine mainly covers: Horsepower: 140 hp / 145 hp / 146 hp / 170 hp / 180 hp; Emission: China III / Euro III / China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Fiat Powertrain Hongyan F1C Series engine?
For SAIC Fiat Powertrain Hongyan F1C Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does SAIC Fiat Powertrain Hongyan F1C Series engine include?
SAIC Fiat Powertrain Hongyan F1C Series engine currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Fiat Powertrain Hongyan F1C Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
