Foton Aumark S3 156hp 4X2(6 wheels) Explosive Material Transport Truck (China VI) (Xinfei Brand)
EXW
Export quote
Henan Xinfei Foton chassis Explosives Transport

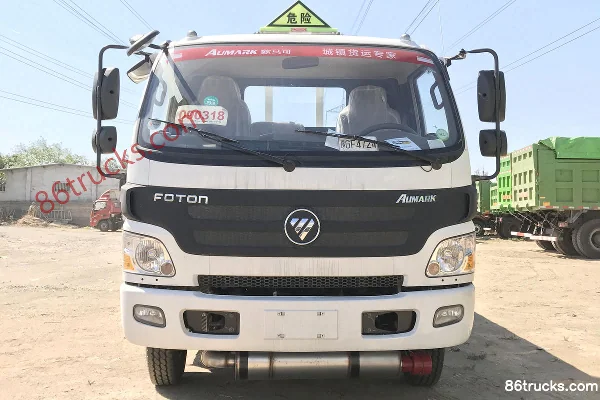

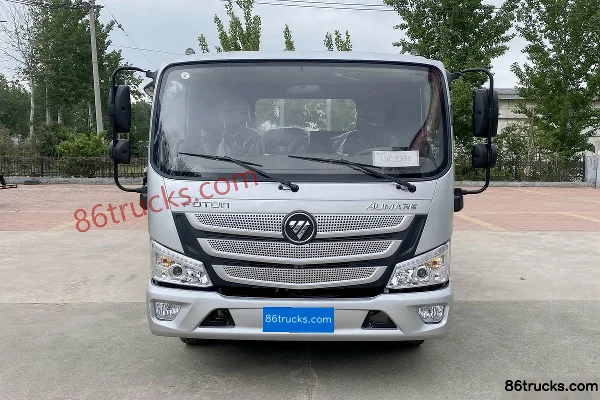

Main model photos
26 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aumark S3 156hp 4X2(6 wheels) Explosive Material Transport Truck (China VI) (Xinfei Brand) | 4x2 / 156hp / China VI | ||
| Foton Aumark S3 156hp 4X2(6 wheels) Explosive Material Transport Truck (China VI) (Xinfei Brand) | 4x2 / 156hp / China VI | From $20,889 | |
| Foton Aumark S1 131 hp 4X2(6 wheels) Flammable Gas Van Truck (China VI) (Xinfei Brand) | 4x2 / 131hp / China VI | From $16,903 | |
| Foton Aumark S1 131hp 4X2(6 wheels) flammable liquid box transport truck (China VI) (Xinfei brand) | 4x2 / 131hp / China VI | From $16,903 | |
| Foton Aumark S1 131hp 4X2(6 wheels) explosive material transport truck (China VI) (Xinfei brand) | 4x2 / 131hp / China VI | From $16,903 |
Foton Aumark S3 156hp 4X2(6 wheels) Explosive Material Transport Truck (China VI) (Xinfei Brand)
EXW
From $20,889
Export quote
Foton Aumark S1 131 hp 4X2(6 wheels) Flammable Gas Van Truck (China VI) (Xinfei Brand)
EXW
From $16,903
Export quote
Foton Aumark S1 131hp 4X2(6 wheels) flammable liquid box transport truck (China VI) (Xinfei brand)
EXW
From $16,903
Export quote
Foton Aumark S1 131hp 4X2(6 wheels) explosive material transport truck (China VI) (Xinfei brand)
EXW
From $16,903
Export quote
Series Specs
Basic Info
Cab dimensions: 7.28×2.31×3.12 / 7.07×2.16×3 / 5.995×2.16×3 / 5.995×2.24×2.41 / 5.995×2.16×2.89 / 5.995×2.19×2.9 / 5.995×2.24×2.33m
Type: Explosives Transport Truck / Flammable gas van truck / Flammable liquid van truck / Miscellaneous dangerous goods van truck / Gas cylinder transport truck
Drive type: 4X2
Wheelbase: 3800 / 3360mm
Front/rear track width: Front: 1705mm; Rear: 1615 / Front: 1710mm; Rear: 1615 / Front: 1590mm; Rear: 1485 / Front: 1730mm; Rear: 1590 / Front track: 1665mm; Rear track: 1525
Rated mass: 6.85 / 4.85 / 0.9 / 1.33 / 4.2 / 1.2 / 0.99ton
GVWR: 11.995 / 9.995 / 4.495 / 8.275ton
Max. speed: 80km/h
Front/rear suspension: 1.13/2.1 / 1.13/2.14 / 1.11/1.525 / 1.095/1.54m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: Black powder, compressed black powder, electric detonator, blasting explosive, special pyrotechnic articles / flammable gas
Vehicle certification code: XKC5120XQY6B / XKC5100XQY6B / XKC5040XRQ6B / XKC5045XRY6B / XKC5045XQY6B / XKC5045XZW6B / XKC5045TQP6B / XKC5080XQY6B / XKC5041XQY5B / XKC5040TQP5B
Body Brand: Xinfei Brand
Engine parameters
Engine Brand: Foton
Engine Model: FotonF3.8NS6B156 / FotonF2.8NS6B131 / FotonF2.8NS6B156 / FotonISF2.8s5129T / FotonISF3.8S5141
Number of cylinders: 4cylinder
Displacement: 3.8 / 2.78 / 3.76L
Emission standard: China VI / China V
Max output power: 115 / 96 / 105kW
Max hp: 156 / 131 / 143Horsepower
Max torque: 310 / 440 / 300N·m
Max torque speed: 1100-1900 / 1100-2800 / 1500-2400 / 1500-2900rpm
Rated speed: 2600 / 2900rpm
Cargo box parameters
Cargo box dimensions: 5×2.05×1.75 / 4.06×2.05×1.95 / 4.12×2.05×0.55 / 4.06×2.05×1.75 / 4.13×2.05×2m
Chassis Specs
Chassis Brand: Foton
Chassis Series: S3 / Auman S3 / Auman S1 Series / Auman S3 Series / Auman Series 3
Chassis Model: BJ1128VGJEA-FK / BJ1108VFJEA-FK / BJ1045V8JDA-FK / BJ1088VEJEA-FK / BJ1049V9JD6-A3
rear axle description: 6.0T / 320 / 4.5T / 6T / Ratio 4.875
Leaf spring count: 9/8+6 / 3/5+2 / 3/8+6 / 9/11+7,3/8+6,3/4+2 / 3/6+7，3/5+4，7/4+5，9/11+7
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: WLYWLY6TS55 / ZF6S558 / ZFZF5S328 / ZFZF6S558 / WLYWLY5G40 / WLYWLY651B
Tire
Tire Size: 9R22.5 14PR / 9.5R17.5 16PR / 7.00R16LT 8PR / 7.50R16LT 14PR / 7.00R16LT 8PR,,7.50R16LT 6PR
Number of tires: 6pcs
FAQ
What kind of truck is Henan Xinfei Henan Xinfei Foton chassis Explosives Transport Truck?
Henan Xinfei Henan Xinfei Foton chassis is an export-oriented Explosives Transport Truck lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Henan Xinfei Foton chassis Explosives Transport?
Henan Xinfei Foton chassis Explosives Transport export reference is about $16,903 – $20,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Henan Xinfei Foton chassis Explosives Transport cover?
Henan Xinfei Foton chassis Explosives Transport mainly covers: Drive: 4x2; Horsepower: 131 hp / 156 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Henan Xinfei Foton chassis Explosives Transport?
For Henan Xinfei Foton chassis Explosives Transport: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Henan Xinfei Foton chassis Explosives Transport include?
Henan Xinfei Foton chassis Explosives Transport currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Henan Xinfei Foton chassis Explosives Transport?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
