WLY WLY12G280 12-speed Manual Transmission
EXW
Export quote
WLY 12-Speed Series transmission
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| WLY WLY12G280 12-speed Manual Transmission | — | ||
| WLY WLY12AG280 12-speed Manual Transmission | — | ||
| WLY WLY12G220 12-speed Manual Transmission | — | ||
| WLY WLY12S180A 12-speed manual transmission | — | ||
| WLY WLY12S180 12-speed manual transmission | — |

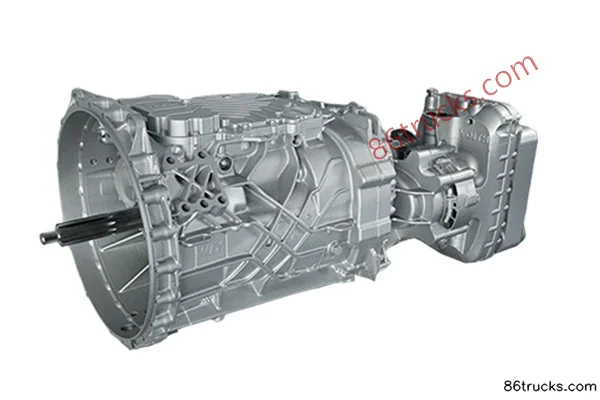

WLY WLY12AG280 12-speed Manual Transmission
EXW
Export quote

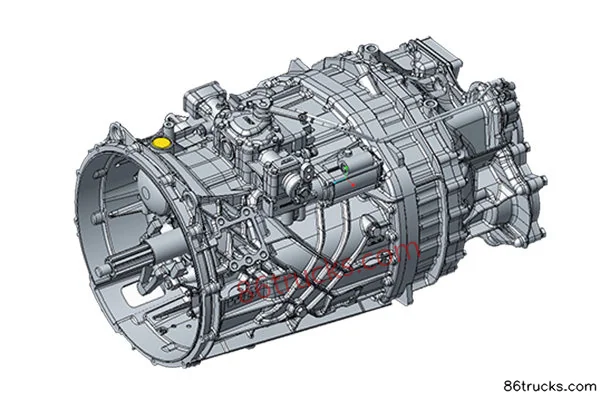

WLY WLY12G220 12-speed Manual Transmission
EXW
Export quote
WLY WLY12S180A 12-speed manual transmission
EXW
Export quote
WLY WLY12S180 12-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 12-Speed Series
Features: Main and auxiliary box pneumatic + mechanical dual interlock design / Front dual rear planetary transmission structure / Main box dual countershaft + auxiliary box planetary mechanism 6X2 driveline / Floating mounting of countershaft and gears, eliminating countershaft gear needle roller bearings; large-capacity synchronizer in auxiliary box; high-performance friction material. / Twin countershaft, full synchronizer
Max input torque: 2800 / 2200 / 1800N·m
1st gear ratio: 12.37 / 12.92 / 12.1 / 15.53 / 12.14 / 15.59
synchronizer: Yes
Main box center distance: 148.2mm
2nd gear ratio: 9.61 / 9.53 / 9.41 / 12.08 / 9.45 / 12.14
3rd gear ratio: 7.44 / 7.69 / 7.31 / 9.39 / 7.35 / 9.41
4th gear ratio: 5.78 / 5.67 / 5.71 / 7.33 / 5.73 / 7.34
5th gear ratio: 4.57 / 4.46 / 5.73 / 4.48 / 5.74
6th gear ratio: 3.57 / 3.37 / 3.48 / 4.46 / 3.49 / 4.48
7th gear ratio: 2.71 / 2.83 / 3.48 / 2.7 / 3.47
8th gear ratio: 2.11 / 2.09 / 2.71 / 2.7
Reverse Gear 1 Ratio: 10.88 / 13.1 / 11.56 / 14.86
Transmission weight: 300 / 265 / 295 / 360kg
9th gear ratio: 1.63 / 1.68 / 1.64 / 2.1 / 2.19
Transmission oil capacity: 15 / 13.5 / 14.5L
10-speed gear ratio: 1.27 / 1.24 / 1.28 / 1.64 / 1.63
11-speed gear ratio: 1 / 1.28 / 1.27
12-speed gear ratio: 0.78 / 0.74 / 1
Reverse Gear 2 Ratio: 2.38 / 9.66 / 2.59 / 3.33
Number of gears: 12Gear
shift type: Manual
Transmission Model: WLY12G280 / WLY12AG280 / WLY12G220 / WLY12S180A / WLY12S180 / WLY12S180TA / WLY12S180T
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
FAQ
What kind of truck is WLY WLY 12-Speed Series transmission?
WLY WLY 12-Speed Series is an export-oriented transmission lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does WLY 12-Speed Series transmission include?
WLY 12-Speed Series transmission currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for WLY 12-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
