JMC Classic Shunda 108 hp 4X2(6 wheels) 3.4m Double Row Flatbed Light Truck
EXW
From $12,639
Export quote
JMC Classic Shunda Light Truck Cargo Trucks
Main model photos
118 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Classic Shunda 108 hp 4X2(6 wheels) 3.4m Double Row Flatbed Light Truck | 4x2 / 109hp / China IV | From $12,639 | |
| JMC Classic Shunda 102hp 4X2(6 wheels) 2.2m double-row flatbed light truck | 4x2 / 102hp / China IV | From $11,736 | |
| JMC Classic Shunda 109hp 4X2(6 wheels) 3.4m Double Row Flatbed Light Truck | 4x2 / 109hp / China IV | From $9,972 | |
| JMC Classic Shunda 109hp 4X2(6 wheels) 4.3m Single Row Flatbed Light Truck | 4x2 / 109hp / China IV | From $9,972 | |
| JMC Classic Shunda 109hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck | 4x2 / 109hp / China IV | From $9,833 |

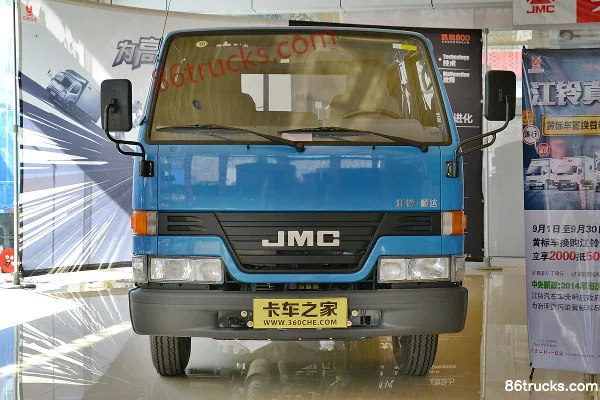

JMC Classic Shunda 102hp 4X2(6 wheels) 2.2m double-row flatbed light truck
EXW
From $11,736
Export quote
JMC Classic Shunda 109hp 4X2(6 wheels) 3.4m Double Row Flatbed Light Truck
EXW
From $9,972
Export quote
JMC Classic Shunda 109hp 4X2(6 wheels) 4.3m Single Row Flatbed Light Truck
EXW
From $9,972
Export quote
JMC Classic Shunda 109hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck
EXW
From $9,833
Export quote
Series Specs
Basic Info
Model code (announced): JX1040TSGB24 / JX1030TSA4 / JX1040TSG24 / JX1040TGC24 / JX1040TA24 / JX1040TSA4 / JX1040TA4 / JX5035XXYXA / JX5045XXYXG2 / JX5041XXYXGD2 / JX5041XXYXGA2 / JX1040TSG23 / JX1040TGA23
Type: Cargo Trucks / enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360 / 2490mm
Box length class: 3.4 / 2.2 / 4.3 / 3.1 / 4.2m
Engine Model: Nanchang JMC JX493ZLQ4 / Nanchang JMC JX493ZLQ4B / Nanchang JMC JX493ZLQ4A / Nanchang JMC JX493ZLQ3 / JMCJX493ZLQ4 / JMCJX493ZLQ4B / JMCJX493ZLQ4A / JX493ZLQ4 / JMCJX493ZLQ3
Transmission Model: JMCJC528T8 / JMCJC5MTI280L / JMCJC520T9DB / JMCJC528T6 / 5-speed transmission
Rear Axle Ratio: 6.412
Cab length: 5.955 / 4.685 / 4.82 / 5.995 / 5.96m
Cab width: 1.88 / 1.69 / 1.72 / 1.93m
Cab height: 2.16 / 2.04 / 2.14 / 2.57 / 2.75 / 2.99m
Front track width: 1385 / 1395mm
rear track: 1425 / 1375mm
Curb Weight: 2.3 / 1.76 / 2.34 / 2.2 / 2.12 / 1.88 / 1.885 / 2.47 / 2.49 / 2.33ton
Rated payload: 1.495 / 1.41 / 1.83 / 1.97 / 1.815 / 1.42 / 1.335 / 1.895 / 1.37 / 1.7 / 1.9ton
GVWR: 4.12 / 3.495 / 4.495 / 4.3 / 4.065 / 3.505 / 3.35 / 3.98ton
Max. speed: 100 / 95km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
market segment: Building materials, agricultural products / Urban Distribution
Remarks: 2013 Economy common rail / Cargo box roof sealed, non-openable. Right side of box: optional single or double door. Cab front grille optional per chassis. When hook seat is mounted on the box side panel rib, overall width is 1920mm; when mounted on the groove, overall width is 1880mm. (Reflective marking suppliers: 3M Brownwood Plant (USA), 3M China, Avery Dennison (USA), Ruifei, Tongming, Daoming; trademarks: 3M, 3M, AVERY DENNISON, Ruifei, Tongming, DM; models: 983, 983D, V-5720-7 6×6 CT, V82, TM1200, DMCT1000-01) Overall dimensions L×W×H (mm): 5995,5955×1880,1920×2990. Cargo box internal dimensions L×W×H (mm): 4260,4210×1760×1970. / Cargo box roof sealed, non-openable. Right side of box: optional single or double door. When hook seat is mounted on the box side panel rib, overall width is 1920mm; when mounted on the groove, overall width is 1880mm. Cab front grille optional per chassis. / Optional front grille; optional pit-style decorative pattern for cargo box side panels.
Front/rear suspension: 1.015/1.18m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine info: JMC493
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV / China III / Euro III
Max output power: 80 / 75 / 70 / 85kW
Max hp: 109 / 102 / 95 / 116Horsepower
Max torque: 260 / 220 / 200 / 285N·m
Max torque speed: 1800-2000 / 1800-2200 / 2000-3000 / 2100rpm
Rated speed: 3800 / 3600rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
FAQ
What kind of truck is JMC JMC Classic Shunda Light Truck Cargo Trucks?
JMC JMC Classic Shunda Light Truck is an export-oriented Cargo Trucks lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JMC Classic Shunda Light Truck Cargo Trucks?
JMC Classic Shunda Light Truck Cargo Trucks export reference is about $9,417 – $12,639. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JMC Classic Shunda Light Truck Cargo Trucks cover?
JMC Classic Shunda Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 102 hp / 109 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JMC Classic Shunda Light Truck Cargo Trucks?
For JMC Classic Shunda Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JMC Classic Shunda Light Truck Cargo Trucks include?
JMC Classic Shunda Light Truck Cargo Trucks currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JMC Classic Shunda Light Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
