Chaochai CY6102BG 110 hp 5.8L China II Diesel Engine
EXW
Export quote
Chaochai 6102 Series engine
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Chaochai CY6102BG 110 hp 5.8L China II Diesel Engine | 110hp / China II/Euro II | ||
| Chaochai CY6102BZLQ 180 hp 5.8L China II Diesel Engine | 180hp / China II/Euro II | ||
| Chaochai CY6102BZQ (High-altitude Special) 146 hp 5.8L China II Diesel Engine | 146hp / China II/Euro II | ||
| Chaochai CY6102BZQ (Energy-saving & Environmental) 163 hp 5.8L China II Diesel Engine | 163hp / China II/Euro II |

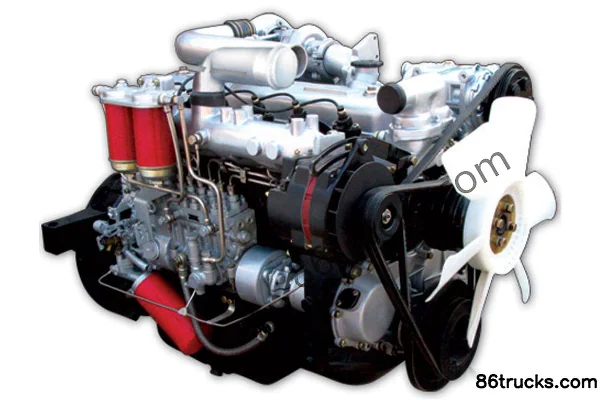

Chaochai CY6102BZLQ 180 hp 5.8L China II Diesel Engine
EXW
Export quote

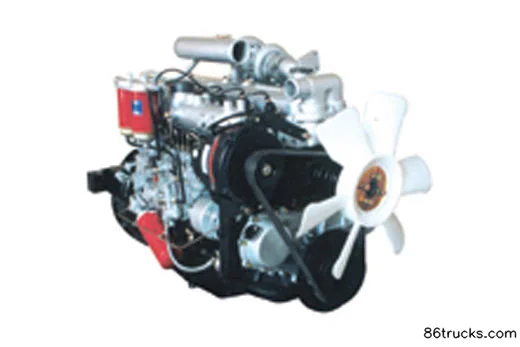

Chaochai CY6102BZQ (High-altitude Special) 146 hp 5.8L China II Diesel Engine
EXW
Export quote
Chaochai CY6102BZQ (Energy-saving & Environmental) 163 hp 5.8L China II Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 6102 series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: Widely used in 5-10 ton forklifts, mini excavators, loaders, and tractor trucks, as well as fire pumps, irrigation pumps, generator sets, etc. / This product is widely applicable to medium-tonnage cargo trucks, city buses, and luxury tour buses. / This product is widely applicable to 5-6 ton cargo trucks, 9-10 meter front-engine and rear-engine buses, tour buses, and city buses.
Intake type: Naturally aspirated / Turbocharged
Min. fuel consumption at full load: ≤231 / 555 / 207 / 204g/kW.h
Engine net weight: ≤228 / 555 / 560kg
Engine Dimensions: 1120×672×839.5 / 1209.7×662×884.5mm
Compression ratio: 17.5:1 / 17:01 / 16.5:1
Bore × Stroke: 102x118mm
firing order: 1-5-3-6-2-4
Engine Brand: Chaochai
Engine Model: CY6102BG / CY6102BZLQ / CY6102BZQ High-Altitude Special / CY6102BZQ Energy-Saving & Eco-Friendly
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.795 / 5.785L
Emission standard: China II/Euro II
Max output power: 81 / 132 / 107 / 120kW
Max hp: 110 / 180 / 146 / 163Horsepower
Max torque: 353 / 560 / 402 / 462N·m
Max torque speed: 1650 / 1400-1600 / 1600-1800 / 1800rpm
Rated speed: 2500 / 2600 / 2800rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, naturally aspirated / Exhaust turbocharger with intercooler / Vertical inline, water-cooled, 4-stroke, turbocharged
FAQ
What kind of truck is Chaochai Chaochai 6102 Series engine?
Chaochai Chaochai 6102 Series is an export-oriented engine lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chaochai 6102 Series engine cover?
Chaochai 6102 Series engine mainly covers: Horsepower: 110 hp / 146 hp / 163 hp / 180 hp; Emission: China II/Euro II; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chaochai 6102 Series engine?
For Chaochai 6102 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Chaochai 6102 Series engine include?
Chaochai 6102 Series engine currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chaochai 6102 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
