Shanghai Hino P11C-WC 352hp 10.5L China V Diesel Engine
EXW
Export quote
Shanghai Hino P11C Series engine

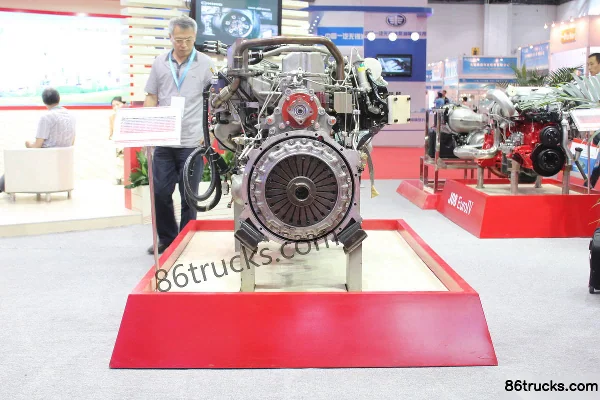

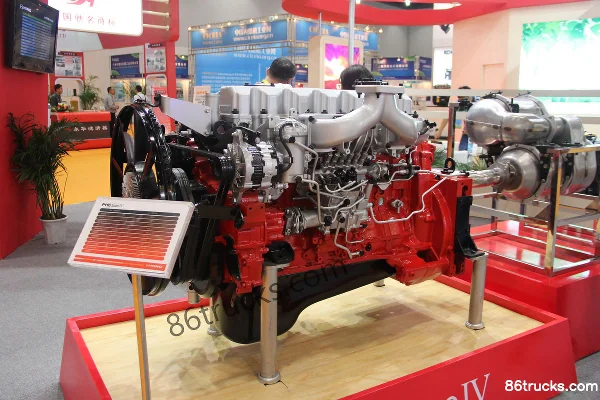

Main model photos
16 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shanghai Hino P11C-WC 352hp 10.5L China V Diesel Engine | 352hp / China V | ||
| Shanghai Hino P11C-WE 420hp 11L China V Diesel Engine | 420hp / China V | ||
| Shanghai Hino P11C-WB 325hp 11L China V Diesel Engine | 325hp / China V | ||
| Shanghai Hino P11C-WD 380 hp 11L China V Diesel Engine | 380hp / China V | ||
| Shanghai Hino P11C-VJ 325 hp 11L China IV Diesel Engine | 325hp / China IV |
Shanghai Hino P11C-WE 420hp 11L China V Diesel Engine
EXW
Export quote
Shanghai Hino P11C-WB 325hp 11L China V Diesel Engine
EXW
Export quote
Shanghai Hino P11C-WD 380 hp 11L China V Diesel Engine
EXW
Export quote
Shanghai Hino P11C-VJ 325 hp 11L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: P11C series
Engine manufacturer: Shanghai Hino Engine Co., Ltd. / Shanghai Hino
Suitable Range: 12-13.7m highway buses, 10-16m³ concrete mixer trucks, heavy tractor trucks, heavy cargo trucks, etc. / Truck engine
Intake type: Naturally aspirated / Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 195g/kW.h
Engine net weight: Approx. 1070 / 1070kg
Engine Dimensions: 1362X1018X1129 / 1362×1018×1029mm
noise at 1m: 96dB
Bore × Stroke: 122×150mm
Valves per cylinder: 4pcs
firing order: 1-5-3-6-2-4
Engine Brand: Shanghai Hino
Engine Model: P11C-WC / P11C-WE / P11C-WB / P11C-WD / P11C-VJ / P11C-VM / P11C-VL / P11C-VK / P11C-VF / P11C-VE / P11C-VD / P11C-VB / P11C-VA / P11C-UY / P11C-UR / P11C-UJ / P11C-UH / P11C-UL / P11C-UK
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.52L
Emission standard: China V / China IV / China III / Euro III / China II/Euro II
Max output power: 259 / 309 / 240 / 280 / 257kW
Max hp: 352 / 420 / 325 / 380 / 350 / 326Horsepower
Max torque: 1488 / 1765 / 1420 / 1600 / 1415 / 1595 / 1483 / 1460N·m
Max torque speed: 1100 / 1100-1600 / 1000-1600 / 1200-1600 / 1200-1500 / 1200-1300 / 1100-1300 / 1300rpm
Rated speed: 1900 / 2100rpm
Engine Type: High-pressure common rail SCR / Electronic common rail / SCR / Denso electronic common rail, turbocharged intercooled, SCR / Denso electronic common rail, turbocharged intercooled / Denso electronic common rail, turbocharged intercooled, EGR+DOC
FAQ
What kind of truck is Shanghai Hino Shanghai Hino P11C Series engine?
Shanghai Hino Shanghai Hino P11C Series is an export-oriented engine lineup with about 19 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Shanghai Hino P11C Series engine cover?
Shanghai Hino P11C Series engine mainly covers: Horsepower: 325 hp / 352 hp / 380 hp / 420 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shanghai Hino P11C Series engine?
For Shanghai Hino P11C Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Shanghai Hino P11C Series engine include?
Shanghai Hino P11C Series engine currently lists about 19 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shanghai Hino P11C Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
