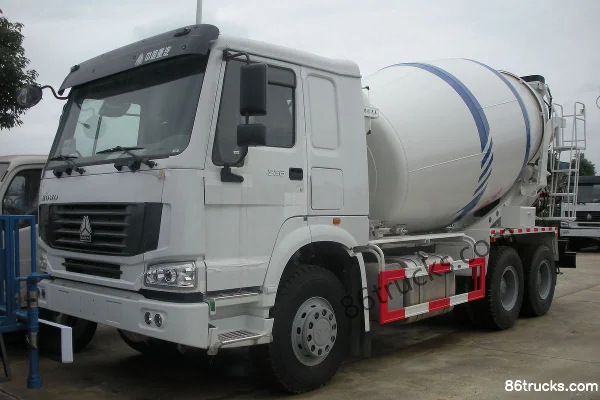

Sinotruk HOWO 336 hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand)
EXW
Export quote
Chusheng Sinotruk HOWO chassis concrete mixer truck
Main model photos
33 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO 336 hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand) | 6x4 / 336hp / China III / Euro III | ||
| Sinotruk HOWO 336 hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand) | 6x4 / 336hp / China III / Euro III |
Sinotruk HOWO 336 hp 6X4(10 wheels) Concrete Mixer Truck (Chusheng Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.9×2.5×3.99 / 9.35×2.5×3.99m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4025+1350 / 3825+1350mm
Front/rear track width: Front track: 2022mm; Rear track: 1830/1830mm
Vehicle origin: Suizhou, Hubei
Curb Weight: 13.07 / 12.87ton
Rated payload: 11.8 / 12ton
Max. speed: 85 / 90km/h
Front/rear suspension: 1.5/3.025 / 1.5/2.875m
Body Parameters
Water tank capacity: 500L
Slump: 40.23mm
Drum rotation speed: 6-12r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7 / 0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: CSC5257GJBZ12 / CSC5257GJBZ
hydraulic system: Closed hydraulic circuit
Body Brand: Chusheng Brand
Others: Available with 10/12 m³ mixer drum / Available in 8/10 m³ mixer drum; side guard left-right symmetrical, cold-formed channel steel/Q235-A, threaded connection. Rear guard: cold-formed channel steel/Q235-A, welded. Rear guard section height 270mm, width 50mm, ground clearance 450mm.
Engine parameters
Engine Model: Sinotruk WD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 2200rpm
Engine Type: Inline
Chassis Specs
Chassis Model: ZZ1257N4048W / ZZ1257N3847C
Front axle description: HF9T
rear axle description: HC16T
Leaf spring count: 9/12 / 9/12,10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk HW15710
Tire
Tire Size: 12.00-20
Number of tires: 10pcs
FAQ
What kind of truck is Chusheng Chusheng Sinotruk HOWO chassis concrete mixer truck?
Chusheng Chusheng Sinotruk HOWO chassis is an export-oriented concrete mixer truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chusheng Sinotruk HOWO chassis concrete mixer truck cover?
Chusheng Sinotruk HOWO chassis concrete mixer truck mainly covers: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng Sinotruk HOWO chassis concrete mixer truck?
For Chusheng Sinotruk HOWO chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Chusheng Sinotruk HOWO chassis concrete mixer truck include?
Chusheng Sinotruk HOWO chassis concrete mixer truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng Sinotruk HOWO chassis concrete mixer truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
