FAW Jiefang Qingdao Long V 220 hp 4X2(6 wheels) Water Sprinkler Truck (Xinhuachi Brand)
EXW
From $31,944
Export quote
Xinhuachi FAW Jiefang Qingdao Chassis water
Main model photos
9 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Long V 220 hp 4X2(6 wheels) Water Sprinkler Truck (Xinhuachi Brand) | 4x2 / 220hp / China VI | From $31,944 | |
| FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Xinhuachi Brand) | 4x2 / 180hp / China V | From $19,028 | |
| FAW Jiefang Qingdao HanV 260 hp 6X4(10 wheels) Water Sprinkler Truck (Xinhuachi Brand) | 6x4 / 260hp / China V | From $36,806 |
FAW Jiefang Qingdao Long V 180 hp 4X2(6 wheels) Water Sprinkler Truck (Xinhuachi Brand)
EXW
From $19,028
Export quote

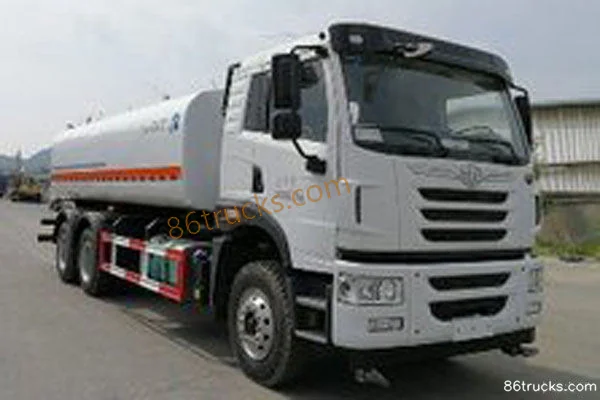

FAW Jiefang Qingdao HanV 260 hp 6X4(10 wheels) Water Sprinkler Truck (Xinhuachi Brand)
EXW
From $36,806
Export quote
Series Specs
Basic Info
Cab dimensions: 8.412×2.51×2.91 / 8.512×2.49×2.95 / 10.015×2.49×2.96m
Truck Type: Water Sprinkler Truck
Drive type: 4X2 / 6X4
Vehicle origin: Xinbin, Liaoning
Wheelbase: 4500 / 4725+1350mm
Front track width: 1922 / 1800;1914 / 1964mm
rear track: 1860 / 1800;1860 / 1847/1847mm
Curb Weight: 7.1 / 6.5 / 10.7ton
Rated payload: 10.705 / 9.305 / 14.17ton
Max. speed: 89 / 98 / 103km/h
Front/rear suspension: 1.332/2.58 / 1.332/2.68 / 1.38/2.56m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 5.2×2.3×1.4 / 5.11×2.16×1.34 / 6×2.4×1.48m
Vehicle certification code: THD5184GSSC6 / THD5162GSSC5 / THD5250GSSC5
Body Brand: Xinhuachi Brand / Xinhuachi
Engine parameters
Engine Model: WeichaiWP4.6NQ220E61 / XichaiCA4DLD-18E5 / XichaiCA6DL1-26E5
Number of cylinders: 4 / 6cylinder
Displacement: 4.6 / 4.4 / 7.7L
Emission standard: China VI / China V
Max output power: 162 / 134 / 195kW
Max hp: 220 / 180 / 260Horsepower
Rated speed: 2300 / 2500rpm
Cargo box parameters
Box volume: 11.24 / 9.77 / 14.8m³
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Long V / HanV
Chassis Model: CA1180PK15BE6A81 / CA1167PK2BE5A80 / CA1250P1K2L4T1BE5A80
Frame Dimensions: 237*75*(7+4) / 237*75*7 / 280*90*(8+5)mm
rear axle description: 435 upgraded stamped-welded axle / 385 improved cast axle / 435 stamped-welded axle
Axle ratio: 5.571 / 4.875
Leaf spring count: 10/10+9,7/10+3,7/7+3,3/4+3,10/7+3 / 7/10+3,7/7+3,3/4+3 / 8/10,12/10
Transmission Parameters
Number of gears: 6 / 8Gear
Transmission Model: FAWCA6TBX085M / FAWCA6TBX075M / Fast Gear8JS118
Tire
Tire Size: 10.00R20 18PR / 9.00R20 / 11.00R20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Xinhuachi Xinhuachi FAW Jiefang Qingdao Chassis water sprinkler truck?
Xinhuachi Xinhuachi FAW Jiefang Qingdao Chassis is an export-oriented water sprinkler truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Xinhuachi FAW Jiefang Qingdao Chassis water?
Xinhuachi FAW Jiefang Qingdao Chassis water export reference is about $19,028 – $36,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Xinhuachi FAW Jiefang Qingdao Chassis water cover?
Xinhuachi FAW Jiefang Qingdao Chassis water mainly covers: Drive: 4x2 / 6x4; Horsepower: 180 hp / 220 hp / 260 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xinhuachi FAW Jiefang Qingdao Chassis water?
For Xinhuachi FAW Jiefang Qingdao Chassis water: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Xinhuachi FAW Jiefang Qingdao Chassis water include?
Xinhuachi FAW Jiefang Qingdao Chassis water currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xinhuachi FAW Jiefang Qingdao Chassis water?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
