GAC Gonow Caiyun 500 Series Deluxe 2.5L Diesel 4WD Double Cab Pickup (China IV)
EXW
Export quote

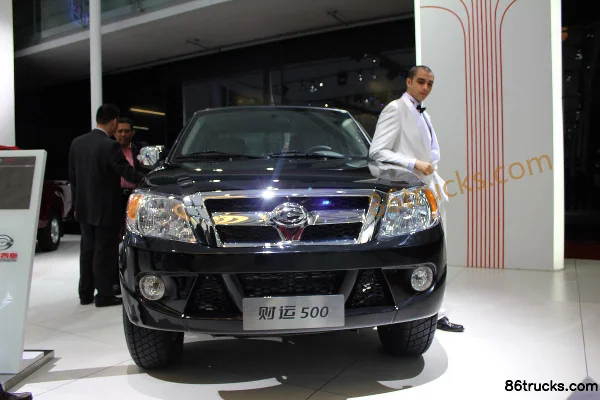

GAC Gonow Caiyun 500 pickup truck
Main model photos
40 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| GAC Gonow Caiyun 500 Series Deluxe 2.5L Diesel 4WD Double Cab Pickup (China IV) | 4WD / 100hp / China IV | ||
| GAC Gonow Caiyun 500 Series Deluxe 2.5L Diesel Double Row Pickup Truck (China IV) | 2WD / 100hp / China IV | ||
| GAC Gonow Caiyun 500 Series Long Wheelbase 2.2L Gasoline Pickup Truck | 100hp / China III / Euro III | ||
| GAC Gonow Caiyun 500 Series Standard 2.8L Diesel Pickup Truck | 95hp / China III / Euro III | ||
| GAC Gonow Caijin 500 Series 2.8L Diesel Double Cab Pickup | 2WD / 95hp / China III / Euro III |
GAC Gonow Caiyun 500 Series Deluxe 2.5L Diesel Double Row Pickup Truck (China IV)
EXW
Export quote

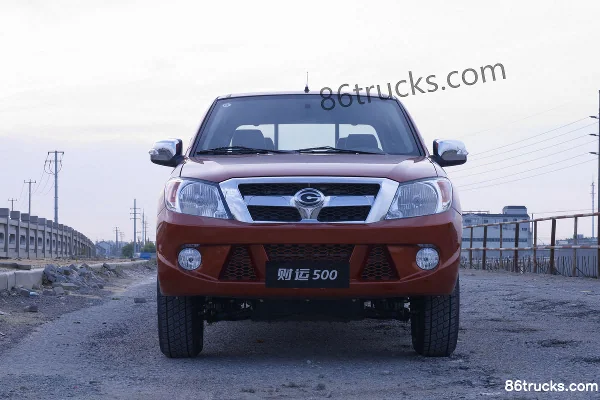

GAC Gonow Caiyun 500 Series Long Wheelbase 2.2L Gasoline Pickup Truck
EXW
Export quote
GAC Gonow Caiyun 500 Series Standard 2.8L Diesel Pickup Truck
EXW
Export quote
GAC Gonow Caijin 500 Series 2.8L Diesel Double Cab Pickup
EXW
Export quote
Series Specs
Basic Info
Model code (announced): GA1021CTE3A / GA1020E4/BAD-41 / GA1020CRE3A/JAD-35 / GA1020CRE3A / GA1020LCRE3A / GA1020E3 / GA1020E3A
Drive type: 4WD / 2WD
Min. turning diameter: 12m
Front/rear track width: 1445/1430 / Front track: 1445, Rear track: 1430mm
Wheelbase: 3025 / 3380mm
Cab length: 5.08 / 5.525 / 5.155 / 5.04m
Cab width: 1.725 / 1.69m
Cab height: 1.73 / 1.71m
Approach/departure angle: 28/18°
Min ground clearance: 185cm
Curb Weight: 1.67 / 1.58 / 1.61 / 1.48 / 1.52ton
Fuel tank capacity: 60 / 55L
Rated payload: 0.48 / 0.5ton
GVWR: 2.495 / 2.405 / 2.435 / 1.47 / 2.345ton
Max. speed: 120km/h
Origin: Hangzhou / Zhejiang / Guangdong
Model Year: 2009 Model
Remarks: This vehicle can be equipped with 3 types of front bumpers and front lights, combined with 3 types of rear lights to form 3 fixed exterior configurations, with no cross-matching. / This vehicle offers 3 optional front bumpers and front lamps / This vehicle is not equipped with OBD system / Overall dimensions (L×W×H) also available: 5.255,5.08,5.04X1.725X1.73m. Internal cargo box dimensions (L×W×H) also available: 1.48,1.39X1.435X0.44,0.48m, Front/rear overhang: 0.94/1.29, 0.84/1.29, 0.9/1.215
Front/rear suspension: 0.81/1.245 / 0.840/1.305 / 0.840/1.215 / 0.84/1.29 / 0.94/1.29m
Version: Luxury / Extended Type / Standard / Fortune Type / Xinchai Shenhao Luxury
Energy Type: Diesel / gasoline
Engine parameters
Engine Model: GAC GonowGA4D25TCI / GAC GonowGA491QEB / GAC GonowGA4D28TC / GAC GonowGA4D28TDI / Huayuan Laidong / FotonBJ491EQ3 / GAC GonowGA491QE
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.5 / 2.2 / 2.8 / 2.3L
Emission standard: China IV / China III / Euro III
Max output power: 75 / 76 / 70 / 66kW
Max hp: 100 / 95 / 103 / 90 / 102Horsepower
Max torque: 265 / 190 / 225 / 206 / 193N·m
Max torque speed: 1800-2400 / 2200-2800 / 1600-2600 / 2200 / 2600rpm
Rated speed: 3600 / 4600 / 4800 / 4200-4600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed manual / 5-speed
Chassis Specs
Front axle suspension type: Double wishbone torsion bar independent suspension / Double-acting telescopic shock absorbers, double wishbone torsion bar spring independent suspension
rear axle suspension type: Leaf spring non-independent suspension / Double-acting telescopic shock absorbers, leaf spring non-independent suspension
power steering type: hydraulic power steering
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.48m
Cargo box width: 1.47m
FAQ
What kind of truck is GAC Gonow GAC Gonow Caiyun 500 pickup truck?
GAC Gonow GAC Gonow Caiyun 500 is an export-oriented pickup truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for GAC Gonow Caiyun 500 pickup truck?
GAC Gonow Caiyun 500 pickup truck export reference is about $8,444 – $11,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does GAC Gonow Caiyun 500 pickup truck cover?
GAC Gonow Caiyun 500 pickup truck mainly covers: Drive: 2WD / 4WD; Horsepower: 95 hp / 100 hp; Emission: China III / Euro III / China IV; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in GAC Gonow Caiyun 500 pickup truck?
For GAC Gonow Caiyun 500 pickup truck, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is pickup truck typically used for?
For pickup truck, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does GAC Gonow Caiyun 500 pickup truck include?
GAC Gonow Caiyun 500 pickup truck currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for GAC Gonow Caiyun 500 pickup truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
