CA12TAX250
EXW
Export quote
FAW Jiefang CA12TA(X) Series transmission
Main model photos
34 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| CA12TAX250 | — | ||
| CA12TAX230 | — | ||
| CA12TAX260 | — | ||
| FAW Jiefang CA12TA300A 12-Speed Automatic Transmission | — | ||
| FAW Jiefang CA12TAX265A 12-Speed Automatic Transmission | — |
CA12TAX230
EXW
Export quote
CA12TAX260
EXW
Export quote
FAW Jiefang CA12TA300A 12-Speed Automatic Transmission
EXW
Export quote

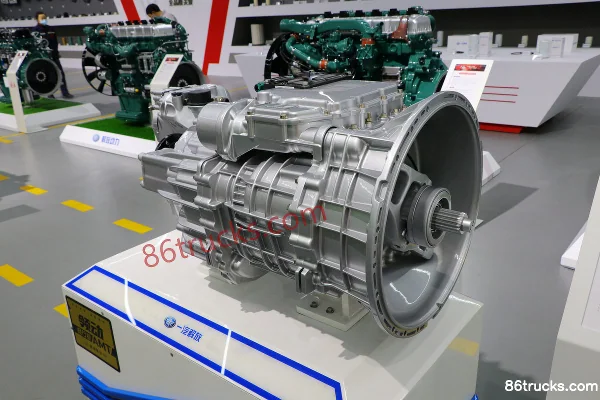

FAW Jiefang CA12TAX265A 12-Speed Automatic Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: FAW Jiefang / FAW Jiefang Jie
Transmission series: CA12TA(X) series / FAW CA12TA(X) series
Features: FAW has developed a 12-speed dual countershaft full aluminum housing torque-enhanced transmission to meet the lightweight, high torque, and long life demands of the heavy truck market. It is also equipped with a parallel hydraulic retarder, achieving an international advanced level with a B10 life of 1.5 million km. It offers smooth and comfortable operation, safe and economical running, making it a truly high-quality transmission product. / FAW has developed a 12-speed transmission with a parallel hydraulic retarder to meet the driving safety needs of users on special road conditions such as high speed, heavy load, slopes, and mountain roads. It provides auxiliary braking function, reduces the frequency of service brake use, shortens braking distance, and improves overall vehicle safety. / FAW has developed a 12-speed dual countershaft full aluminum housing full synchronizer transmission to meet the lightweight, high torque, and long life demands of the heavy truck market. It can also be matched with a parallel hydraulic retarder, achieving an international advanced level with a B10 life of 1.5 million km. It offers smooth and comfortable operation, safe and economical running, making it a high-quality transmission product. / FAW has developed a 12-speed dual countershaft full aluminum housing torque-enhanced transmission to meet the lightweight, high torque, and long life demands of the heavy truck market. It has a B10 life of 1.5 million km and oil change interval of 100,000 km, making it a high-quality heavy-duty transmission product. / This transmission is a torque-upgraded product developed by FAW based on the CA12TAX210M transmission to meet heavy truck market demands. It still adopts the mature twin countershaft main and auxiliary box design, cast iron split upper and lower housing, increased auxiliary box center distance, standard active lubrication, dual-valve pneumatic control, and fully upgraded auxiliary box. / FAW has developed a 12-speed dual countershaft full aluminum housing transmission CA12TAX210M3 for the lightweight demand of the heavy truck market to enhance the market competitiveness of the company and products. It has three series with maximum input torque of 1600 Nm, 1900 Nm, and 2100 Nm respectively, available in direct drive and overdrive ratios, with a maximum input speed of 1900 rpm. / Based on FAW Jiefang CA10TA/CA12TA series dual countershaft main-auxiliary box combination structure / direct drive / Overdrive / FAW Group's 12-speed heavy-duty truck transmission for the heavy truck market. Twin-countershaft design with cast iron split housing; main box manual, auxiliary box pneumatic.
Matching Range: Matched with heavy-duty truck engines in the power range of 420–500 hp, widely suitable for tractor trucks and cargo trucks under various road conditions. / Matched with heavy-duty tractor, cargo, dump trucks and special-condition vehicles in the power range of 390–500 hp, widely adapted to China's current road conditions and transportation situations. / Matched with heavy-duty truck engines in the power range of 290–420 hp, widely suitable for tractor trucks and cargo trucks under various road conditions. / Matched with heavy-duty truck engines in the power range of 290–500 hp, widely suitable for tractor trucks and cargo trucks under various road conditions. / Matched with heavy-duty truck engines in the power range of 500–600 hp, widely suitable for tractor trucks, cargo trucks, and highway dump trucks under various road conditions. / Matched with heavy-duty truck engines in the power range of 420–550 hp, widely suitable for tractor trucks, cargo trucks, and highway dump trucks under various road conditions. / Matched with heavy-duty tractor, cargo, dump trucks and special-condition vehicles in the power range of 390–500 hp, widely adapted to China's current road conditions and transportation situations / Matched with heavy-duty truck engines in the power range of 290–420 hp, widely suitable for tractor trucks, cargo trucks, and highway dump trucks under various road conditions / This transmission matches heavy-duty truck engines with a power range of 420-500 hp, widely suitable for tractor trucks, cargo trucks, and highway dump trucks under various road conditions. / This transmission matches heavy-duty truck engines in the 390-500 hp range, widely used for tractor trucks, cargo trucks, and highway dump trucks under various road conditions. / This transmission uses heavy-duty truck engines with a power range of 330-420 hp, widely adaptable to tractor trucks, highway dump trucks, and cargo trucks under various road conditions. / Suitable for heavy-duty tractor trucks, dump trucks, and cargo trucks in the 300–460 hp power range, widely adapted to current road conditions and transport needs in China.
Max input torque: 2600 / 2700 / 2300 / 1600 / 1900 / 2100 / 2500N·m
1st gear ratio: 15.575 / 12.189 / 15.535 / 12.158
Main box center distance: 148.18 / 148mm
2nd gear ratio: 12.036 / 9.419 / 12.086 / 9.459 / 12.055 / 9.435
synchronizer: Yes / Yes (Auxiliary box synchronizer, main box sliding gear sleeve)
3rd gear ratio: 9.389 / 7.348 / 9.414 / 7.368 / 9.39 / 7.349
4th gear ratio: 7.217 / 5.784 / 7.391 / 7.349 / 5.77
5th gear ratio: 5.718 / 4.475 / 5.704 / 4.464
Auxiliary box center distance: 165 / 156mm
6th gear ratio: 4.475 / 3.502 / 4.464 / 3.493
7th gear ratio: 3.48 / 2.724
8th gear ratio: 2.69 / 2.105 / 2.701 / 2.114
Reverse Gear 1 Ratio: 16.92 / 15.14 / 11.846 / 15.136 / 15.098 / 11.816
Transmission weight: 298 / 363 / 313 / 347 / 286 / 465 / 470 / 320 / 388 / 276 / 378 / 376kg
Transmission oil capacity: 7.5 / 15.8 / 15.6 / 18/18.5 (with PTO) / 18.6/19.1 (with PTO) / 17.5/18 (with PTO) / 15/15.5 (with PTO) / 15.8/16.3 (PTO) / 16/16.5 (with PTO) / 18/18.5 / 17.3/17.8 / 18/18.5 (PTO) / 18.7/19.2 / 15.8/16.3 (with PTO)L
9th gear ratio: 2.098 / 1.642 / 2.104 / 1.646
10-speed gear ratio: 1.613 / 1.293 / 1.652
11-speed gear ratio: 1.278 / 1
12-speed gear ratio: 1 / 0.783
Reverse Gear 2 Ratio: 2.647 / 3.382
Control type: Main box uses meshing collar manual shift, auxiliary box uses lock-pin synchronizer with large sync capacity and pneumatic control, shift mechanism adopts four-fork-shaft and interlock plate structure. / Main box uses lock-ring synchronizer manual shift, auxiliary box uses enlarged-capacity lock-pin synchronizer with pneumatic control.
Number of gears: 12Gear
shift type: Manual

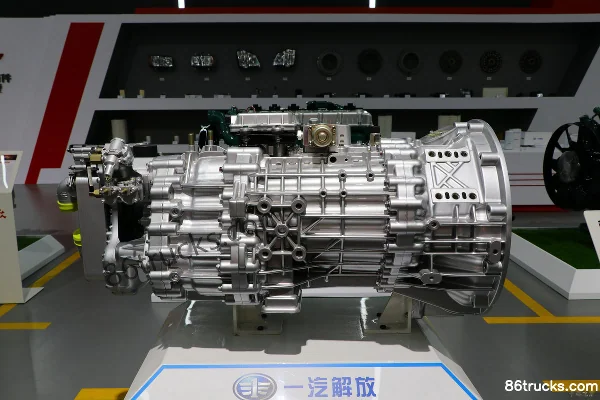

Transmission Model: CA12TAX250 / CA12TAX230 / CA12TAX260 / CA12TA300A / CA12TAX265A / CA12TA230A3 / CA12TAX260S / CA12TAX230R / CA12TA260 / CA12TAX270M3 / CA12TA230M5 / CA12TAX230M5 / CA12TAX160M5 / CA12TAX190M5 / CA12TAX210M5 / CA12TA210M5 / CA12TA190M5 / CA12TA160M5 / CA12TAX250M7 / CA12TAX260M3 / CA12TAX230M3 / CA12TAX250M3 / CA12TA230M3 / CA12TAX250M / CA12TA230M / CA12TAX190M3 / CA12TA190M3 / CA12TAX160M3 / CA12TA160M3 / CA12TA(X)230M3 / CA12TAX230M / CA12TAX210M3 / CA12TA210M3 / CA12TA210M2 / CA12TAX190M2 / CA12TA190M2 / CA12TAX160M2 / CA12TA160M2 / CA12TAX210M2 / CA12TAX210M / CA12TA210M / CA12TAX190M / CA12TA190M / CA12TAX160M / CA12TA160M
shift method: Manual / AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2 / 1pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang CA12TA(X) Series transmission?
FAW Jiefang FAW Jiefang CA12TA(X) Series is an export-oriented transmission lineup with about 45 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does FAW Jiefang CA12TA(X) Series transmission include?
FAW Jiefang CA12TA(X) Series transmission currently lists about 45 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang CA12TA(X) Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
