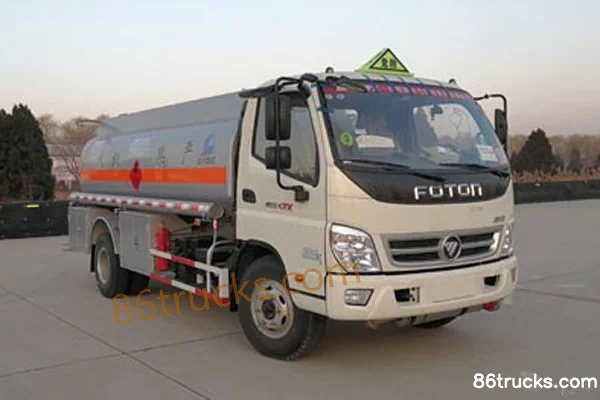

Foton Aoling Express 4X2(6 wheels) Oil Tanker (Luping Machine Brand)
EXW
From $26,111
Export quote
Luping Machine Foton Chassis fuel tanker truck
Main model photos
2 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling Express 4X2(6 wheels) Oil Tanker (Luping Machine Brand) | LPC5040GJYB6 / 115hp / China VI | From $26,111 | |
| Foton Aoling CTX 154hp 4X2(6 wheels) fuel tanker (Luping Machine Brand) | 4x2 / 154hp / China V | From $16,472 |
Foton Aoling CTX 154hp 4X2(6 wheels) fuel tanker (Luping Machine Brand)
EXW
From $16,472
Export quote
Series Specs
Basic Info
Cab dimensions: 5.62×1.87×2.22 / 6.8×2.15×2.55m
Truck Type: fuel tanker truck
Drive type: LPC5040GJYB6 / 4X2
Wheelbase: 2850 / 3800mm
Vehicle origin: Tieling, Liaoning
Front track width: 1495 / 1665mm
rear track: 1435 / 1630mm
Curb Weight: 2.705 / 4.8ton
Rated payload: 1.66 / 5ton
Max. speed: 80km/h
Front/rear suspension: 1.13/1.64 / 1.12/1.88m
Energy Type: Diesel
Body Parameters
Tank Size: 4.65×1.725×1.165m
Tank Volume: 6.3m3
Transport medium: Diesel/Kerosene/Gasoline
Medium Density: 0.83ton/cubic meter
Vehicle certification code: LPC5040GJYB6 / LPC5100GJYB5
Body Brand: Luping Machinery
Others: Density: 0.83/0.8/0.7 t/m³
Engine parameters
Engine Brand: Quanchai / Foton
Engine Model: QuanchaiQ23-115C60 / FotonISF3.8s5154
Number of cylinders: 4cylinder
Displacement: 2.3 / 3.76L
Emission standard: China VI / China V
Max output power: 85 / 115kW
Max hp: 115 / 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Engine Type: Electronically controlled high-pressure common rail
Chassis Specs
Chassis Brand: Foton Times / Foton
Chassis Series: Mini Truck Star 3 / Aoling CTX
Chassis Model: BJ1045V9JB5-54 / BJ1109VEJEA-FB
Axle ratio: 4.875
Leaf spring count: 7/7+5 / 9/11+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6TS55B / WLYWLY6T120
Tire
Tire Size: 6.50R16LT 10PR / 8.25R16,8.25R20 12PR
Number of tires: 6pcs
FAQ
What kind of truck is Luping Machine Luping Machine Foton Chassis fuel tanker truck?
Luping Machine Luping Machine Foton Chassis is an export-oriented fuel tanker truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Luping Machine Foton Chassis fuel tanker truck?
Luping Machine Foton Chassis fuel tanker truck export reference is about $16,472 – $26,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Luping Machine Foton Chassis fuel tanker truck cover?
Luping Machine Foton Chassis fuel tanker truck mainly covers: Drive: 4x2 / LPC5040GJYB6; Horsepower: 115 hp / 154 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Luping Machine Foton Chassis fuel tanker truck?
For Luping Machine Foton Chassis fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Luping Machine Foton Chassis fuel tanker truck include?
Luping Machine Foton Chassis fuel tanker truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Luping Machine Foton Chassis fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
