Qingling Isuzu 109 hp 4X2(6 wheels) Sweeper Truck (Zhonglian brand) (Electric)
EXW
Export quote
ZOOMLION Qingling chassis sweeper truck

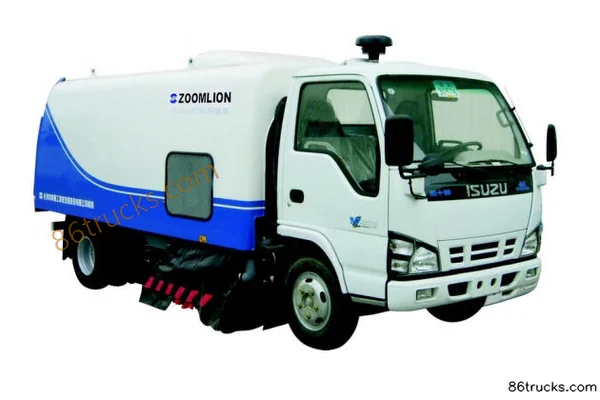

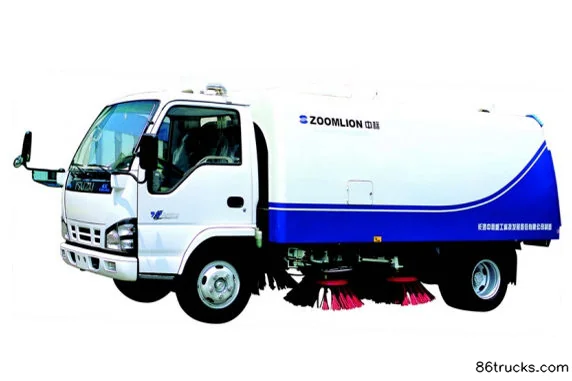

Main model photos
10 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Qingling Isuzu 109 hp 4X2(6 wheels) Sweeper Truck (Zhonglian brand) (Electric) | 4x2 | ||
| Qingling Isuzu 130hp 4X2(6 wheels) Sweeper Truck (Zoomlion) | 4x2 / 130hp / China III / Euro III | ||
| Qingling Isuzu 130hp 4X2(6 wheels) Sweeper Truck (Zoomlion) | 4x2 / 130hp / China III / Euro III |
Qingling Isuzu 130hp 4X2(6 wheels) Sweeper Truck (Zoomlion)
EXW
Export quote
Qingling Isuzu 130hp 4X2(6 wheels) Sweeper Truck (Zoomlion)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 6.325x2x2.345 / 5.69×1.99×2.445 / 5.69×2.16×2.445m
Type: sweeper truck
Drive type: 4X2
Wheelbase: 3815 / 3360mm
Front/rear track width: Front track: 1504, Rear track: 1425 / Front track: 3360; Rear track: 2230 / 7.50-15,7.50R15,7.00-16,7.00R16mm
Rated mass: 0.54 / 1.3ton
GVWR: 7.49 / 6.41 / 6.38ton
Front/rear suspension: 1.015/1.495 / 1.015/1.315m
Energy Type: Electric
Body Parameters
Other special notes: Combines suction and sweeping, dry dust removal, electro-hydraulic control, hydraulic tilting discharge for road sweeping / Max sweeping width 2.8 m
Vehicle certification code: ZLJ5072TSLBEV / ZLJ5064TSLE3 / ZLJ5065TSLE3
Body Brand: ZOOMLION
Engine parameters
Engine Model: Qingling 4KH1-TC / Qingling 4HK1-TC
Displacement: 2.999L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Cargo box parameters
Box volume: 4m³
Chassis Specs
Chassis Brand: Qingling
Chassis Series: Isuzu
Chassis Model: NKR77LLLACJAY
Leaf spring count: 8/6+5
Tire
Tire Size: 7.50-15
Number of tires: 6pcs
FAQ
What kind of truck is ZOOMLION ZOOMLION Qingling chassis sweeper truck?
ZOOMLION ZOOMLION Qingling chassis is an export-oriented sweeper truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Qingling chassis sweeper truck cover?
ZOOMLION Qingling chassis sweeper truck mainly covers: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Electric. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Qingling chassis sweeper truck?
For ZOOMLION Qingling chassis sweeper truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is sweeper truck typically used for?
sweeper truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Qingling chassis sweeper truck include?
ZOOMLION Qingling chassis sweeper truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Qingling chassis sweeper truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
