Chaochai CY4102-N4A 120 hp 3.86L China IV Natural Gas Engine
EXW
Export quote
Chaochai CY4102-N Natural Gas Series engine
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Chaochai CY4102-N4A 120 hp 3.86L China IV Natural Gas Engine | 120hp / China IV | ||
| Chaochai CY4102-N5G 86hp 3.86L China V Natural Gas Engine | 86hp / China V | ||
| ChaochaiCY4102-N5E 106hp 3.86L China V Natural Gas Engine | 106hp / China V | ||
| ChaochaiCY4102-N5D 114hp 3.86L China V Natural Gas Engine | 114hp / China V | ||
| ChaochaiCY4102-N5C 124hp 3.86L China V Natural Gas Engine | 124hp / China V |
Chaochai CY4102-N5G 86hp 3.86L China V Natural Gas Engine
EXW
Export quote
ChaochaiCY4102-N5E 106hp 3.86L China V Natural Gas Engine
EXW
Export quote

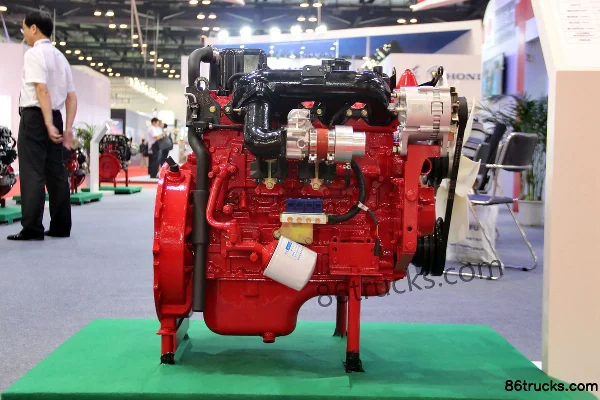

ChaochaiCY4102-N5D 114hp 3.86L China V Natural Gas Engine
EXW
Export quote
ChaochaiCY4102-N5C 124hp 3.86L China V Natural Gas Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: CY4102-N Natural Gas Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: 6-9m luxury coach, city bus, etc.
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 205 / ≤195g/kW.h
Engine net weight: 340kg
Engine Dimensions: 814×464×818 / 820x650x830mm
noise at 1m: 116dB
Compression ratio: 10:1
Bore × Stroke: 102x118mm
Valves per cylinder: 4 / 2pcs
firing order: 1-3-4-2
Engine Brand: Chaochai
Engine Model: CY4102-N4A / CY4102-N5G / CY4102-N5E / CY4102-N5D / CY4102-N5C / CY4102-N5K
Number of cylinders: 4cylinder
fuel type: Natural gas (LNG/CNG)
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV / China V
Max output power: 88 / 63 / 78 / 84 / 91 / 105kW
Max hp: 120 / 86 / 106 / 114 / 124 / 143Horsepower
Max torque: 200 / 280 / 300 / 343 / 460N·m
Max torque speed: 1300-1500 / 1800-2000 / 1400-1800rpm
Rated speed: 3200 / 2800rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged intercooled / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, CNG, LNG single fuel
FAQ
What kind of truck is Chaochai Chaochai CY4102-N Natural Gas Series engine?
Chaochai Chaochai CY4102-N Natural Gas Series is an export-oriented engine lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chaochai CY4102-N Natural Gas Series engine cover?
Chaochai CY4102-N Natural Gas Series engine mainly covers: Horsepower: 86 hp / 106 hp / 114 hp / 120 hp / 124 hp; Emission: China IV / China V; Fuel: Natural gas (LNG/CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chaochai CY4102-N Natural Gas Series engine?
For Chaochai CY4102-N Natural Gas Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Chaochai CY4102-N Natural Gas Series engine include?
Chaochai CY4102-N Natural Gas Series engine currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chaochai CY4102-N Natural Gas Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
