Sinotruk Sitrak C7H 440 hp 8X4(12 wheels) 9.5m Refrigerated Truck
EXW
Export quote
Sitrak SITRAK C7H heavy truck Refrigerated Truck
Main model photos
721 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Sitrak C7H 440 hp 8X4(12 wheels) 9.5m Refrigerated Truck | 8x4 / 440hp / China V | ||
| Sinotruk Sitrak C7H 280 hp 8X4(12 wheels) refrigerated truck | 8x4 / 280hp / China IV |

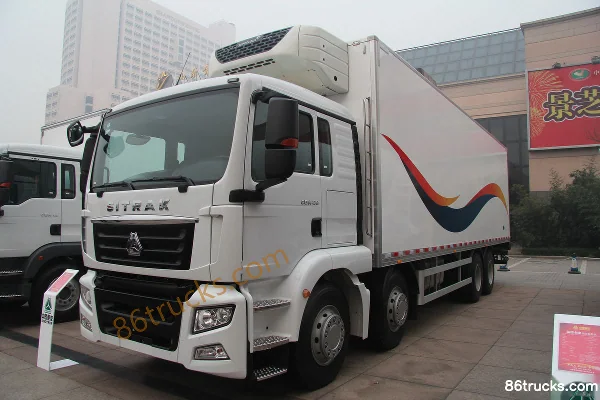

Sinotruk Sitrak C7H 280 hp 8X4(12 wheels) refrigerated truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.6×3.98 / 11.995×2.5×3.995m
Drive type: 8X4
Truck Type: Refrigerated Truck
Wheelbase: 1950+3825+1350 / 1800+4575+1400mm
Vehicle origin: Jinan, Shandong
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 13.6ton
Rated payload: 18.27ton
Max. speed: 101km/h
Front/rear suspension: 1.475/2.525m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: SinotrukMC11.44-50 / SinotrukMC07.28-40
Number of cylinders: 6cylinder
Displacement: 10.518 / 6.87L
Emission standard: China V / China IV
Max output power: 324 / 203kW
Max hp: 440 / 280Horsepower
Max torque: 2100 / 1100N·m
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.45m
Cargo box width: 2.45m
Cargo box height: 2.45m
Body Parameters
Vehicle certification code: ZZ5326XLCV466HE1
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK C7H
Chassis Model: ZZ1326V466HE1 / ZZ1316M466GD1
Axle ratio: 4.11
Leaf spring count: 4/4/-/-
Transmission Parameters
Number of gears: 16Gear
Transmission Model: ZFZF16S221 OD / ZF 9S1310TO
Tire
Tire Size: 12R22.5，295/80R22.5
Number of tires: 12pcs
FAQ
What kind of truck is Sitrak Sitrak SITRAK C7H heavy truck Refrigerated Truck?
Sitrak Sitrak SITRAK C7H heavy truck is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sitrak SITRAK C7H heavy truck Refrigerated Truck cover?
Sitrak SITRAK C7H heavy truck Refrigerated Truck mainly covers: Drive: 8x4; Horsepower: 280 hp / 440 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sitrak SITRAK C7H heavy truck Refrigerated Truck?
For Sitrak SITRAK C7H heavy truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Sitrak SITRAK C7H heavy truck Refrigerated Truck include?
Sitrak SITRAK C7H heavy truck Refrigerated Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sitrak SITRAK C7H heavy truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
