Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.67m single-row stake truck
EXW
From $11,611
Export quote
Foton Xiaoyun S1 Light Truck Cargo Trucks
Main model photos
48 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.67m single-row stake truck | 4x2 / 115hp / China VI | From $11,611 | |
| Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.25m half-row flatbed light truck | 4x2 / 115hp / China VI | From $11,472 | |
| Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.67m single-row flatbed light truck (China VI) | 4x2 / 115hp / China VI | From $11,333 |

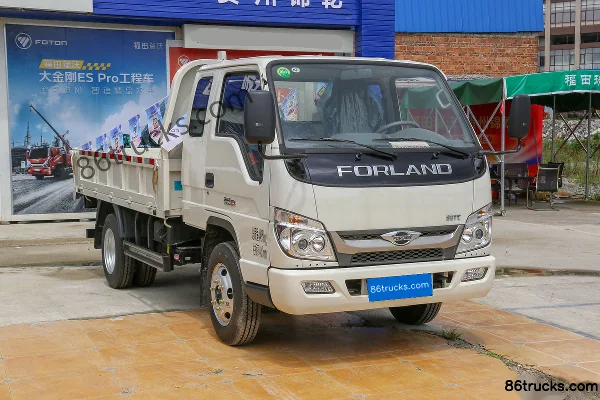

Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.25m half-row flatbed light truck
EXW
From $11,472
Export quote

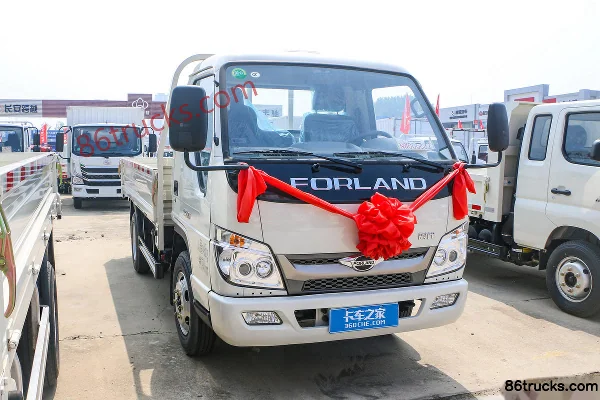

Foton Xiaoyun S1 115hp 4X2(6 wheels) 3.67m single-row flatbed light truck (China VI)
EXW
From $11,333
Export quote
Series Specs
Basic Info
Model code (announced): BJ5045CCY9JBA-57 / BJ1045V9JBA-57
Type: stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.7 / 3.2m
Engine Model: QuanchaiQ23-115E60
Transmission Model: WLY540CHF
Rear Axle Ratio: 4.333 / 4.875 / 4.33
Cab length: 5.47m
Cab width: 1.94 / 1730m
Cab height: 2.855 / 2.21m
Front track width: 1495mm
rear track: 1435mm
Curb Weight: 2.7 / 2.565ton
Rated payload: 1.665 / 1.8ton
GVWR: 4.495ton
Max. speed: 120 / 95km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.13/1.49m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type / stake body
FAQ
What kind of truck is Foton Foton Xiaoyun S1 Light Truck Cargo Trucks?
Foton Foton Xiaoyun S1 Light Truck is an export-oriented Cargo Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Xiaoyun S1 Light Truck Cargo Trucks?
Foton Xiaoyun S1 Light Truck Cargo Trucks export reference is about $11,333 – $11,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Xiaoyun S1 Light Truck Cargo Trucks cover?
Foton Xiaoyun S1 Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Xiaoyun S1 Light Truck Cargo Trucks?
For Foton Xiaoyun S1 Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Xiaoyun S1 Light Truck Cargo Trucks include?
Foton Xiaoyun S1 Light Truck Cargo Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Xiaoyun S1 Light Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
