Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Sweeper Truck (Haide Brand)
EXW
Export quote
Yantai Haide (Haide Brand) Dongfeng Commercial
Main model photos
18 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Sweeper Truck (Haide Brand) | 4x2 / 180hp / China II/Euro II | ||

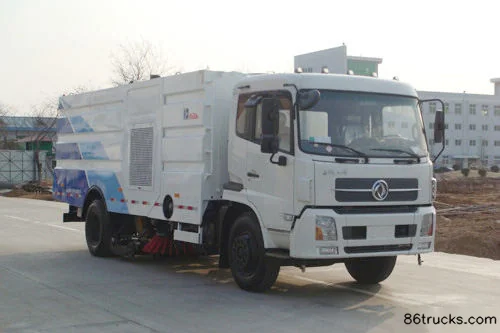

| Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) Sweeper Truck (Haide Brand) | 4x2 / 210hp / China III / Euro III | ||

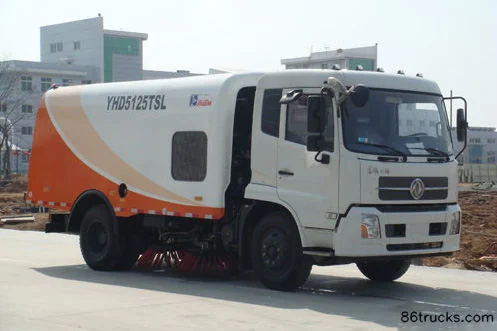

| Dongfeng Commercial Vehicle Tianjin 160 hp 4X2(6 wheels) Sweeper Truck (Haide brand) | 4x2 / 160hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Sweeper Truck (Haide brand) | 4x2 / 180hp / China III / Euro III |
Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) Sweeper Truck (Haide Brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 160 hp 4X2(6 wheels) Sweeper Truck (Haide brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Sweeper Truck (Haide brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.405X2.5X3.095 / 8.805×2.465×3.095 / 7.265×2.465×2.98 / 7.285×2.465×3m
Type: sweeper truck / Washing and sweeping truck
Drive type: 4X2
Wheelbase: 5100 / 5000 / 3650 / 3800mm
Front/rear track width: 1876/1860 / Front track: 1880mm; Rear track: 1860mm / Front track: 1880mm; Rear track: 1800mm
Rated mass: 2.945 / 4.155 / 2.88 / 2.695ton
GVWR: 16 / 12.495 / 12.49ton
Front/rear suspension: 1.43/2.375 / 1.430/2.375 / 1.43/2.035 / 1.43/2.055m
Energy Type: Diesel
Body Parameters
sweeping area: 7.5m³
Vehicle certification code: CHD5167TXSN5 / YHD5167TXS / YHD5125TSL / YHD5123TSL
Body Brand: Haide brand
Engine parameters
Engine Model: YuchaiYC4G180N-20 / Dongfeng ISDe21040 / Dongfeng ISDe16040 / Dongfeng ISDe18030
Displacement: 5.25 / 6.7 / 4.5L
Emission standard: China II/Euro II / China III / Euro III
Max output power: 132 / 155 / 118kW
Max hp: 180 / 210 / 160Horsepower
Rated speed: 2500rpm
Cargo box parameters
Box volume: 9 / 7.5 / 8m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: EQ1160GD5NJ / DFL1160BX5 / DFL1120B3 / DFL1120B1
Leaf spring count: 8/10+8 / 7/9+6
Tire
Tire Size: 10.00-20,10.00R20,9.00R20 / 10.00-20 / 8.25-20 / 9.00-20
Number of tires: 6pcs
FAQ
What kind of truck is Yantai Haide (Haide Brand) Yantai Haide (Haide Brand) Dongfeng Commercial Vehicle Chassis sweeper truck?
Yantai Haide (Haide Brand) Yantai Haide (Haide Brand) Dongfeng Commercial Vehicle Chassis is an export-oriented sweeper truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yantai Haide (Haide Brand) Dongfeng Commercial cover?
Yantai Haide (Haide Brand) Dongfeng Commercial mainly covers: Drive: 4x2; Horsepower: 160 hp / 180 hp / 210 hp; Emission: China II/Euro II / China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yantai Haide (Haide Brand) Dongfeng Commercial?
For Yantai Haide (Haide Brand) Dongfeng Commercial: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is sweeper truck typically used for?
sweeper truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Yantai Haide (Haide Brand) Dongfeng Commercial include?
Yantai Haide (Haide Brand) Dongfeng Commercial currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yantai Haide (Haide Brand) Dongfeng Commercial?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
