JAC Kaida EX5 3T 3.11m Single Row Pure Electric Flatbed Mini Truck 39.6kWh 4X2(6 wheels)
EXW
From $24,000
Export quote
JACEX5 electric cargo truck
Main model photos
116 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kaida EX5 3T 3.11m Single Row Pure Electric Flatbed Mini Truck 39.6kWh 4X2(6 wheels) | 4x2 | From $24,000 | |
| JAC Kaida EX5 3T 3.11m Single Row Pure Electric Van Mini Truck 39.6kWh 4X2(6 wheels) | 4x2 | From $25,111 | |
| JAC Kaida EX5 3T 3.11m Single Row Pure Electric Van Mini Truck 38.64kWh 4X2(6 wheels) | 4x2 | From $25,806 | |
| JAC Kaida EX5 2.85T 3.11m single-row pure electric van micro truck 39.6kWh 4X2(6 wheels) | 4x2 | From $25,111 | |
| JAC Kaida EX5 2.85T 3.11m Single Row Electric Flatbed Micro Truck 39.6kWh 4X2(6 wheels) | 4x2 | From $24,000 |
JAC Kaida EX5 3T 3.11m Single Row Pure Electric Van Mini Truck 39.6kWh 4X2(6 wheels)
EXW
From $25,111
Export quote
JAC Kaida EX5 3T 3.11m Single Row Pure Electric Van Mini Truck 38.64kWh 4X2(6 wheels)
EXW
From $25,806
Export quote
JAC Kaida EX5 2.85T 3.11m single-row pure electric van micro truck 39.6kWh 4X2(6 wheels)
EXW
From $25,111
Export quote
JAC Kaida EX5 2.85T 3.11m Single Row Electric Flatbed Micro Truck 39.6kWh 4X2(6 wheels)
EXW
From $24,000
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kaida EX5 3.5T 3.7m Single Row Pure Electric Flatbed Light Truck 55.7kWh 4X2(6 wheels) | 4x2 | From $27,750 | |
| JAC Kaida EX5 3.5T 3.7m Single Row Pure Electric Cargo Van Truck 55.7kWh 4X2(6 wheels) | 4x2 | From $28,167 | |
| JAC Kaida EX5 2.85T 3.11m Single Row Pure Electric Flatbed Mini Truck 38.64kWh 4X2(6 wheels) | 4x2 | From $24,417 | |
| JAC Kaida i3 3.2T 3.5m Single Row Pure Electric Van Micro Truck 4X2(6 wheels) | 4x2 | From $24,833 | |
| JAC Shuailing i3 3.5T 3.5m Van Electric Mini Truck 43.546kWh 4X2(6 wheels) | 4x2 | From $18,750 |
JAC Kaida EX5 3.5T 3.7m Single Row Pure Electric Flatbed Light Truck 55.7kWh 4X2(6 wheels)
EXW
From $27,750
Export quote
JAC Kaida EX5 3.5T 3.7m Single Row Pure Electric Cargo Van Truck 55.7kWh 4X2(6 wheels)
EXW
From $28,167
Export quote

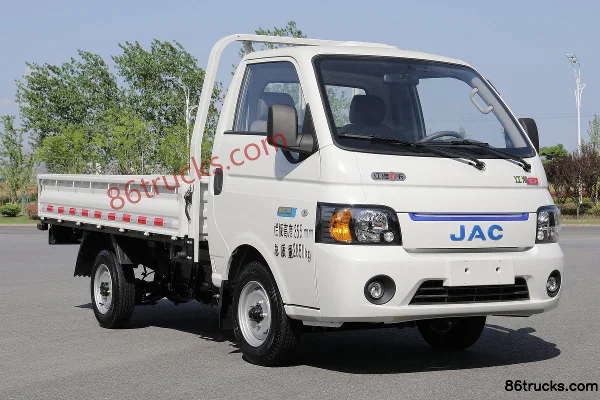

JAC Kaida EX5 2.85T 3.11m Single Row Pure Electric Flatbed Mini Truck 38.64kWh 4X2(6 wheels)
EXW
From $24,417
Export quote

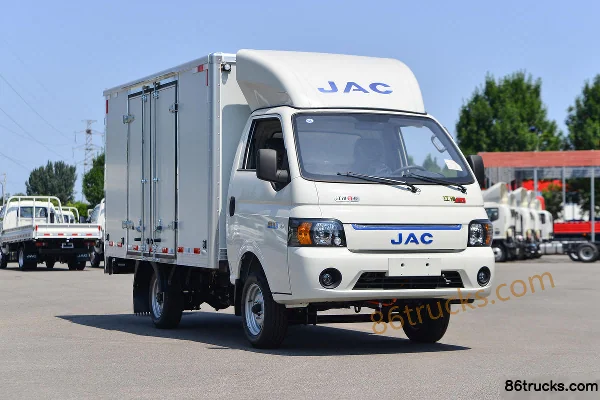

JAC Kaida i3 3.2T 3.5m Single Row Pure Electric Van Micro Truck 4X2(6 wheels)
EXW
From $24,833
Export quote
JAC Shuailing i3 3.5T 3.5m Van Electric Mini Truck 43.546kWh 4X2(6 wheels)
EXW
From $18,750
Export quote
Series Specs
Basic Info
Model code (announced): HFC1030EV3-1 / HFC5030XXYEV3-1 / HFC5030XXYEV3 / HFC1030EV3 / HFC1030EV1N / HFC5030CCYEV1N / HFC5030XXYEV2 / HFC5031XXYEV7 / HFC5031XXYEV8 / HFC1031EV5 / HFC5031XXYEV41 / HFC1031EV4 / HFC5031XXYEV3 / HFC5031XXYEV2 / HFC1031EV2 / HFC5031XXYEV1 / HFC5031XLCPV4EV1B3 / HFC5031XXYPV4EV5B3
Type: Cargo Trucks / enclosed cargo truck / stake truck / Chassis
Drive type: 4X2
Wheelbase: 2600 / 3100 / 2850mm
Box length class: 3.1 / 3.7 / 3.5m
Cab length: 5.19 / 5.18 / 5.765 / 5.57 / 5.65 / 5.605 / 5.56 / 5.165 / 5.025m
Cab width: 1.75 / 1.765 / 1.85 / 1.715/1.765 / 1.7/1.75 / 1.8 / 1.71 / 1.83 / 1.66/1.71 / 1.66 / 1.78 / 1.65 / 1.626 / 1626m
Cab height: 2.07 / 2.55 / 2.65 / 2.73 / 2.62 / 2.09 / 2.06 / 2.61 / 1.99m
CLTC range: 210 / 205 / 265 / 295 / 345 / 325 / 282 / 300 / 220 / 230 / 260km
Curb Weight: 1.53 / 1.7 / 1.735 / 1.56 / 2.05 / 2.15 / 1.79 / 2 / 2.02 / 1.98 / 1.89 / 2.07 / 2.175 / 1.975 / 1.68 / 1.58ton
Rated payload: 1.34 / 1.17 / 0.985 / 1.16 / 1.315 / 1.215 / 1.23 / 1.365 / 1.345 / 1.085 / 1.175 / 0.92 / 1.1 / 0.675 / 0.875ton
GVWR: 3 / 2.85 / 3.495 / 3.15 / 3.195 / 3.12 / 2.98ton
Max. speed: 85 / 80 / 90km/h
Origin: Hefei, Anhui / Suining, Sichuan
tonnage class: mini truck
electric motor
Motor 1 Brand: Inovance / Sichuan JAC / JAC Motors / Daoyi Power / Shanghai Electric Drive / Anhui JEE
Motor 1 Model: TZ180XS000 / TZ180XSA04 / TZ180XSJ100 / TZ220XSJHK / TZ230XS62FE / TZ220XSJH9 / TZ200XSJHC / TZ200XSJH7
Max torque: 340 / 220N·m
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 32 / 42 / 45 / 40 / 36 / 25kW
Peak power: 60 / 100 / 77 / 110 / 80 / 50kW
total rated torque: 90 / 140 / 130 / 115 / 80 / 75N·m
total peak torque: 220 / 340 / 310 / 330 / 270N·m
Electronic Control
ECU Brand: Shengtaike
Battery/Charging
Charging method: Fast Charge / Fast charge, slow charge
Battery Brand: Guoxuan High-Tech / CATL / Oupeng / Jiangxi Hengdong
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 309 / 307.2 / 163.2 / 313.6 / 316.8V
fast charge time: 1.5 / 1.8 / 2h
Battery capacity: 39.6 / 38.64 / 55.7 / 43.546 / 55.296 / 62.05 / 60.211 / 58.752 / 58.75 / 60.21 / 62 / 42.77 / 42.768 / 35.64kWh
Battery total voltage: 345.6 / 307.2 / 196 / 313.6 / 316.8V
Energy Density: 140.09 / 136.5 / 135.58 / 136.54 / 124.23 / 120.23 / 121.34 / 94.8
Battery Model: GXB3-PK-2P54S-63 / GXB3-i3-6P24S-30 / DFE1631802A0 / IFP20100140-27Ah
Slow charge time: 9.5 / 10 / 12h
Cargo box parameters
Cargo box volume: 10.72 / 9.86m³
Cargo box type: stake body / Van body / Stake type
Cargo box length: 3.11 / 3.7 / 3.5 / 3.05m
Cargo box width: 1.65 / 1.75 / 1.61/1.65 / 1.72 / 1.61 / 1.6m
Cargo box height: 0.355 / 1.65 / 1.75 / 0.35 / 1.7m
FAQ
What kind of truck is JAC JACEX5 electric cargo truck?
JAC JACEX5 is an export-oriented electric cargo truck lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACEX5 electric cargo truck?
JACEX5 electric cargo truck export reference is about $18,750 – $28,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACEX5 electric cargo truck cover?
JACEX5 electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACEX5 electric cargo truck?
For JACEX5 electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JACEX5 electric cargo truck include?
JACEX5 electric cargo truck currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACEX5 electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
