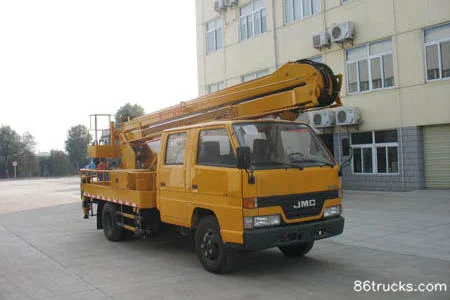

JMC Shunda 102 hp 4X2(6 wheels) Aerial Work Truck (Chusheng brand)
EXW
Export quote
Chusheng JMC chassis aerial work truck
Main model photos
20 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda 102 hp 4X2(6 wheels) Aerial Work Truck (Chusheng brand) | 4x2 / 102hp / China III / Euro III | ||
| JMC Shunda 102 hp 4X2(6 wheels) Aerial Work Truck (Chusheng brand) | 4x2 / 102hp / China III / Euro III |
JMC Shunda 102 hp 4X2(6 wheels) Aerial Work Truck (Chusheng brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.2×1.98×3.05 / 7.16×1.98×2.7m
Type: aerial work truck
Drive type: 4X2
Front/rear track width: 1385/1425mm
Wheelbase: 3360mm
Curb Weight: 5.5 / 4.76ton
GVWR: 5.825 / 5.085ton
Front/rear suspension: 1.015/2.155 / 1.015/1.715m
Body Parameters
max working radius: 14m
Max working height: 10-16m
Other special notes: Lower edge ground clearance 520mm / Lower edge ground clearance 550mm, section width 50mm
Swing Angle: 360°
Front/rear overhang: 670/- / 530/540mm
Vehicle certification code: CSC5060JGKJ / CSC5051JGKJ
Body Brand: Chusheng Brand
Engine parameters
Engine Model: JMC JX493ZLQ3A
Displacement: 2.771L
Emission standard: China III / Euro III
Max output power: 75kW
Max hp: 102Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda
Chassis Model: JX1060TSG23
Leaf spring count: 7/5+5
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Jiangchi JC528T6
Tire
Tire Size: 7.00R16LT,7.00-16LT
Number of tires: 6pcs
FAQ
What kind of truck is Chusheng Chusheng JMC chassis aerial work truck?
Chusheng Chusheng JMC chassis is an export-oriented aerial work truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chusheng JMC chassis aerial work truck cover?
Chusheng JMC chassis aerial work truck mainly covers: Drive: 4x2; Horsepower: 102 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng JMC chassis aerial work truck?
For Chusheng JMC chassis aerial work truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is aerial work truck typically used for?
aerial work truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng JMC chassis aerial work truck include?
Chusheng JMC chassis aerial work truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng JMC chassis aerial work truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
