Union Truck E220 Medium Truck 220 hp 6X2(8 wheels) 7.8m cage cargo truck
EXW
Export quote
Union Truck E-Series Heavy Truck Cargo Trucks
Main model photos
54 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck E220 Medium Truck 220 hp 6X2(8 wheels) 7.8m cage cargo truck | 6x2 / 220hp / China V | ||
| Union Truck E300 Heavy Truck 300hp 4X2(6 wheels) Car Transporter | 4x2 / 300hp / China V | ||
| Union Truck E185 Medium Truck 185hp 4X2(6 wheels) 6.75m Van Truck | 4x2 / 185hp / China V | ||
| Union Truck E185 Medium Truck 185hp 4X2(6 wheels) 6.75m Stake Truck | 4x2 / 185hp / China V | ||
| Union Truck E160 Medium Truck 160hp 4X2(6 wheels) 6.2m Stake Truck | 4x2 / 160hp / China V |

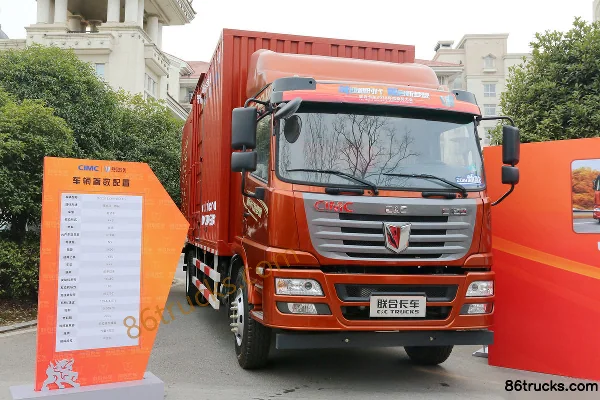

Union Truck E300 Heavy Truck 300hp 4X2(6 wheels) Car Transporter
EXW
Export quote
Union Truck E185 Medium Truck 185hp 4X2(6 wheels) 6.75m Van Truck
EXW
Export quote
Union Truck E185 Medium Truck 185hp 4X2(6 wheels) 6.75m Stake Truck
EXW
Export quote
Union Truck E160 Medium Truck 160hp 4X2(6 wheels) 6.2m Stake Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): QCC5252CCYD659N / QCC5182TCLD651Z / QCC5182XXYD651N / QCC5182CCYD651N / QCC1182D651N / QCC1252D659M / QCC5252CCYD659M / QCC1252D659N / QCC5312CCYD656M / QCC5252XXYD659M / QCC5182XXYD651M
Type: Cargo Trucks / enclosed cargo truck / stake truck
Drive type: 6X2 / 4X2 / 8X4
Wheelbase: 1800+4300 / 6800 / 5600 / 4600 / 1850+5450 / 1850+4600+1350 / 7050mm
Box length class: 7.8 / 6.8 / 6.2 / 9.6 / 9.4 / 7.7m
Engine Model: WeichaiWP6.220E50 / WeichaiWP7.300E51 / YuchaiYC4EG185-50 / YuchaiYC4EG160-50 / WeichaiWP6.180E50 / WeichaiWP7.270E51
Transmission Model: Fast Gear8JS85E-C / Fast Gear9JS119TA / Fast Gear8JS75C / Fast Gear10JSD140TB
Rear Axle Ratio: 4.44 / 4.11 / 4.875 / 4.111 / 3.909
Cab length: 10.2 / 12 / 9 / 8.55 / 10m
Cab width: 2.55m
Cab height: 3.9 / 3.95 / 3.99 / 3.05 / 3.2 / 3.45m
Front track width: 1940/1940 / 1910 / 1940 / 2040/2040 / 2040mm
rear track: 1860 / 1860/1860mm
Curb Weight: 9.105 / 11.2 / 7.815 / 6.05 / 9.44 / 9.94 / 8.405 / 12.05 / 9.05 / 10.24ton
Rated payload: 15.7 / 6.605 / 9.99 / 11.755 / 15.43 / 14.93 / 16.4 / 18.82 / 8.82 / 14.63ton
GVWR: 25 / 18 / 31ton
Max. speed: 95 / 105km/h
Origin: Wuhu, Anhui
tonnage class: Medium-duty truck / Heavy-duty cargo trucks
Approach angle: 23 / 15 / 21°
departure angle: 13 / 9 / 17 / 10 / 11°
market segment: Agricultural product transport, green channel / Agricultural product transport, logistics distribution, LTL transport / Daily industrial goods transport, agricultural and sideline products transport, green channel / Building materials, agricultural products / Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel / Express parcel, LTL / Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo / Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.45/2.65 / 1.46/3.49 / 1.45/2.55 / 1.45/2.5 / 1.46/3.24 / 1.46/2.74 / 1.45/2.95m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yuchai
Engine info: Weichai 6-cylinder / WeichaiWP7 / Yuchai 4-cylinder
Number of cylinders: 6 / 4cylinder
Cylinder arrangement: Inline
Displacement: 6.75 / 7.47 / 4.73L
Emission standard: China V
Max output power: 162 / 220 / 136 / 118 / 132 / 199kW
Max hp: 220 / 300 / 185 / 160 / 180 / 270Horsepower
Max torque: 850 / 1250 / 700 / 600 / 680 / 1160N·m
Max torque speed: 1200-1600 / 1200-1700 / 1300-1800rpm
Rated speed: 2300 / 2500rpm
Engine Type: Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled, electronic high-pressure common rail SCR / Inline 6-cylinder, electronic high-pressure common rail, SCR / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled / Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8 / 9 / 10Gear
Number of Reverse Gears: 2 / 1pcs
FAQ
What kind of truck is Union Truck Union Truck E-Series Heavy Truck Cargo Trucks?
Union Truck Union Truck E-Series Heavy Truck is an export-oriented Cargo Trucks lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Union Truck E-Series Heavy Truck Cargo Trucks?
Union Truck E-Series Heavy Truck Cargo Trucks export reference is about $33,028 – $40,250. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Union Truck E-Series Heavy Truck Cargo Trucks cover?
Union Truck E-Series Heavy Truck Cargo Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 160 hp / 185 hp / 220 hp / 300 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Union Truck E-Series Heavy Truck Cargo Trucks?
For Union Truck E-Series Heavy Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Union Truck E-Series Heavy Truck Cargo Trucks include?
Union Truck E-Series Heavy Truck Cargo Trucks currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Union Truck E-Series Heavy Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
