Auman Planet 245hp 4X2(6 wheels) Power Truck Chassis
EXW
From $24,028
Export quote
Foton Auman Planet Heavy Truck power supply truck
Main model photos
169 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Auman Planet 245hp 4X2(6 wheels) Power Truck Chassis | 4x2 / 245hp | From $24,028 | |
| Auman Planet 245hp 4X2(6 wheels) Power Truck Chassis | 4x2 / 245hp | From $24,306 | |
| Foton Auman Planet 270hp 4X2(6 wheels) power supply truck chassis | 4x2 / 270hp / China VI | From $58,333 | |
| Foton Auman Planet 350 hp 6X4(10 wheels) Power Truck Chassis | 6x4 / 350hp / China VI | From $90,278 | |
| Foton Auman Planet 270hp 4X2(6 wheels) power supply truck chassis | 4x2 / 270hp / China VI | From $62,500 |
Auman Planet 245hp 4X2(6 wheels) Power Truck Chassis
EXW
From $24,306
Export quote

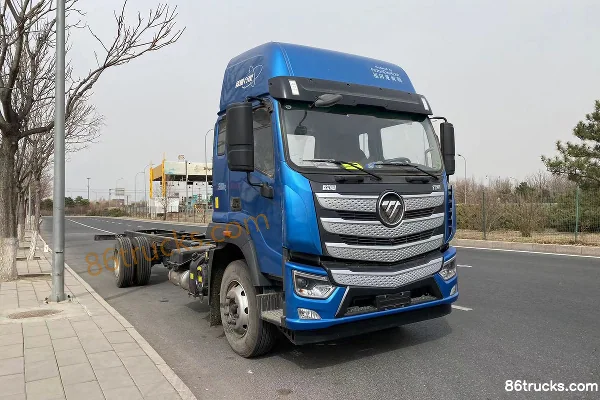

Foton Auman Planet 270hp 4X2(6 wheels) power supply truck chassis
EXW
From $58,333
Export quote
Foton Auman Planet 350 hp 6X4(10 wheels) Power Truck Chassis
EXW
From $90,278
Export quote
Foton Auman Planet 270hp 4X2(6 wheels) power supply truck chassis
EXW
From $62,500
Export quote
Series Specs
Basic Info
Cab dimensions: 9.855×2.45×2.82 / 8.04×2.46×2.81 / 8.9×2.46×3.37 / 11.675×2.495×3.015 / 10.05×2.46×3.82m
Truck Type: power supply truck
Drive type: 4X2 / 6X4
Vehicle origin: Beijing
Wheelbase: 5750 / 4500 / 5150 / 5850+1350mm
Front track width: 2008 / 1930 / 2090mm
rear track: 1860 / 1800 / 1860/1860mm
Curb Weight: 5.65 / 4.9 / 5.1 / 9.2 / 5.2ton
Max. speed: 89km/h
Remarks: 350L fuel tank, standard steering wheel, 5.143 ratio, manual mirrors, 3.5-inch segment display instrument, MP3 / 450L fuel tank, standard 2x135Ah maintenance-free batteries, multifunction steering wheel, standard rear underrun protection, daytime running lights, heated integrated rearview mirrors, air-suspension driver seat, combined heating/cooling electric A/C, cruise control, front and rear stabilizer bars, reverse radar, auto headlights, 7-inch color instrument panel, reinforced body, LED headlights, full-floating four air springs / 300L fuel tank, standard PTO left lower side, flange output, MP3
Front/rear suspension: 1.27/2.42 / 1.27/2.27 / 1.27/2.48 / 1.32/3.155 / 1.27/3.03m
Energy Type: Diesel
Engine parameters
Engine Model: YCS06245-60A / YuchaiYCS06270-60 / YuchaiYCK08350-60 / YuchaiYCS06245-60A
Number of cylinders: 6cylinder
Displacement: 6.23 / 7.7L
Emission standard: China VI
Max output power: 180 / 199 / 257kW
Max hp: 245 / 270 / 350Horsepower
Rated speed: 2300 / 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Body Parameters
Body Brand: Auman
Chassis Specs
Chassis Brand: Auman
Chassis Series: Planetary / Auman Xingxing
Chassis Model: BJ1181Y6AKS-01 / BJ1181Y6AKS-03 / BJ1181Y6AKL-01 / BJ5251JSQY6DPS-01 / BJ1181Y6ANL-01
rear axle description: 340 axle / 10T, 435 rear axle / 8T, 340 rear axle
Axle ratio: 4.33 / 5.143 / 4.875
Leaf spring count: 10/10+8 / 10/10 / 3/4+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8JS95TE / Fast Gear8JSX105TC / Fast Gear10JSD160TB / Fast Gear8JS95TE
Tire
Tire Size: 10.00R20 18PR / 275/80R22.5 18PR / 11.00R20 18PR
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Auman Foton Auman Planet Heavy Truck power supply truck?
Auman Foton Auman Planet Heavy Truck is an export-oriented power supply truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Auman Planet Heavy Truck power supply truck?
Foton Auman Planet Heavy Truck power supply truck export reference is about $24,028 – $90,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Auman Planet Heavy Truck power supply truck cover?
Foton Auman Planet Heavy Truck power supply truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 245 hp / 270 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Auman Planet Heavy Truck power supply truck?
For Foton Auman Planet Heavy Truck power supply truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is power supply truck typically used for?
power supply truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Foton Auman Planet Heavy Truck power supply truck include?
Foton Auman Planet Heavy Truck power supply truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Auman Planet Heavy Truck power supply truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
