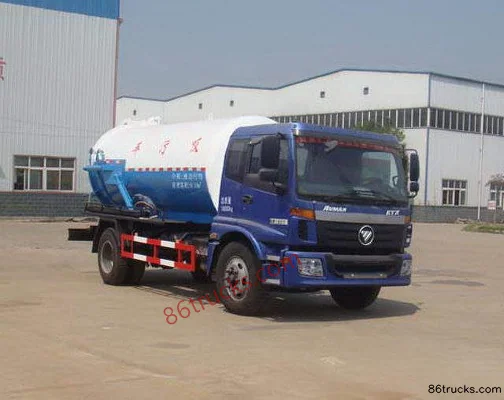

Foton AumanETX 3 Series 190 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand)
EXW
Export quote
Shenhu Foton Auman chassis suction/septic tank truck
Main model photos
20 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanETX 3 Series 190 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand) | 4x2 / 190hp / China IV | ||
| Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand) | 4x2 / 210hp / China IV | ||
| Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand) | 4x2 / 210hp / China IV | ||
| Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand) | 4x2 / 210hp / China IV |
Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand)
EXW
Export quote
Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand)
EXW
Export quote
Foton AumanETX 3 Series 210 hp 4X2(6 wheels) Vacuum Truck (Shenhu Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.9×2.5×3.25m
Type: suction sewage truck
Drive type: 4X2
Front/rear track width: Front track: 1883mm; Rear track: 1847mm / Front track: 1883; Rear track: 1847
Wheelbase: 4500mm
Rated mass: 7ton
GVWR: 16ton
Front/rear suspension: 1.365/2.035m
Energy Type: Diesel
Body Parameters
Tank Size: 4.2x1.8m
Tank Volume: 9.18m3
Transport medium: Liquid waste
Medium Density: 0.8ton/cubic meter
Vehicle certification code: HLQ5160GXWB
Body Brand: Shenhu Brand
Engine parameters
Injection System: Common Rail (China IV)
Engine Model: DongfengISB190 40 / DongfengISB210 40 / Lovol IE6D210-e4ES / DongfengISDe210 40
Displacement: 5.9 / 5.99 / 6.7L
Emission standard: China IV
Max output power: 140 / 155kW
Max hp: 190 / 210Horsepower
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: FotonAuman
Chassis Series: AumanETX
Chassis Model: BJ5163ELFHD
Frame Dimensions: 250mm
Steering gear: Domestic
rear axle description: 10T
Axle ratio: 5.143 / 6.166
Leaf spring count: 10/10+8
clutch: Φ395
Transmission Parameters
Number of gears: 6Gear
Transmission Model: DachiDC6J95TA
Cab parameters
Cab: ETX-2200 flat roof
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Shenhu Shenhu Foton Auman chassis suction/septic tank truck?
Shenhu Shenhu Foton Auman chassis is an export-oriented suction/septic tank truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Shenhu Foton Auman chassis suction/septic tank truck cover?
Shenhu Foton Auman chassis suction/septic tank truck mainly covers: Drive: 4x2; Horsepower: 190 hp / 210 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shenhu Foton Auman chassis suction/septic tank truck?
For Shenhu Foton Auman chassis suction/septic tank truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is suction/septic tank truck typically used for?
suction/septic tank truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Shenhu Foton Auman chassis suction/septic tank truck include?
Shenhu Foton Auman chassis suction/septic tank truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shenhu Foton Auman chassis suction/septic tank truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
