Foton AumanETX 168 hp 4X2(6 wheels) Flatbed Truck (Shenhu Brand)
EXW
From $24,444
Export quote

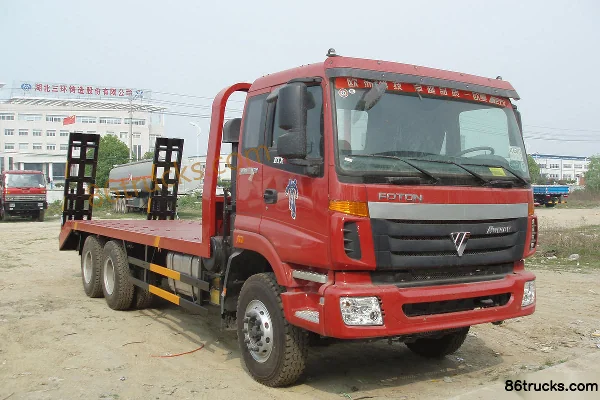

Shenhu Foton Auman chassis flatbed truck
Main model photos
20 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanETX 168 hp 4X2(6 wheels) Flatbed Truck (Shenhu Brand) | 4x2 / 168hp / China V | From $24,444 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman 336 hp 6X4(10 wheels) Flatbed Truck (Shenhu Brand) | 6x4 / 336hp / China III / Euro III | ||

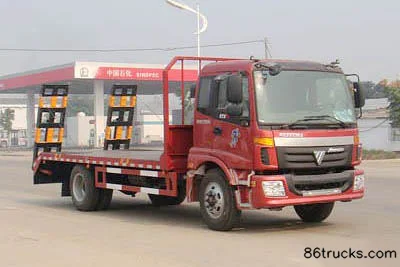

| Foton Auman 170 hp 4X2(6 wheels) Flatbed Truck (Shenhu Brand) | 4x2 / 170hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 8.65×2.5×2.9 / 10.08×2.5×3.035 / 8.935×2.5×2.9m
Type: flatbed truck
Drive type: 4X2 / 6X4
Wheelbase: 4800 / 4700+1350 / 4700mm
Rated mass: 9.15 / 14 / 8.5ton
GVWR: 15.795 / 25 / 16ton
Front/rear suspension: 1.365/2.585 / 1.532/2.498 / 1.365/2.57m
Energy Type: Diesel
Body Parameters
Other special notes: This vehicle is only used for transporting non-dismantlable objects. Side guard uses cold-formed channel steel/Q235-A, welded connection. Rear guard is integrated with the vehicle structure, replaced by vehicle components. / This vehicle is only used for transporting non-dismantlable objects. Only the CA4DF3-17E3 engine is used. Two vehicle lengths correspond to two chassis wheelbases.
Vehicle certification code: HLQ5160TPBB5 / HLQ5251TPBB / HLQ5161TPBB
Body Brand: Shenhu Brand
Engine parameters
Engine Model: FotonISF3.8s5168 / Weichai WP10.336 / Xichai CA4DF3-17E3
Displacement: 3.76 / 9.726 / 4.752L
Emission standard: China V / China III / Euro III
Max output power: 125 / 247 / 132kW
Max hp: 168 / 336 / 170Horsepower
Chassis Specs
Chassis Brand: FotonAuman
Chassis Series: AumanETX
Chassis Model: BJ1169VKPEK-A2 / BJ3253DLPJH-S / BJ5163GLFFG-S
rear axle description: 10T / 7.5T/13T / 6T/10T
Leaf spring count: 8/10+10,9/10+10,3/4+3,10/10+8 / 9/12 / 10/10+8
Transmission Parameters
Number of gears: 6 / 12 / 9Gear
Transmission Model: 6-speed / Fast Gear 12JS120T / Fast Gear 9JS119
Tire
Tire Size: 10R22.5 16PR,10.00R20 18PR / 12.00-20 16PR,12.00R20 14PR,11.00-20 16PR,11.00R20 16PR / 9.00-20,9.00R20,10.00-20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Shenhu Shenhu Foton Auman chassis flatbed truck?
Shenhu Shenhu Foton Auman chassis is an export-oriented flatbed truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Shenhu Foton Auman chassis flatbed truck?
Shenhu Foton Auman chassis flatbed truck export reference is about From $24,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Shenhu Foton Auman chassis flatbed truck cover?
Shenhu Foton Auman chassis flatbed truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 168 hp / 170 hp / 336 hp; Emission: China III / Euro III / China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Shenhu Foton Auman chassis flatbed truck?
For Shenhu Foton Auman chassis flatbed truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is flatbed truck typically used for?
flatbed truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Shenhu Foton Auman chassis flatbed truck include?
Shenhu Foton Auman chassis flatbed truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Shenhu Foton Auman chassis flatbed truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
