SHACMAN Delong X5000E 6X4(10 wheels) 6m Cab-over Battery Swap Electric Dump Truck Rongchu 284.39kWh
EXW
From $50,000
Export quote
SHACMAN Delong X5000E electric dump truck
Main model photos
131 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong X5000E 6X4(10 wheels) 6m Cab-over Battery Swap Electric Dump Truck Rongchu 284.39kWh | 6x4 | From $50,000 | |
| SHACMAN Delong X5000E 6X4(10 wheels) Electric Dump Truck 400kWh | 6x4 | ||

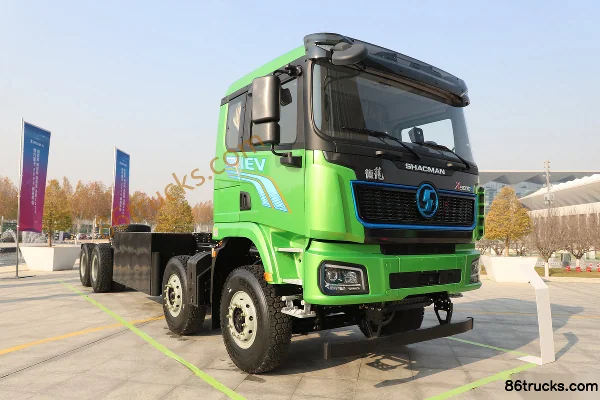

| SHACMAN Delong X5000E 8X4(12 wheels) 8m Electric Dump Truck CATL 600.92kWh | 8x4 | From $99,583 | |
| SHACMAN Delong X5000E 8X4(12 wheels) 7.8m Electric Dump Truck CATL 600.92kWh | 8x4 | From $99,583 | |

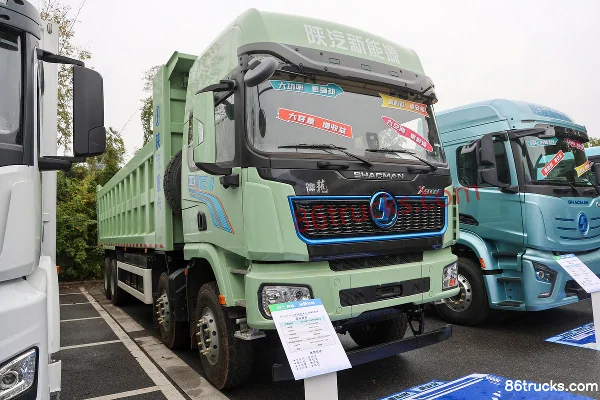

| SHACMAN Delong X5000E 8X4(12 wheels) 8.8m Electric Dump Truck CATL 400.61kWh | 8x4 | From $82,333 |
SHACMAN Delong X5000E 6X4(10 wheels) Electric Dump Truck 400kWh
EXW
Export quote
SHACMAN Delong X5000E 8X4(12 wheels) 8m Electric Dump Truck CATL 600.92kWh
EXW
From $99,583
Export quote
SHACMAN Delong X5000E 8X4(12 wheels) 7.8m Electric Dump Truck CATL 600.92kWh
EXW
From $99,583
Export quote
SHACMAN Delong X5000E 8X4(12 wheels) 8.8m Electric Dump Truck CATL 400.61kWh
EXW
From $82,333
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 8m Electric Dump Truck 422.87kWh | 8x4 | From $111,542 | |
| SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 7.8m Electric Dump Truck 422.87kWh | 8x4 | From $111,542 | |
| SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 7.4m Electric Dump Truck 422.87kWh | 8x4 | From $111,264 |
SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 8m Electric Dump Truck 422.87kWh
EXW
From $111,542
Export quote
SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 7.8m Electric Dump Truck 422.87kWh
EXW
From $111,542
Export quote
SHACMAN Delong X5000E Super Edition 31T 8X4(12 wheels) 7.4m Electric Dump Truck 422.87kWh
EXW
From $111,264
Export quote
Series Specs
Basic Info
Model code (announced): SX3257XF524SEV1 / SX3317XF506BEVC3 / SX3317XF506BEVC1 / SX3317XF506BEV1 / SX3317XF326BEVF1 / SX3317XF346BEV / SX3317XF526SEV1 / SX3317XF506BEV / SX3317XF406SEV / SX3317MF326BEV
Drive type: 6X4 / 8X4
Wheelbase: 5175+1400 / 4575+1400 / 1950+5025+1400 / 1950+4825+1400 / 1950+4225+1400 / 1950+4025+1400 / 1950+4625+1400 / 1950+3225+1400 / 1950+5225+1400 / 1800+3775+1400 / 1800+3575+1400mm
Cab length: 9.85 / 8.5 / 11.9 / 11.7 / 11.75 / 11.15 / 10.95 / 11.8 / 11.6 / 11.4 / 11.2 / 11 / 9.7 / 9.6 / 11.55 / 11.95 / 10.5 / 10.25 / 9.8m
Cab width: 2.55m
Cab height: 3.5 / 3.27m
CLTC range: 300 / 420 / 235km
Curb Weight: 19 / 23.7 / 24.4 / 22.8 / 18.8 / 17.8 / 24.5 / 23 / 20.2 / 12.57ton
Rated payload: 5.87 / 7.17 / 6.47 / 8.07 / 12.07 / 13.07 / 6.37 / 7.87 / 7.305 / 10.67 / 18.3ton
GVWR: 25 / 31ton
Max. speed: 80 / 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: SHACMAN / Zhide / Shaanxi / Zhide Auto
Motor 1 Model: TZ380XSSQ1421 / QT65TZ445SQ2561 / TZ445XSWDM2806 / TZ380XS030 / TZ380XS010
Motor Type: Permanent magnet synchronous motor
total rated power: 290 / 360 / 250kW
Peak power: 430 / 580 / 410kW
total rated torque: 1800 / 1750N·m
total peak torque: 3000 / 2800N·m
Motor 1 Peak Power: 430 / 580kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: Rongchu / CATL / FinDreams
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 284.39 / 400 / 600.92 / 400.61 / 422.87 / 281.91 / 423kWh
Transmission Parameters
Number of gears: 6 / 4Gear
shift type: AT automatic
Transmission Model: S06ADQ / H04ADQ
Cargo box parameters
Cargo box type: Dump type / Rear dump type / Rear dump / Rear-dump body
Cargo box length: 6 / 8 / 7.8 / 8.8 / 8.2 / 7.6 / 7.4 / 7.2 / 5.8 / 5.6 / 8.6 / 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: X5000E extended flat-roof raised-floor cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000 / 6500/6500kg
rear axle description: drum drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 16PR / 12.00R20 / 12.00R20 18PR / 11.00R20 18PR
FAQ
What kind of truck is SHACMAN SHACMAN Delong X5000E electric dump truck?
SHACMAN SHACMAN Delong X5000E is an export-oriented electric dump truck lineup with about 35 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong X5000E electric dump truck?
SHACMAN Delong X5000E electric dump truck export reference is about $50,000 – $111,542. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong X5000E electric dump truck cover?
SHACMAN Delong X5000E electric dump truck mainly covers: Drive: 6x4 / 8x4. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong X5000E electric dump truck?
For SHACMAN Delong X5000E electric dump truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong X5000E electric dump truck include?
SHACMAN Delong X5000E electric dump truck currently lists about 35 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong X5000E electric dump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
