JAC Blue Cat M1 7-Seat Pure Electric Multi-Purpose Passenger Vehicle 50.38kWh
EXW
From $13,792
Export quote
JAC Lanmao M1 Electric Panel Van
Main model photos
78 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Blue Cat M1 7-Seat Pure Electric Multi-Purpose Passenger Vehicle 50.38kWh | — | From $13,792 | |
| JAC Blue Cat M1 6-Seat Pure Electric Multi-Purpose Passenger Vehicle 50.38kWh | — | From $13,722 | |
| JAC Blue Cat M1 2024 Guoxuan Flagship Edition 2.7T 2-seat 4.745m pure electric van truck 38.7kWh | — | From $13,167 | |
| JAC Blue Cat M1 2024 Guoxuan Elite Edition 2.7T 2-seat 4.745m pure electric van truck 38.7kWh | — | From $12,056 | |
| JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh | — | From $17,611 |

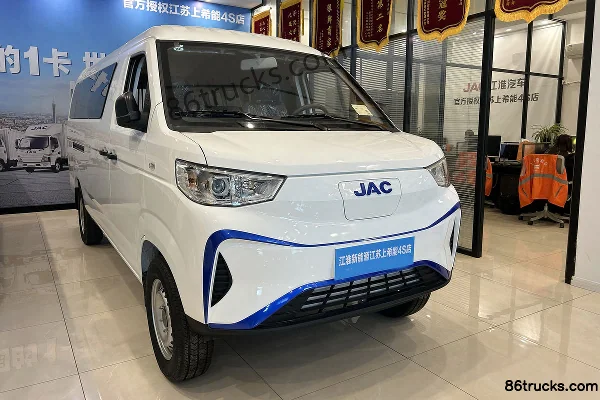

JAC Blue Cat M1 6-Seat Pure Electric Multi-Purpose Passenger Vehicle 50.38kWh
EXW
From $13,722
Export quote
JAC Blue Cat M1 2024 Guoxuan Flagship Edition 2.7T 2-seat 4.745m pure electric van truck 38.7kWh
EXW
From $13,167
Export quote

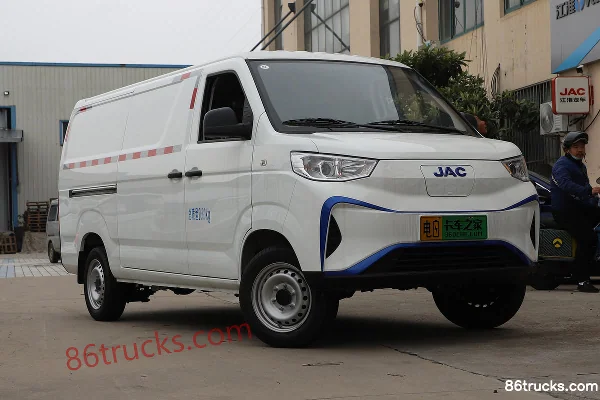

JAC Blue Cat M1 2024 Guoxuan Elite Edition 2.7T 2-seat 4.745m pure electric van truck 38.7kWh
EXW
From $12,056
Export quote
JAC Lanmao M1 2023 Guoxuan Flagship Edition 2.7T 2-Seat 4.745m Pure Electric Van Truck 40.55kWh
EXW
From $17,611
Export quote
Series Specs
Basic Info
Model code (announced): HFC6525EV1W / HFC5030XXYEV1W / HFC5030XXYEV1W-1 / HFC5030XXYEV5W / HFC5030XXYEV2W
Wheelbase: 3250 / 3050mm
Cab length: 5.15 / 4.745m
Cab width: 1.76m
Cab height: 2.085 / 1.965m
CLTC range: 310 / 260 / 276km
Curb Weight: 1.72 / 1.52 / 1.5 / 1.505ton
Rated payload: 1.03 / 1.5 / 1.045ton
GVWR: 2.55 / 2.68ton
Max. speed: 100 / 80km/h
Front/rear suspension: 0.71/1.19 / 0.705/0.99m
Version: Guoxuan Flagship Edition / Guoxuan Elite Edition / AVIC Flagship Edition / AVIC Elite Edition / Ningde Elite Edition / Ningde Flagship Edition / Flagship Edition
electric motor
Motor 1 Brand: Inovance / Hefei Sunshine
Motor 1 Model: TZ180XS080 / TZ180XSIN102 / TZ185XS022
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 30kW
Peak power: 80 / 60kW
total rated torque: 90N·m
total peak torque: 220N·m
Electronic Control
ECU Brand: Suzhou Inovance / Sungrow Power Supply
Battery/Charging
Battery Brand: CALB / Guoxuan High-Tech / CATL
Charging method: Fast/Slow Charging / DC fast charge, AC slow charge / Fast Charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery rated voltage: 307.2 / 309.1 / 334.9V
Battery capacity: 50.38 / 38.7 / 40.55 / 38.64 / 41.86kWh
Energy Density: 125.77 / 130.02 / 137.6
Battery Model: GXB3-WM-2P96S
Body parameters
Cargo box volume: 6
Max body depth: 2.785
Max body width: 1.595
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: enclosed van truck
Seat count: 7 / 6 / 2 / 1Seats
Door Parameters
Number of Doors: 4
side door type: Sliding side door
FAQ
What kind of truck is JAC JAC Lanmao M1 Electric Panel Van?
JAC JAC Lanmao M1 is an export-oriented Electric Panel Van lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Lanmao M1 Electric Panel Van?
JAC Lanmao M1 Electric Panel Van export reference is about $11,778 – $22,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What is Electric Panel Van typically used for?
Electric Panel Van focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JAC Lanmao M1 Electric Panel Van include?
JAC Lanmao M1 Electric Panel Van currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Lanmao M1 Electric Panel Van?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
