JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m Explosive Transport Truck (Duoshixing Brand)
EXW
From $15,111
Export quote
Duoshixing JMC Chassis Explosives Transport Truck
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.13m Explosive Transport Truck (Duoshixing Brand) | 4x2 / 116hp / China V | From $15,111 | |
| JMC JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.13m Flammable Liquid Van Transport Truck (Duoshixing Brand) | 4x2 / 116hp / China V | From $17,778 |

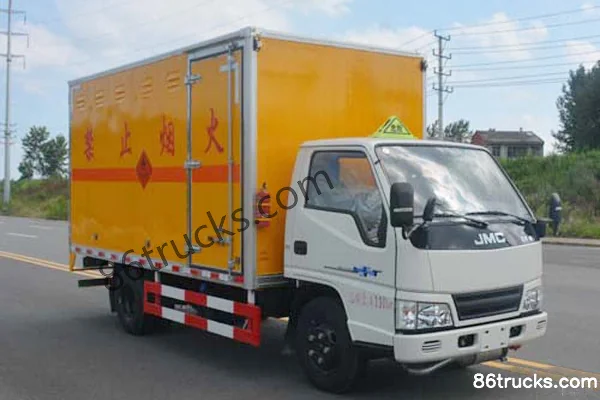

JMC JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.13m Flammable Liquid Van Transport Truck (Duoshixing Brand)
EXW
From $17,778
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.04×2.88m
Type: Explosives Transport Truck / Flammable liquid van truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front: 1385mm; Rear: 1425
Rated mass: 1.495ton
GVWR: 4.33ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×40mm
Vehicle certification code: JHW5040XQYJX / JHW5040XRYJX
Body Brand: Duoshixing brand
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.13×1.87×1.75m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body
Chassis Model: JX1041TG25
rear axle description: Qingte 4.33 / Rear axle ratio 6.142
Leaf spring count: 7/4+6,7/5+6 / 7/4+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed / Jiangchi JC528
Tire
Tire Size: 7.00R16LT 8PR,7.00R16LT 8PR,7.00R16LT 10PR / 7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is Duoshixing Duoshixing JMC Chassis Explosives Transport Truck?
Duoshixing Duoshixing JMC Chassis is an export-oriented Explosives Transport Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Duoshixing JMC Chassis Explosives Transport Truck?
Duoshixing JMC Chassis Explosives Transport Truck export reference is about $15,111 – $17,778. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Duoshixing JMC Chassis Explosives Transport Truck cover?
Duoshixing JMC Chassis Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Duoshixing JMC Chassis Explosives Transport Truck?
For Duoshixing JMC Chassis Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Duoshixing JMC Chassis Explosives Transport Truck include?
Duoshixing JMC Chassis Explosives Transport Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Duoshixing JMC Chassis Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
