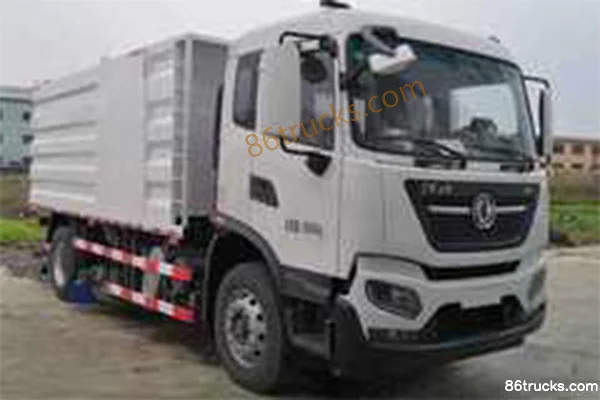

Dongfeng Commercial Vehicle Tianjin KR 185hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI)
EXW
Export quote
Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis
Main model photos
11 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin KR 185hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI) | 4x2 / 185hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 220hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI) | 4x2 / 220hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI) | 4x2 / 230hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 210hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI) | 4x2 / 210hp / China VI | ||
| Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI) | 4x2 / 230hp / China VI |
Dongfeng Commercial Vehicle Tianjin KR 220hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin KR 210hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin KR 230hp 4X2(6 wheels) Vacuum Sweeper Truck (Jiaoda Shenzhou brand)(China VI)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.77×2.49×3.21m
Type: vacuum sweeper truck
Drive type: 4X2
Wheelbase: 4500mm
Front/rear track width: Front: 1876mm; Rear: 1820
Rated mass: 7.005ton
Curb Weight: 10.8ton
Front/rear suspension: 1.4/1.87m
Body Parameters
sweeping speed: 5-25km/h
Vehicle certification code: SSZ5180TXC
Body Brand: Jiaoda Shenzhou
Engine parameters
Engine Model: DongfengD4.0NS6B185 / DongfengDDi50E220-60 / DongfengB6.2NS6B230 / DongfengB6.2NS6B210 / DongfengD6.7NS6B230 / DongfengD4.5NS6B190 / DongfengDDi50E190-60
Number of cylinders: 4 / 6cylinder
Displacement: 4 / 5 / 6.2 / 6.7 / 4.5L
Emission standard: China VI
Max output power: 136 / 162 / 169 / 154 / 140 / 147kW
Max hp: 185 / 220 / 230 / 210 / 190Horsepower
Cargo box parameters
Box volume: 7m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Tianjin KR
Chassis Model: DFH1180EX8
Leaf spring count: 7/9+6,8/10+8
Tire
Tire Size: 10.00R20 18PR,275/80R22.5 18PR
Number of tires: 6pcs
FAQ
What kind of truck is Jiaoda Shenzhou Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis vacuum sweeper truck?
Jiaoda Shenzhou Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis is an export-oriented vacuum sweeper truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis cover?
Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2; Horsepower: 185 hp / 210 hp / 220 hp / 230 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis?
For Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is vacuum sweeper truck typically used for?
vacuum sweeper truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis include?
Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiaoda Shenzhou Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
