JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Wing Van Light Truck
EXW
From $11,569
Export quote
JAC H3 light truck Cargo Trucks
Main model photos
119 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Wing Van Light Truck | 4x2 / 143hp / China VI | From $11,569 | |
| JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.8m Single Row Wing Van Light Truck | 4x2 / 143hp / China VI | From $11,431 | |
| JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Stake Truck | 4x2 / 143hp / China VI | From $11,292 | |
| JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.8m Single Row Stake Truck | 4x2 / 143hp / China VI | From $11,153 | |
| JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Van Light Truck | 4x2 / 143hp / China VI | From $11,292 |
JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.8m Single Row Wing Van Light Truck
EXW
From $11,431
Export quote
JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Stake Truck
EXW
From $11,292
Export quote
JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.8m Single Row Stake Truck
EXW
From $11,153
Export quote

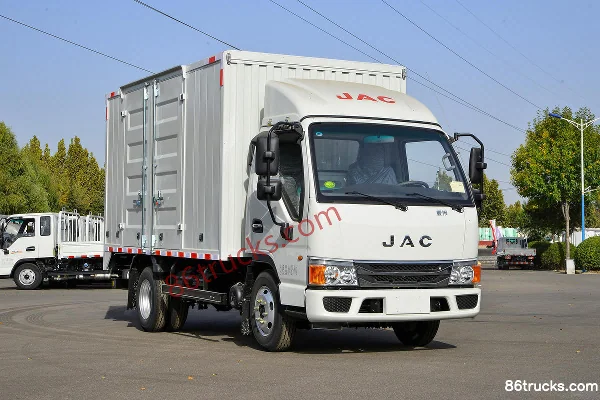

JAC H3 2.3L Diesel 143hp 4X2(6 wheels) WLY 5-Speed 3.47m Crew Cab Van Light Truck
EXW
From $11,292
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling H3 132hp 4X2(6 wheels) 3.82m semi-cab van mobile shop truck (China VI) | 4x2 / 132hp / China VI | From $11,778 | |
| JAC Kangling H3 132hp 4X2(6 wheels) 4.15m single-row van mobile shop truck (China VI) | 4x2 / 132hp / China VI | From $11,639 | |
| JAC Kangling H3 109 hp 4X2(6 wheels) 3.85m semi-row stake light truck | 4x2 / 109hp / China V | From $11,403 | |
| JAC Kangling H3 109 hp 4X2(6 wheels) 4.15m single-row stake light truck | 4x2 / 109hp / China V | From $11,125 | |
| JAC Kangling H3 109hp 4X2(6 wheels) 3.85m Single Row Flatbed Light Truck | 4x2 / 109hp / China V | From $11,403 |
JAC Kangling H3 132hp 4X2(6 wheels) 3.82m semi-cab van mobile shop truck (China VI)
EXW
From $11,778
Export quote
JAC Kangling H3 132hp 4X2(6 wheels) 4.15m single-row van mobile shop truck (China VI)
EXW
From $11,639
Export quote
JAC Kangling H3 109 hp 4X2(6 wheels) 3.85m semi-row stake light truck
EXW
From $11,403
Export quote
JAC Kangling H3 109 hp 4X2(6 wheels) 4.15m single-row stake light truck
EXW
From $11,125
Export quote
JAC Kangling H3 109hp 4X2(6 wheels) 3.85m Single Row Flatbed Light Truck
EXW
From $11,403
Export quote
Series Specs
Basic Info
Model code (announced): HFC5041XYKP23K2B4QS / HFC5041CCYP23K2B4QS / HFC5041XXYP23K2B4QS / HFC1041P23K2B4QS / HFC5041CCYP23K2B4QS-1 / HFC5041XXYP23K2B4QS-1 / HFC5041CCYP23K2B3QS / HFC1041P23K2B3QS / HFC5041XXYP23K2B3QS / HFC5041CCYB23K1C7S-1 / HFC5041CCYB23K1C7S / HFC5041XXYB23K1C7S / HFC1041B23K1C7S / HFC5041XXYP23K1B4S / HFC5041XXYP23K2C7S / HFC5041XSHP23K1C7S
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 2950 / 2600 / 3365 / 2850mm
Box length class: 3.5 / 3.8 / 2.9 / 3.2 / 4.2 / 3.4 / 3.7m
Engine Model: QuanchaiQ23A-143C60 / Yunnei PowerHFC4DF160C / Yunnei PowerD20TCIF16 / QuanchaiQ23A-142E60 / QuanchaiQ23-95E60 / QuanchaiQ23-132E60 / Q23A-143C60 / HFC4DF160C
Transmission Model: WLYWLY5TS32C / WLYWLY8GS36 / WLY 5-speed / Fast Gear 5-speed / WLYMTR535 / 5-speed gearbox / Xingrui LC5T28B / Xingrui LC5T28
Rear Axle Ratio: 4.875
Cab length: 5.58 / 5.55 / 4.99 / 5.995 / 5.475m
Cab width: 2 / 1.91 / 1.965 / 2.075 / 2.11 / 2.125 / 2.1 / 1.925 / 1695m
Cab height: 2.8 / 2.87 / 2.23 / 2.25 / 2.18 / 3.15 / 2.36 / 2.9 / 3.05m
Front track width: 1441 / 1455 / 1470mm
rear track: 1425 / 1475 / 1491 / 1395mm
Curb Weight: 2.7 / 2.62 / 2.37 / 2.5 / 2.45 / 2.21 / 2.53 / 2.72 / 2.805 / 2.565 / 2.29 / 3.62ton
Rated payload: 1.665 / 1.745 / 1.995 / 1.495 / 1.915 / 1.835 / 1.645 / 1.56 / 1.8 / 1.245 / 0.745ton
GVWR: 4.495 / 4.125 / 4.325 / 4.335 / 3.665ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 18 / 21°
departure angle: 19 / 16 / 15 / 14 / 14.5°
market segment: LTL transport / Agricultural and sideline product transport / Urban Distribution
Remarks: Optional ratio 4.33. / Optional: 4.33 ratio / Optional ratio 4.33 / Optional: 100L plastic fuel tank, 1900mm wide cargo box, checkered plate, dual battery.
Front/rear suspension: 1.1/1.53 / 1.075/1.525 / 1.125/1.545 / 1.1/1.29 / 1.1/1.525m
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai / Yunnei Power
Engine info: Quanchai2.3L / Yunnei Power2.5L / Yunnei Power2L / Yunnei 4-cylinder / Yunnei Dewei D20 / QuanchaiQ23A / De Wei D20 / QuanchaiQ23
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.3 / 2.499 / 1.999L
Emission standard: China VI
Max output power: 103 / 101 / 70 / 97kW
Max hp: 143 / 137 / 140 / 142 / 95 / 132Horsepower
Max torque: 335 / 320 / 325 / 240N·m
Max torque speed: 1600-2200 / 1100-3000 / 1400-2800 / 2000rpm
Rated speed: 3000 / 3200rpm
Engine Type: Common Rail
Transmission Parameters
Transmission Brand: WLY / Fast Gear / Xingrui
shift method: Manual
FAQ
What kind of truck is JAC JAC H3 light truck Cargo Trucks?
JAC JAC H3 light truck is an export-oriented Cargo Trucks lineup with about 75 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC H3 light truck Cargo Trucks?
JAC H3 light truck Cargo Trucks export reference is about $9,694 – $14,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC H3 light truck Cargo Trucks cover?
JAC H3 light truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 109 hp / 132 hp / 143 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC H3 light truck Cargo Trucks?
For JAC H3 light truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC H3 light truck Cargo Trucks include?
JAC H3 light truck Cargo Trucks currently lists about 75 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC H3 light truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
